AT-T050BPH-01P
AT-T050BPH-01P

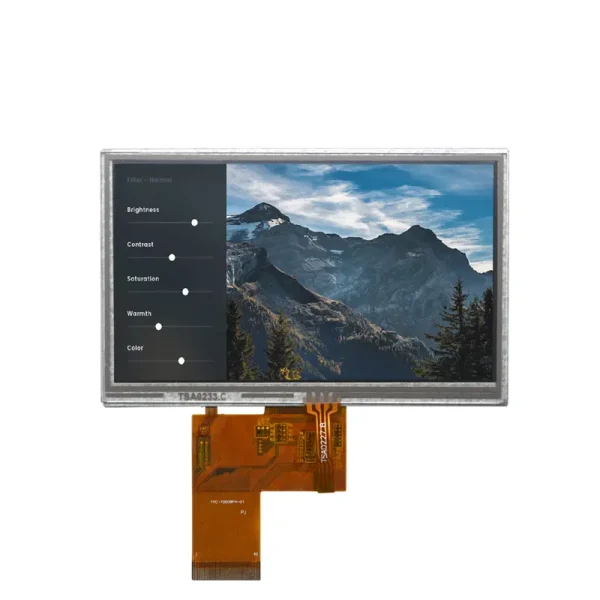

Product name: 5.0 inch TFT LCD display
Model No.: AT-T050BPH-01P
Display Type： TFT, transmissive
Viewing Direction： 12 O’clock
Interface： RGB
LCM Controller： HX8257
Operating temperature： -20~+70℃
Brightness(cd/m²)： 300 cd/m²
Touch Screen： option
Share to:
AT-T050BPH-01P is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light and RTP unit. The 5.0″ display area contains 480 x (RGB) x 272 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | 12 | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |

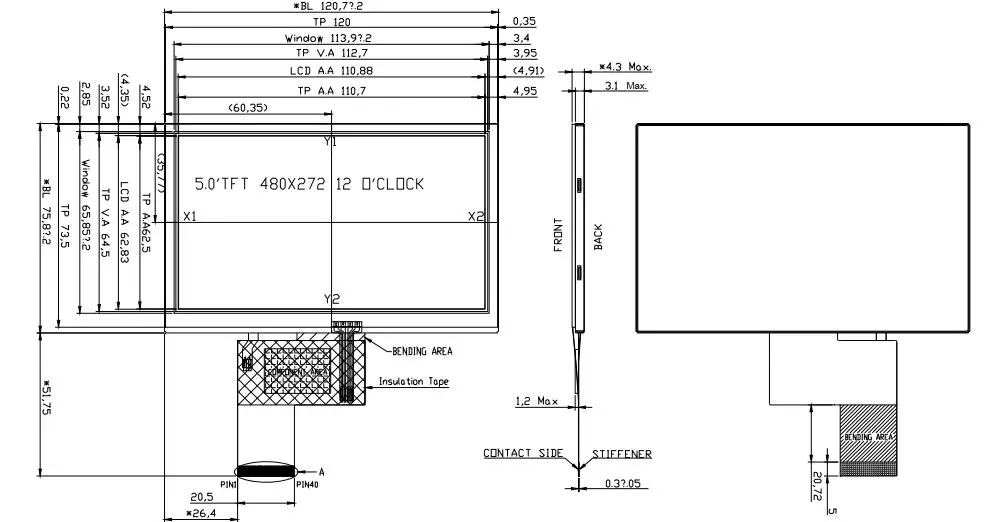

| Module size | 120.7X75.8X4.3 | mm | |
| Active Area(W×H) | 110.88(W)X62.83(H) | mm | |
| Number of Dots | 480*272 | dots | |
| LCM Controller | HX8257 | – | |
| Backlight | 12 LEDs (white) | pcs | customizable |
| Brightness | 300 | cd/m² | customizable |
| Interface | RGB | – | customizable |
| Connector | 40 | pins | customizable |
| Size | 5 |
| Resolution | 480*272 |
| Outline Size | 120.7*75.8 |
| Active Area | 110.88*62.83 |
| Driver IC | HX8257 |
| Brightness | 300 |
| Interface | RGB |
| Viewing Angle | 12:00 o’clock |
| Remark | CTP &RTP |
