Product name: 2.83inch TFT LCD display
Model No.: AT028BMIH-01A400
Display Type TFT、IPS
Viewing Direction ALL
Interface 2 MIPI
LCM Controller ST7701S
Operating temperature -20~+70℃
Brightness(cd/m²) 400cd/m²
Touch Screen Without touch screen
Share to:

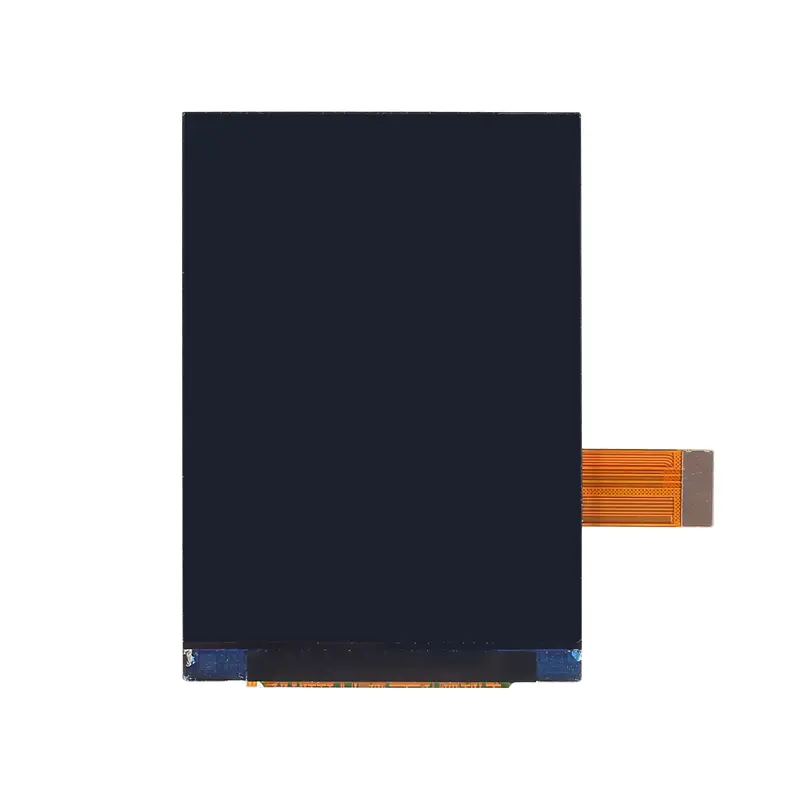

AT-T028BMIH-01A400 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light. The 2.83″ display area contains 480 x (RGB) x 640 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |

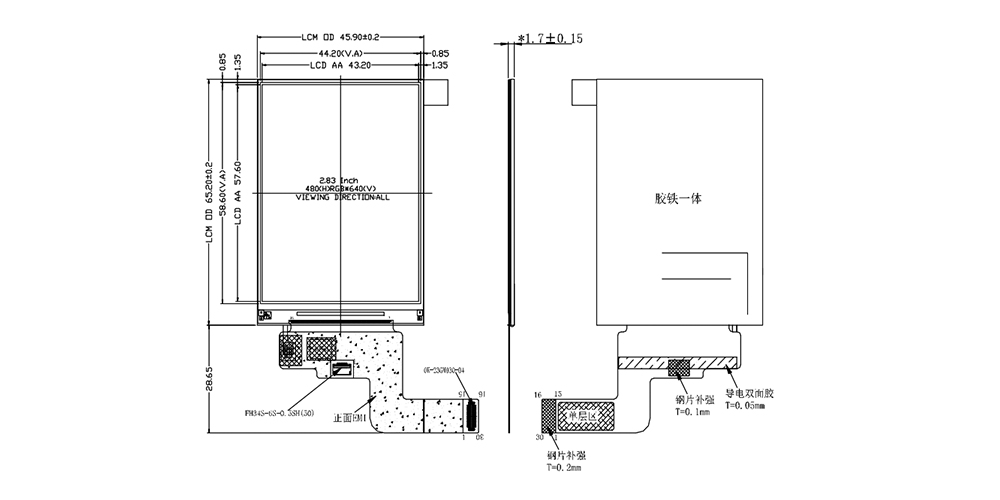

| Module size | 45.9*65.2*1.7 | mm | |
| Active Area(W×H) | 43.2*57.6 | mm | |
| Number of Dots | 480*640 | dots | |
| LCM Controller | ST7701S | – | |
| Backlight | 6-LEDs (white) | pcs | customizable |
| Brightness | 400 | cd/m² | customizable |
| Interface | 2 MIPI | – | |

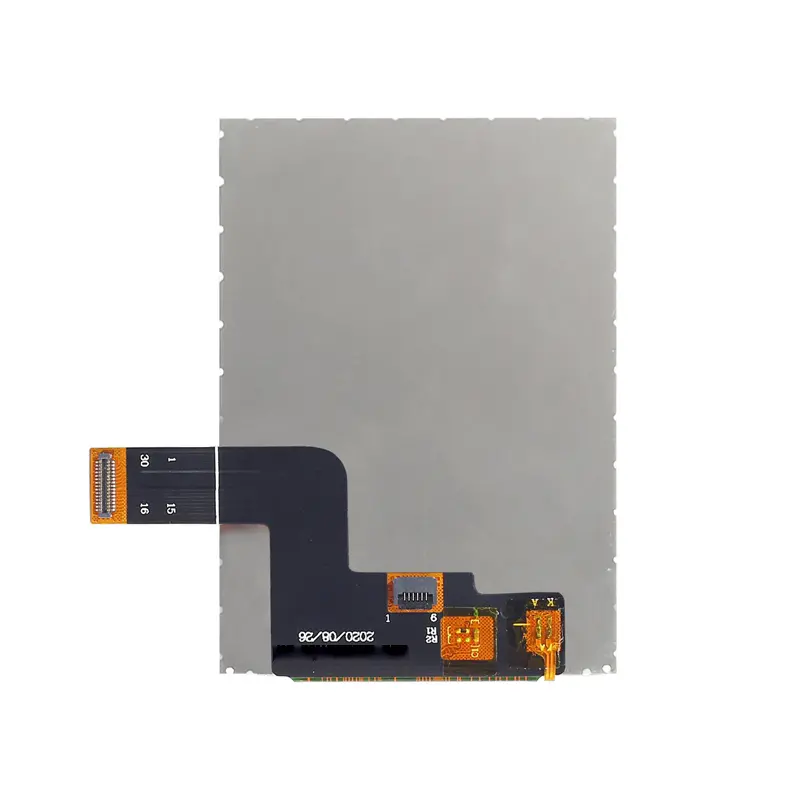

| Connector | 30 | pins | customizable |
| Size | 2.8 |
| Resolution | 480*640 |
| Outline Size | 45.9*65.2 |
| Active Area | 43.20*57.60 |
| Driver IC | ST7701S |
| Brightness | 400 |
| Interface | MIPI/RGB |
| Viewing Angle | IPS |
