Product name: 3.2 inch TFT LCD display
Model No.: AT032B9341RGB
Display Type TFT, transmissive
Viewing Direction 9 O’clock
Interface RGB
LCM Controller ILI9341
Operating temperature -20~+70℃
Brightness(cd/m²) 300 cd/m²
Touch Screen option
Share to:

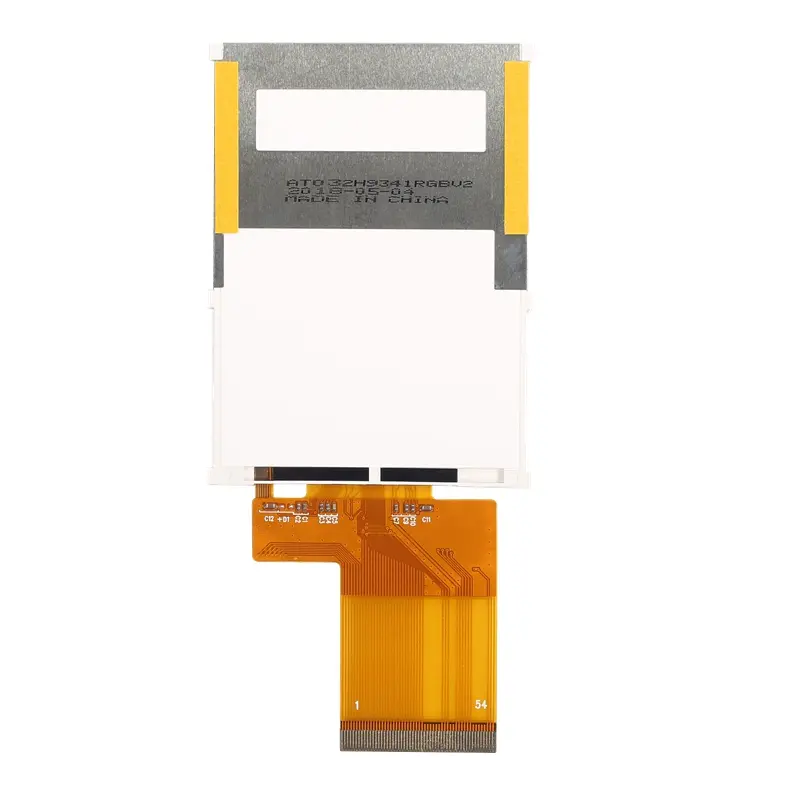

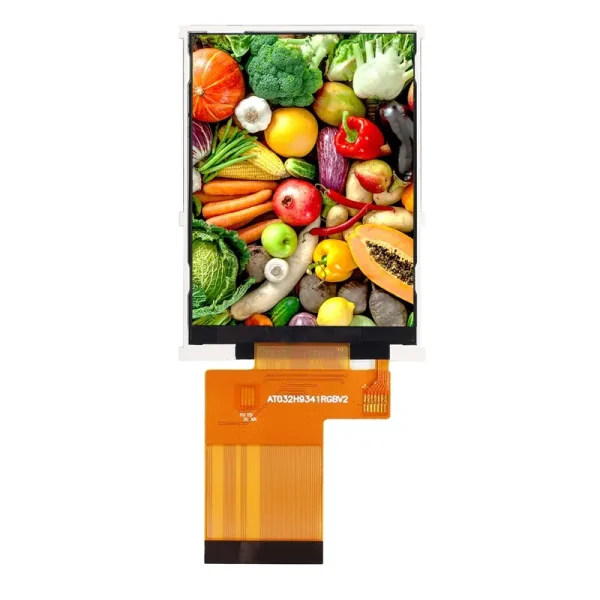

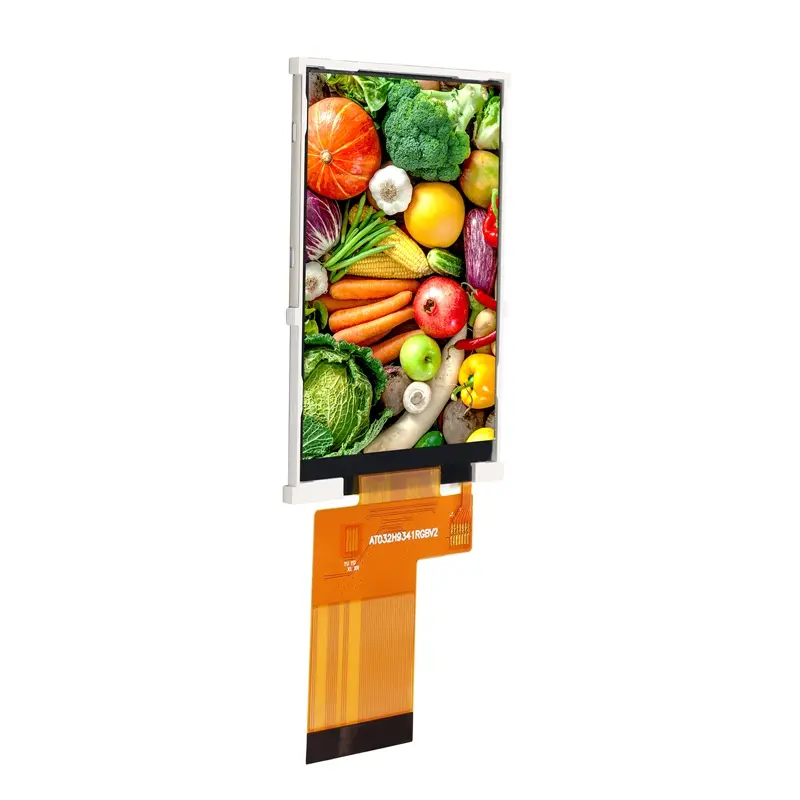

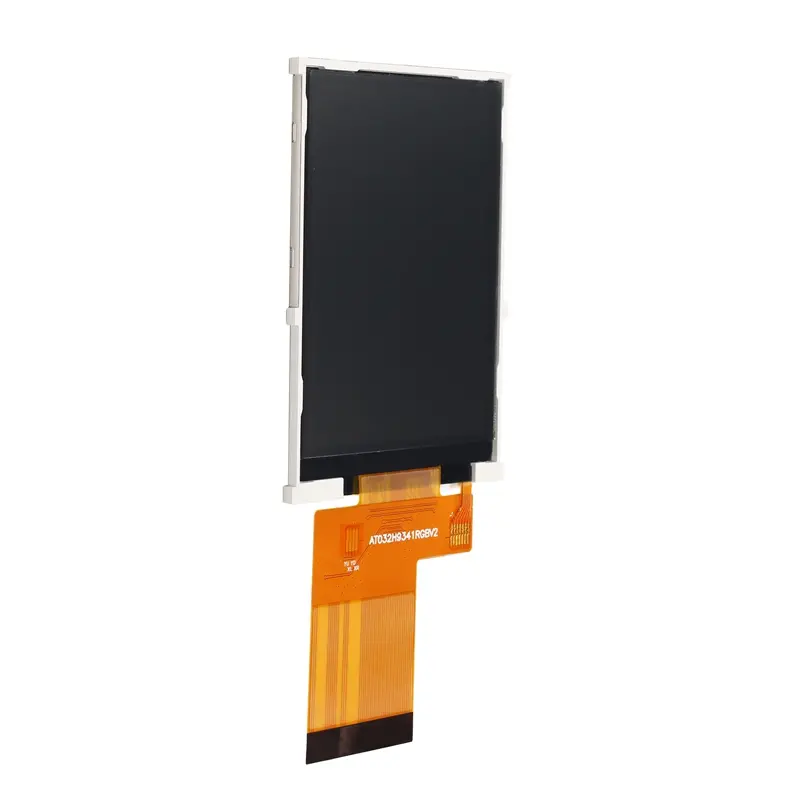

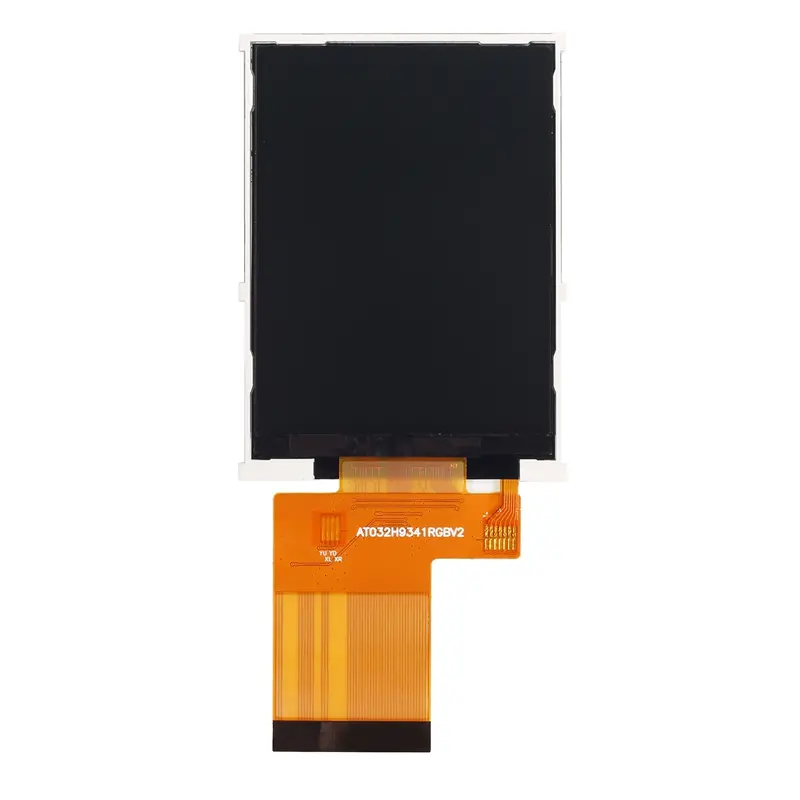

AT032B9341RGB is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight. The 3.2″ display area contains 240 x (RGB) x 320 pixels and can display up to 262K colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 262K | ||
| Viewing Direction | 9 | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |

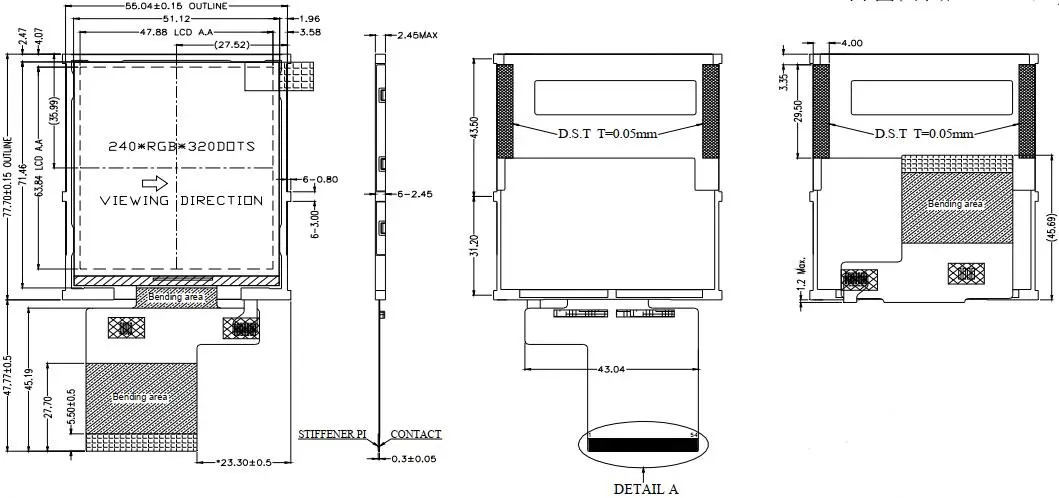

| Module size | 55.04X77.70X2.45 | mm | |
| Active Area(W×H) | 47.88(W)X63.84(H) | mm | |
| Number of Dots | 240*320 | dots | |
| LCM Controller | ILI9341V | – | |
| Backlight | 6 LEDs (white) | pcs | customizable |
| Brightness | 300 | cd/m² | customizable |
| Interface | RGB | – | |
| Connector | 54 | pins | customizable |
| Size | 3.2 |
| Resolution | 240*320 |
| Outline Size | 55.04*77.7 |
| Active Area | 47.88*63.84 |
| Driver IC | ILI9341V |
| Brightness | 330 |
| Interface | RGB |
| Viewing Angle | 9:00 o’clock |
