AT-T050HWSA-06

AT-T050HWSA-06

Product name: 5inch TFT LCD display
Model No.: AT-T050HWSA-06
Display Type: TFT, IPS
Viewing Direction: ALL
Interface: RGB
LCM Controller: ST7262
Operating temperature: -20~+70℃
Brightness(cd/m²): 1000cd/m²
Touch Screen: Option

Share to:

AT-T050HWSA-06 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,and a back light. The 5.0″ display area contains 800X480 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.

Item Contents Unit Note
LCD Type TFT
Display color 16.7M
Viewing Direction ALL O’Clock
Operating temperature -20~+70
Storage temperature -30~+80
Module size 120.70X75.8X2.85 mm
Active Area(W×H) 108(W)X64.80(H) mm
Number of Dots 800X480 dots
LCM Controller ST7262
Backlight 20 pcs customizable
Brightness 1000 cd/m² customizable
Interface RGB
Connector 40 pins customizable

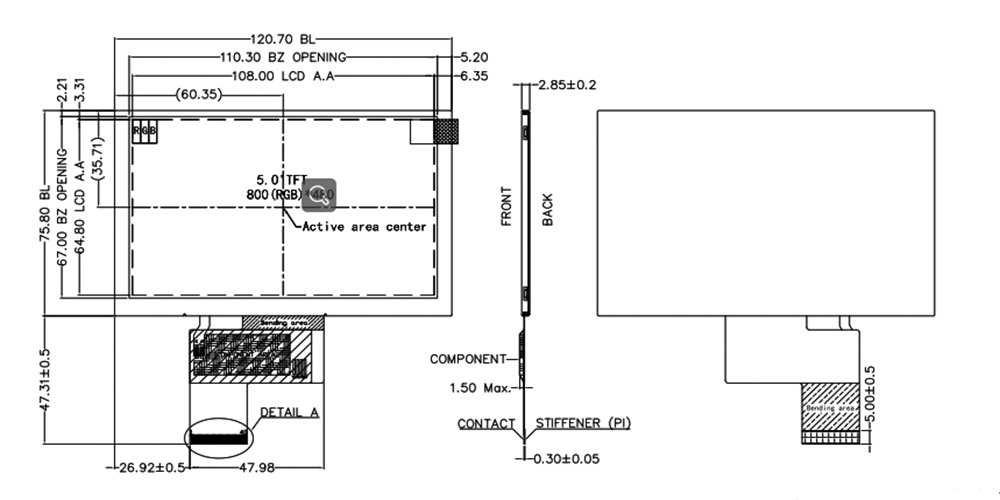

AT-T050HWSA-06图纸

Size 5
Resolution 800*480
Outline Size 120.7*75.8
Active Area 108.0*64.8
Driver IC ST7262
Brightness 1000
Interface RGB
Viewing Angle IPS
Remark CTP &RTP
