Product name: 2.4 inch TFT LCD display
Model No.: AT-T024HQI-01
Display Type TFT, transmissive
Viewing Direction ALL
Interface MCU;RGB
LCM Controller ILI9341V
Operating temperature -20~+70℃
Brightness(cd/m²) 220 cd/m²
Touch Screen option
Share to:

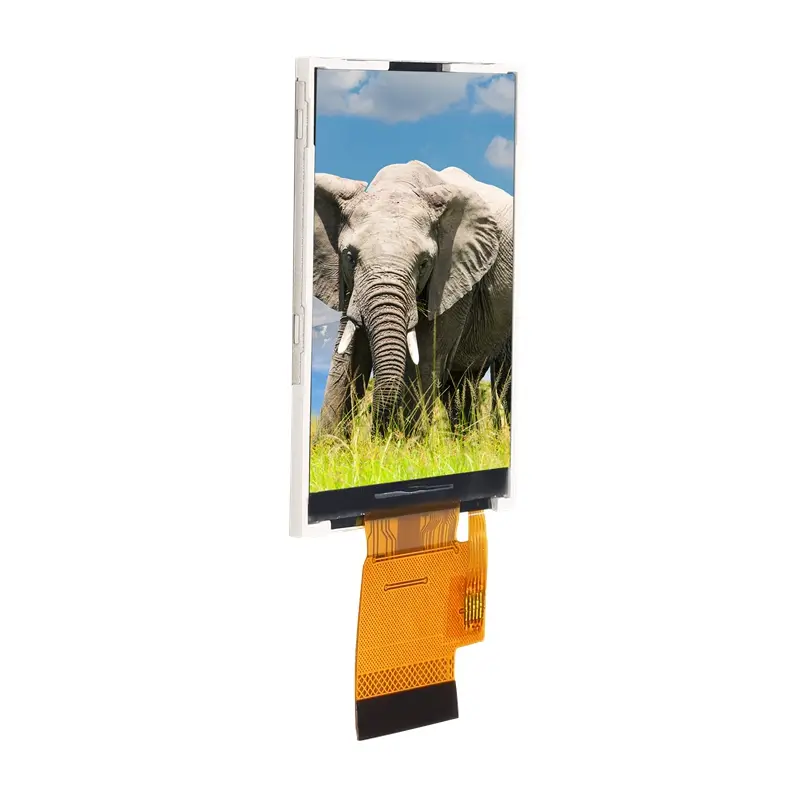

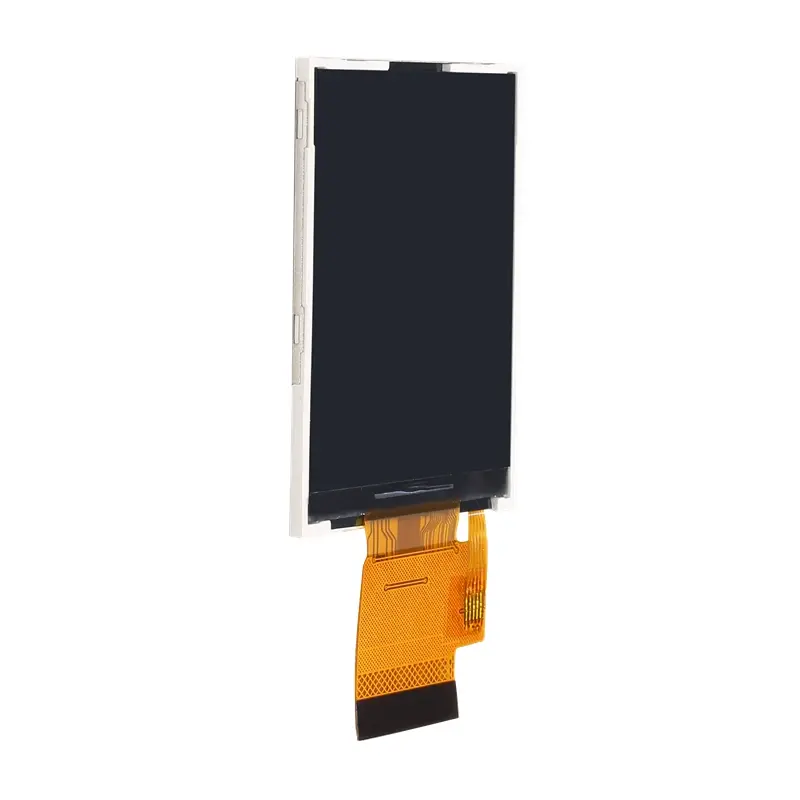

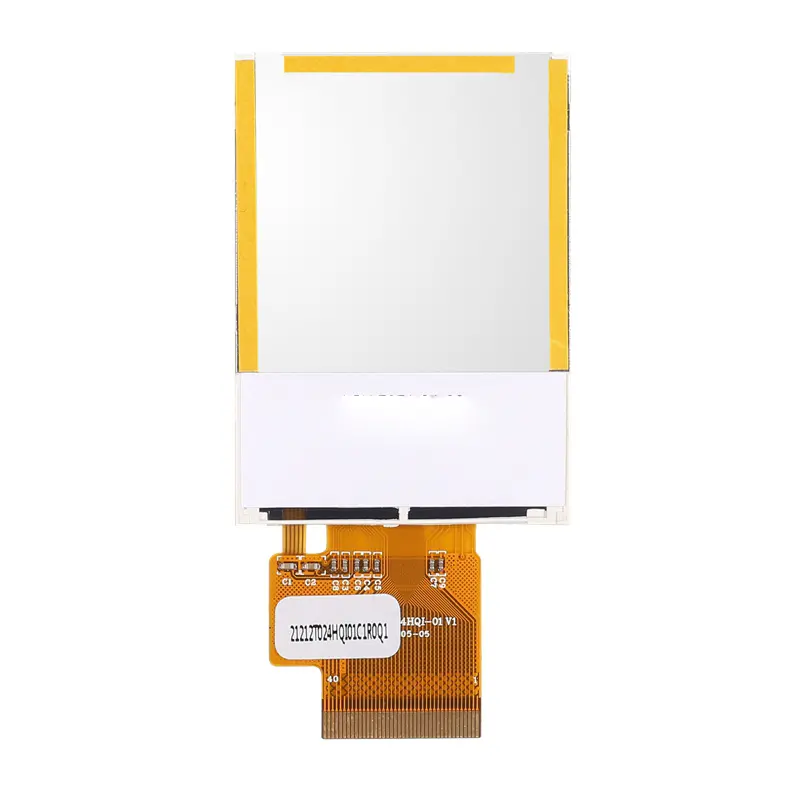

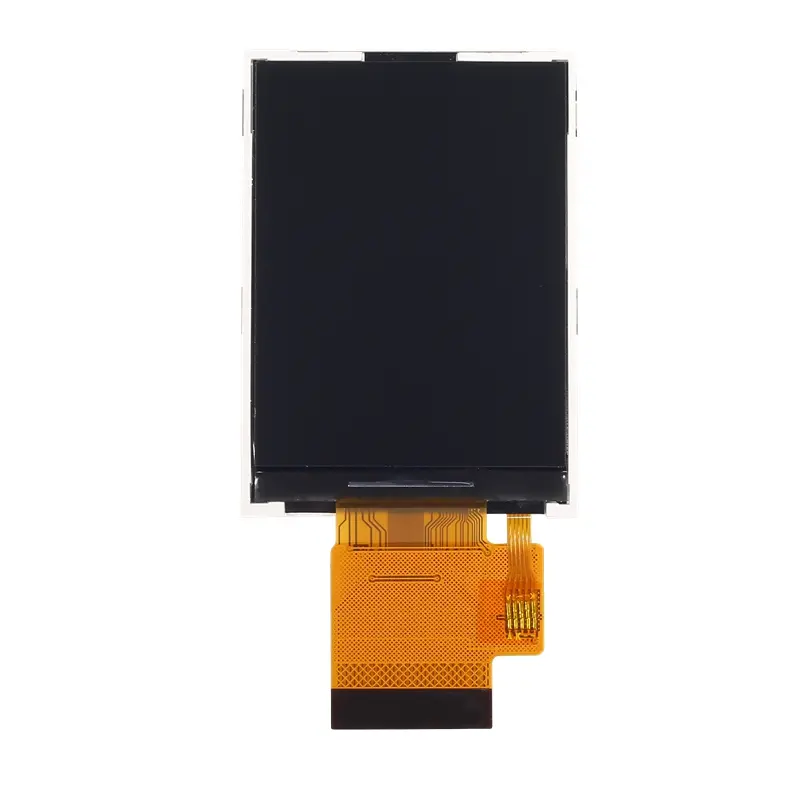

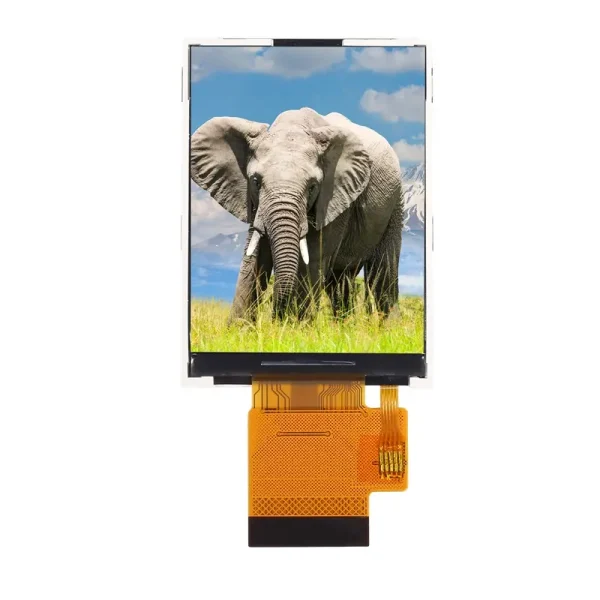

AT-T024HQI-01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight. The 2.4″ display area contains 240 x (RGB) x 320 pixels and can display up to 262K colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 262K | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |

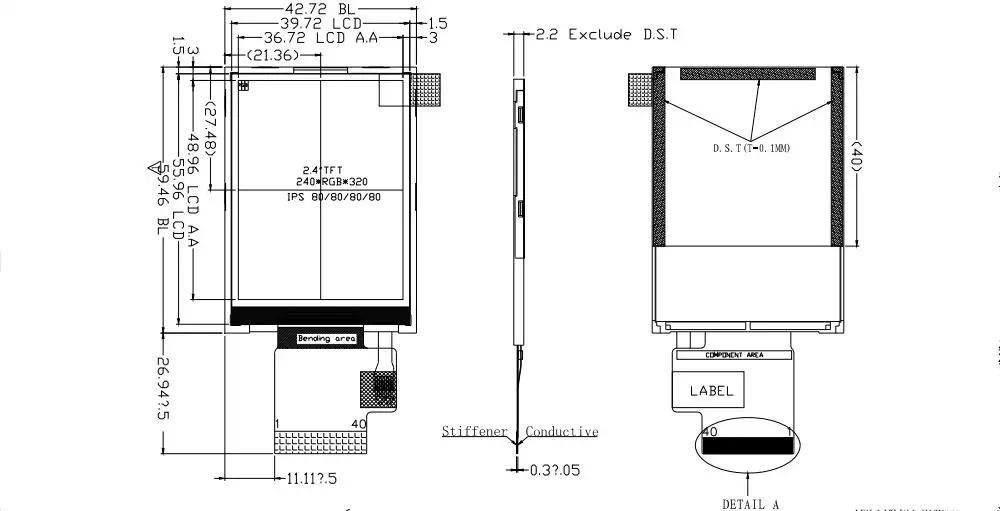

| Module size | 42.72X59.46X2.2 | mm | |
| Active Area(W×H) | 36.72(W)X48.96(H) | mm | |
| Number of Dots | 240*320 | dots | |
| LCM Controller | ILI9341V | – | |
| Backlight | 4 LEDs (white) | pcs | customizable |
| Brightness | 220 | cd/m² | customizable |
| Interface | MCU;RGB | – | |
| PIN NO | 40 | pins | customizable |
| Size | 2.4 |
| Resolution | 240*320 |
| Outline Size | 42.72*59.46 |
| Active Area | 36.72*48.96 |
| Driver IC | ILI9341V |
| Brightness | 220 |
| Interface | MCU/RGB |
| Viewing Angle | IPS |
