AT057ARTSA-700
AT057ARTSA-700
Product name: 5.7inch TFT LCD display
Model No.: AT057ARTSA-700
Display Type TFT, TN
Viewing Direction 12 o’clock
Interface N/A
LCM Controller N/A
Operating temperature -30~+85℃
Brightness(cd/m²) 700cd/m²
Touch Screen Option
Share to:

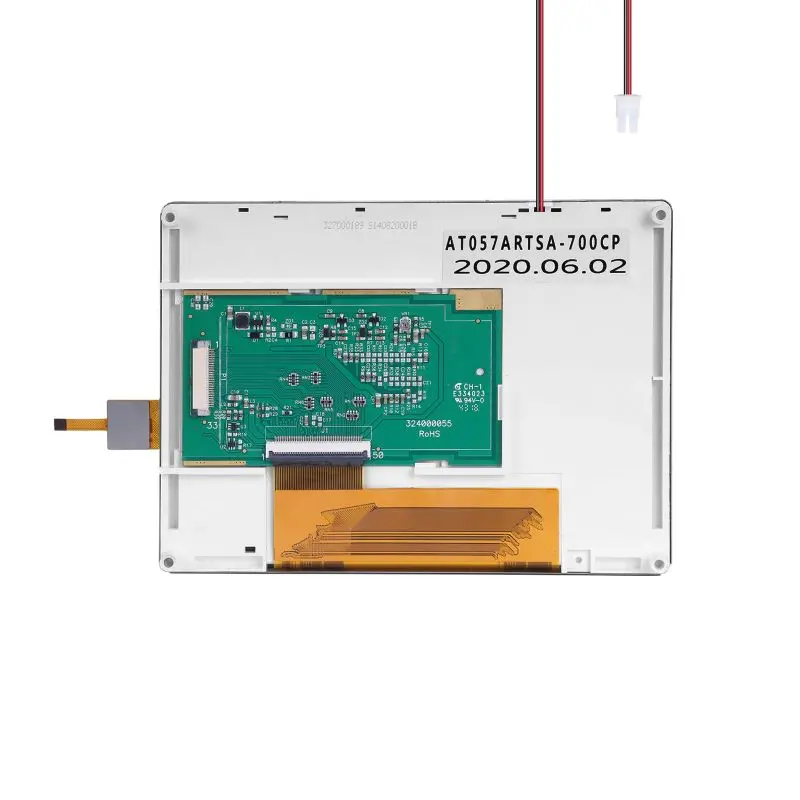

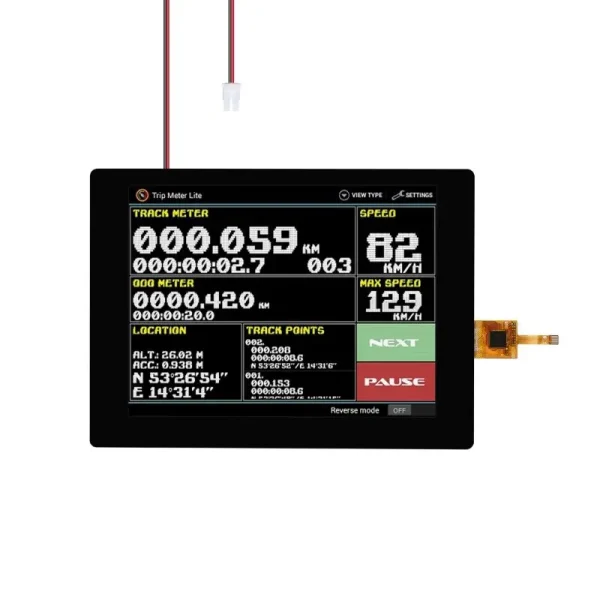

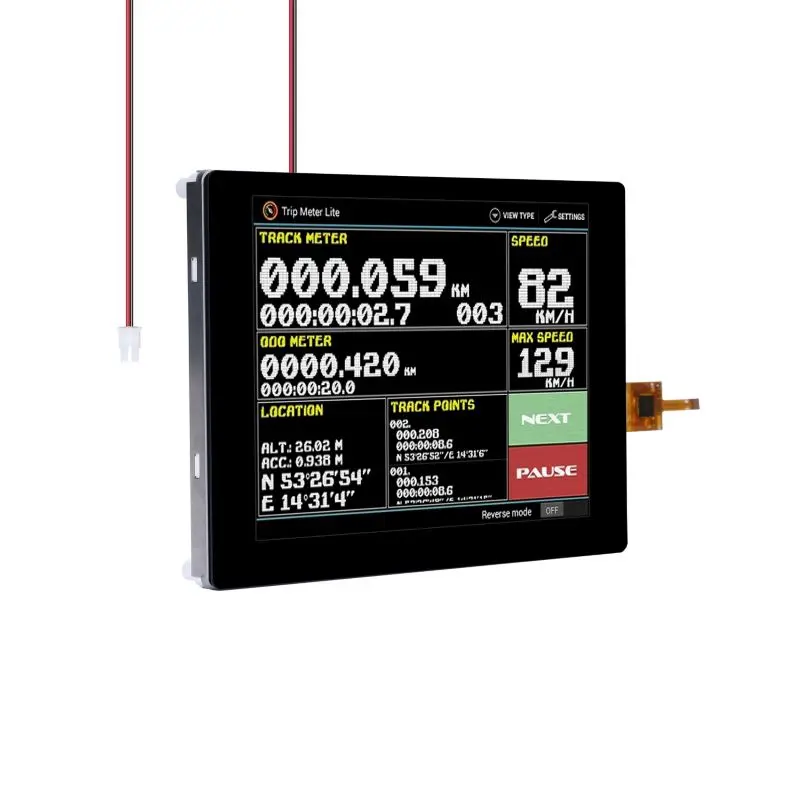

AT057ARTSA-700 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC and a back light. The 5.7″ display area contains 640 x 480 pixels and can display up to 262K colors. This product accords with ROHS environmental criterion..
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 262K | ||
| Viewing Direction | 12 | O’Clock | |
| Operating temperature | -30~+85℃ | ℃ | |
| Storage temperature | -30~+85℃ | ℃ | |

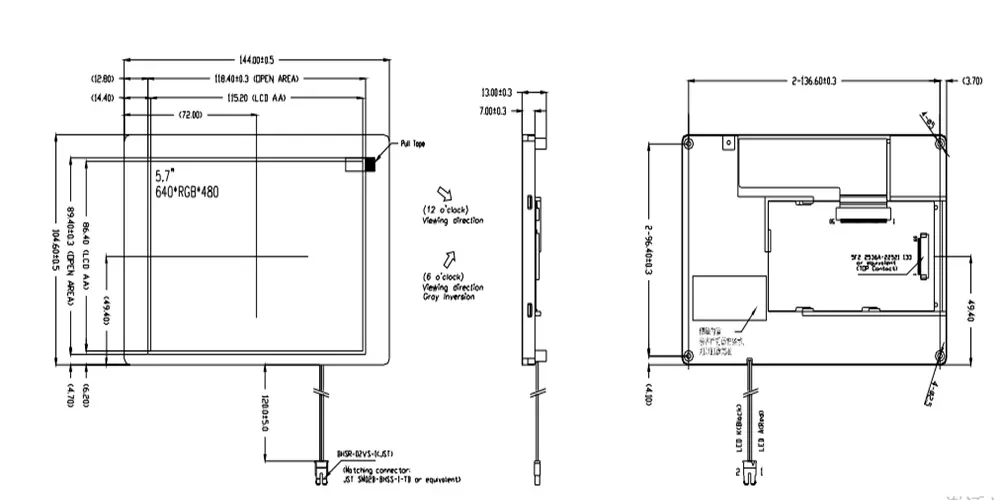

| Module size | 144.00(H)x104.60(V)x13.0(T) | mm | |
| Active Area(W×H) | 115.20(H)x86.40(V) | mm | |
| Number of Dots | 640X480 | dots | |
| LCM Controller | N/A | – | |
| Backlight | 30 | pcs | customizable |
| Brightness | 700 | cd/m² | customizable |
| Interface | N/A | – | |
| Connector | 33 | pins | customizable |
| Size | 5.7 |
| Resolution | 640*480 |
| Outline Size | 144*104.6 |
| Active Area | 115.2*86.4 |
| Driver IC | N/A |
| Brightness | 900 |
| Interface | RGB |
| Viewing Angle | 12:00 o’clock |
| Remark | OP:-30～85 |
