Product name: 7inch TFT LCD display
Model No.: AT-T070HURA-01
Display Type TFT, IPS, Normally black
Viewing Direction All
Interface RGB
LCM Controller OTA7290B
Operating temperature -20~+70℃
Brightness(cd/m²) 300cd/m²
Touch Screen Without touch screen
Share to:

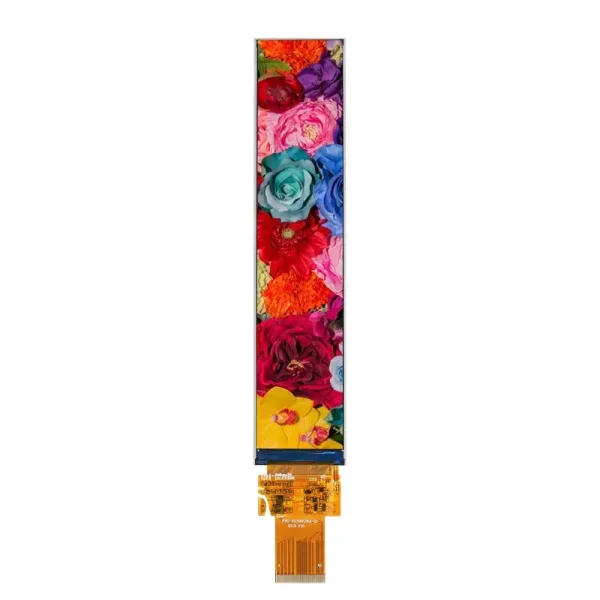

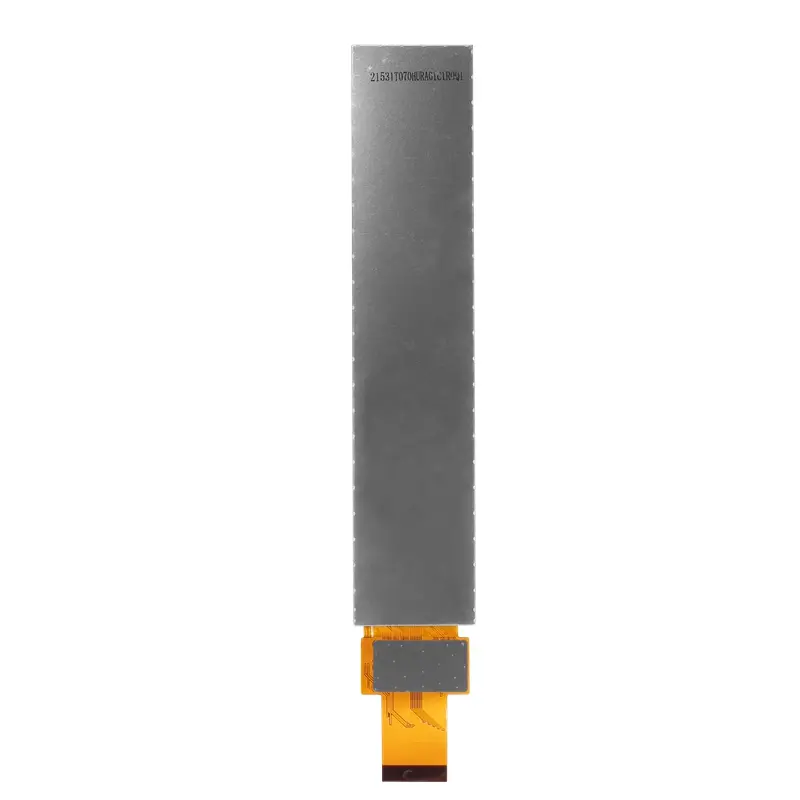

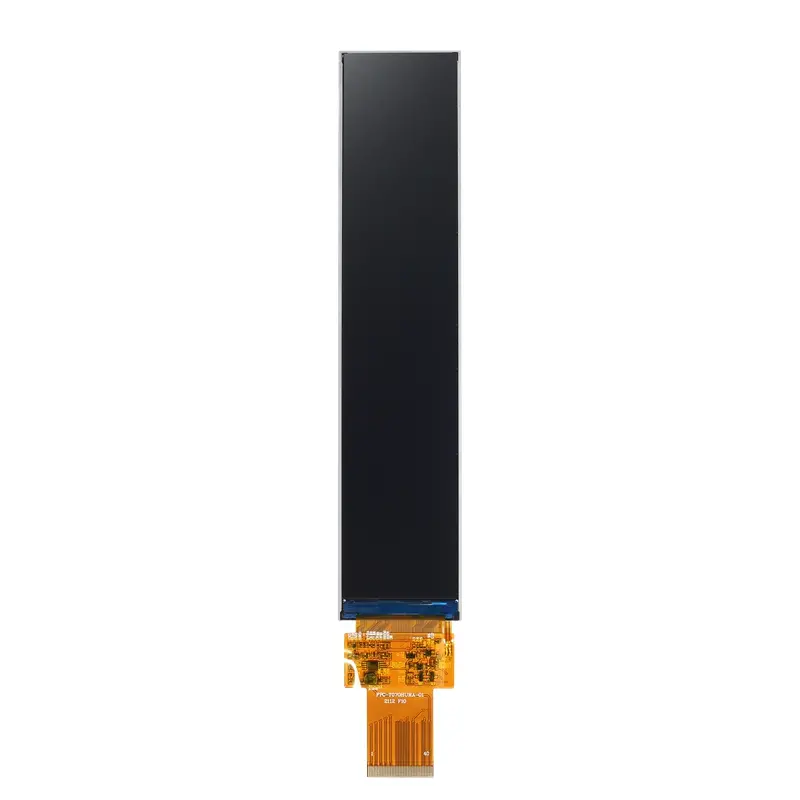

AT-T070HURA-01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light,and CTP unit . The 7.0 display area contains 280 x (RGB) x 1424 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |

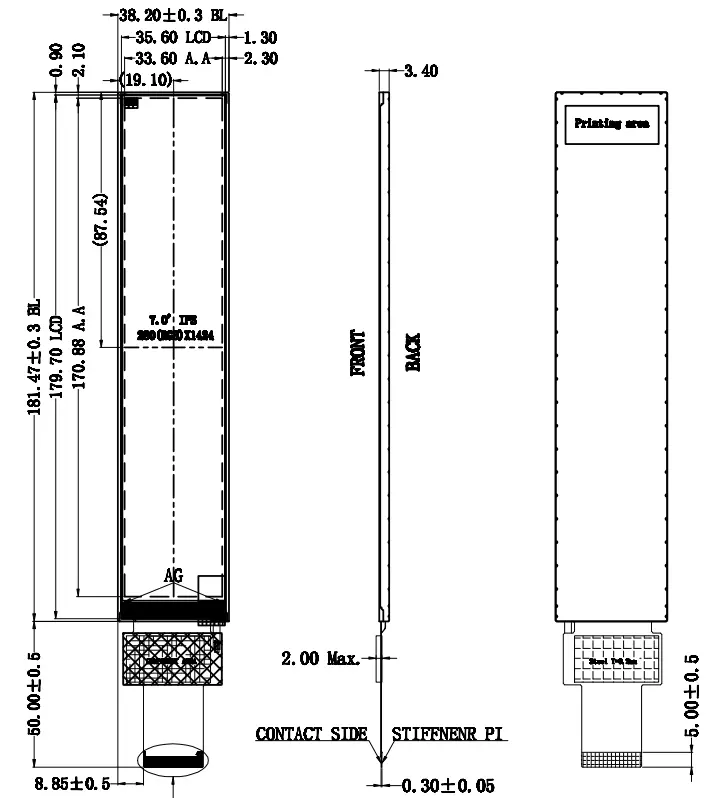

| Module size | 38.20X181.47X3.40 | mm | |
| Active Area(W×H) | 33.60X170.88 | mm | |
| Number of Dots | 280×1424 | dots | |
| LCM Controller | OTA7290B | – | |
| Backlight | 8 | pcs | customizable |
| Brightness | 300 | cd/m² | customizable |
| Interface | RGB | – | |
| Connector | 40 | pins | customizable |
| Size | 7.0 |
| Resolution | 280*1424 |
| Outline Size | 38.2*181.47 |
| Active Area | 33.6*170.88 |
| Driver IC | OTA7290B |
| Brightness | 300 |
| Interface | RGB |
| Viewing Angle | IPS |
