Product name: 10.1inch TFT LCD display
Model No.: AT-T101BMIJ-350
Display Type TFT
Viewing Direction All
Interface MIPI
LCM Controller /
Operating temperature -20~+70℃
Brightness(cd/m²) 350cd/m²
Touch Screen Without touch screen
Share to:

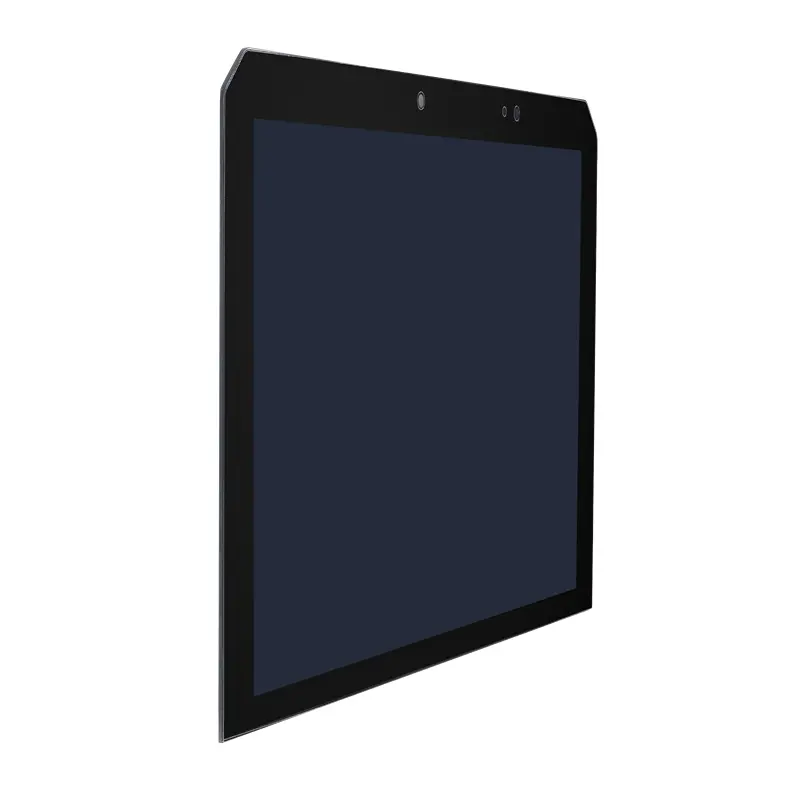

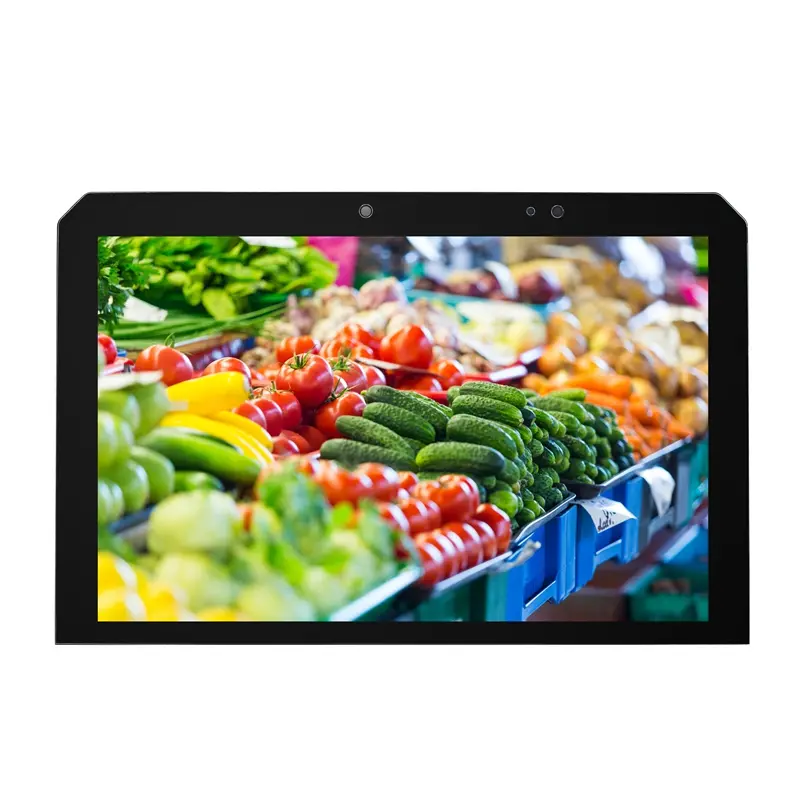

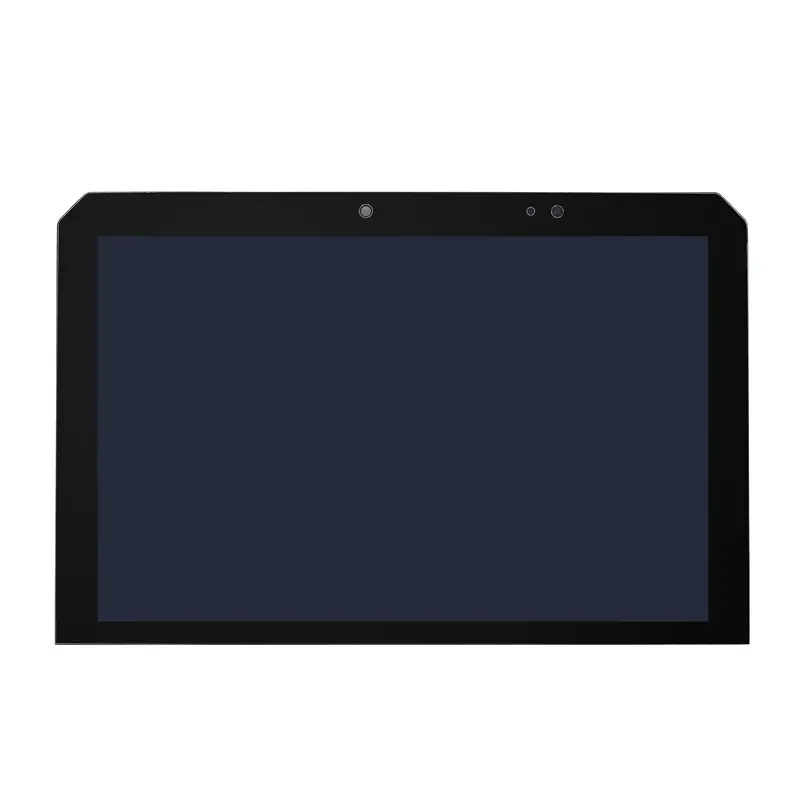

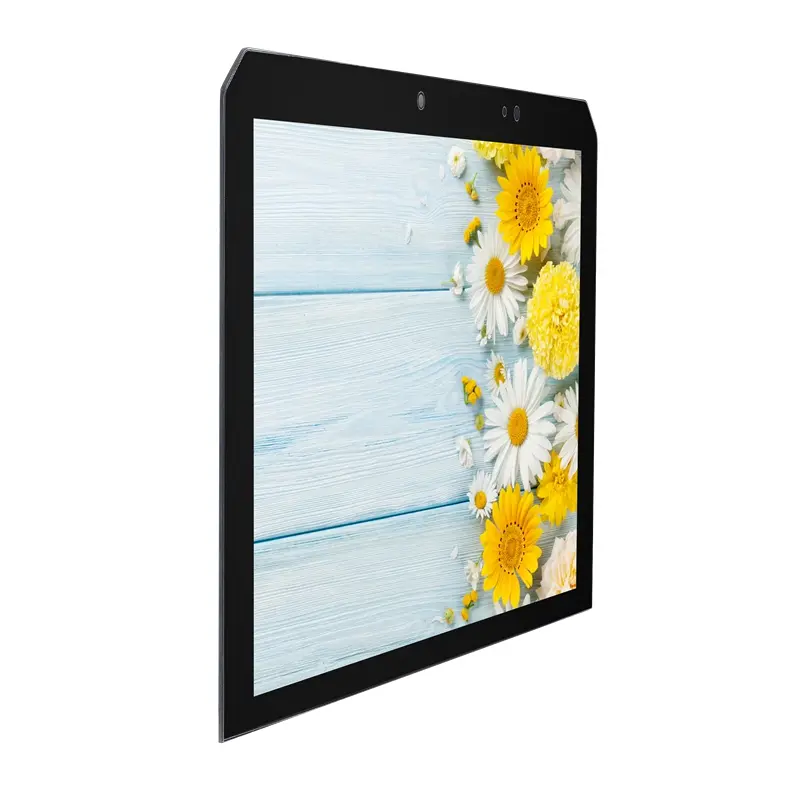

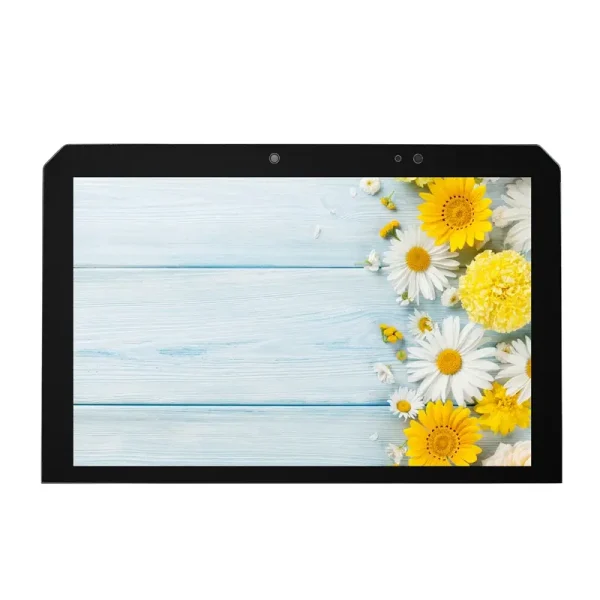

AT-T101BMIJ-350 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit. The 10.1″ display are a contains 1200 x (RGB) x 1920 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |

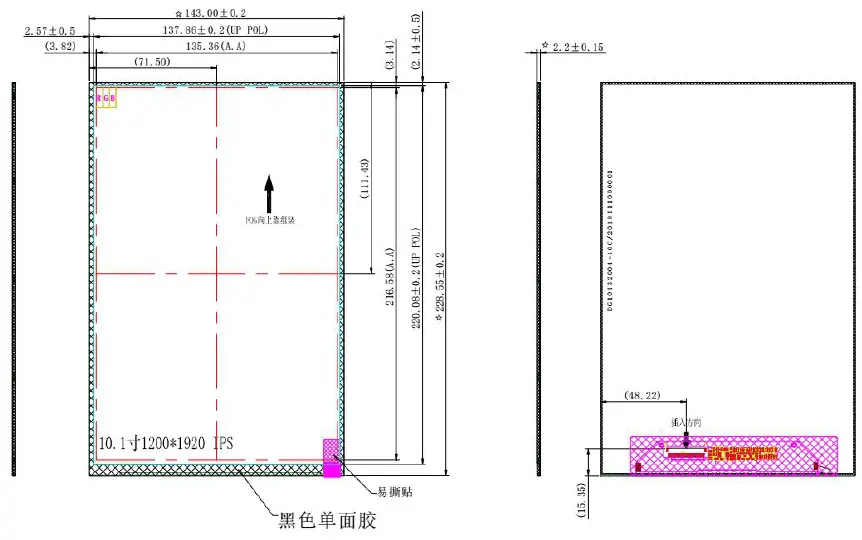

| Module size | 143X228.55X2.7 | mm | |
| Active Area(W×H) | 135.36(W)X216.58(H) | mm | |
| Number of Dots | 1200*1920 | dots | |
| LCM Controller | / | – | |
| Backlight | 32LEDs (white) | pcs | customizable |
| Brightness | 350 | cd/m² | customizable |
| Interface | MIPI | – | |
| Connector | 40 | pins | customizable |
| Size | 10.1 |
| Resolution | 1200*1920 |
| Outline Size | 143*228.55 |
| Active Area | 135.36*216.58 |
| Driver IC | N/A |
| Brightness | 350 |
| Interface | MIPI |
| Viewing Angle | IPS |
