Product name: 5.5inch TFT LCD display
Model No.: AT055BMIH-01A590
Display Type TFT, IPS
Viewing Direction All
Interface N/A
LCM Controller HX8399C
Operating temperature -20~+80℃
Brightness(cd/m²) 590cd/m²
Touch Screen Option
Share to:

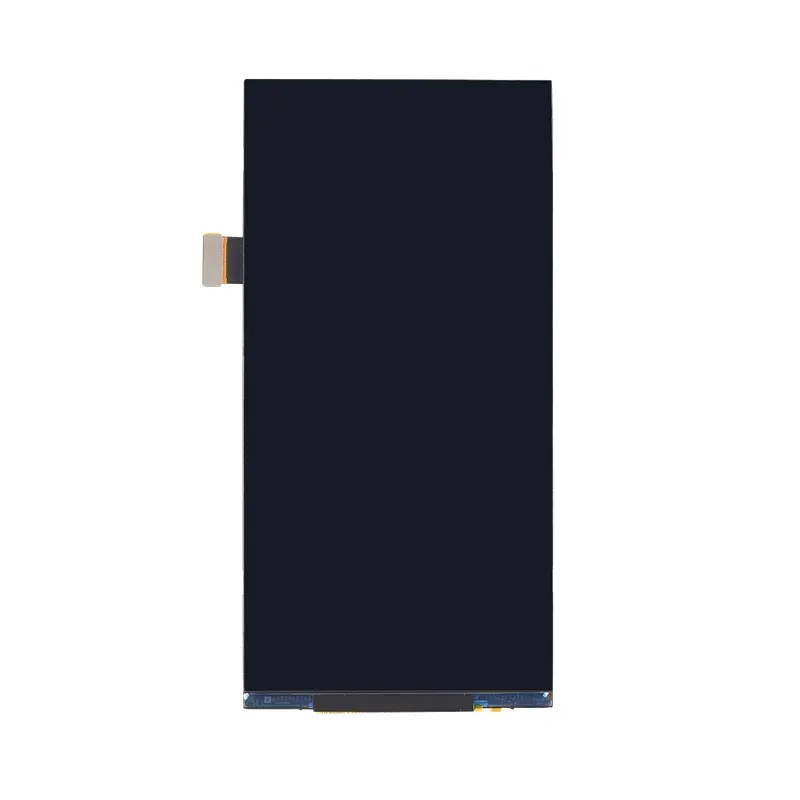

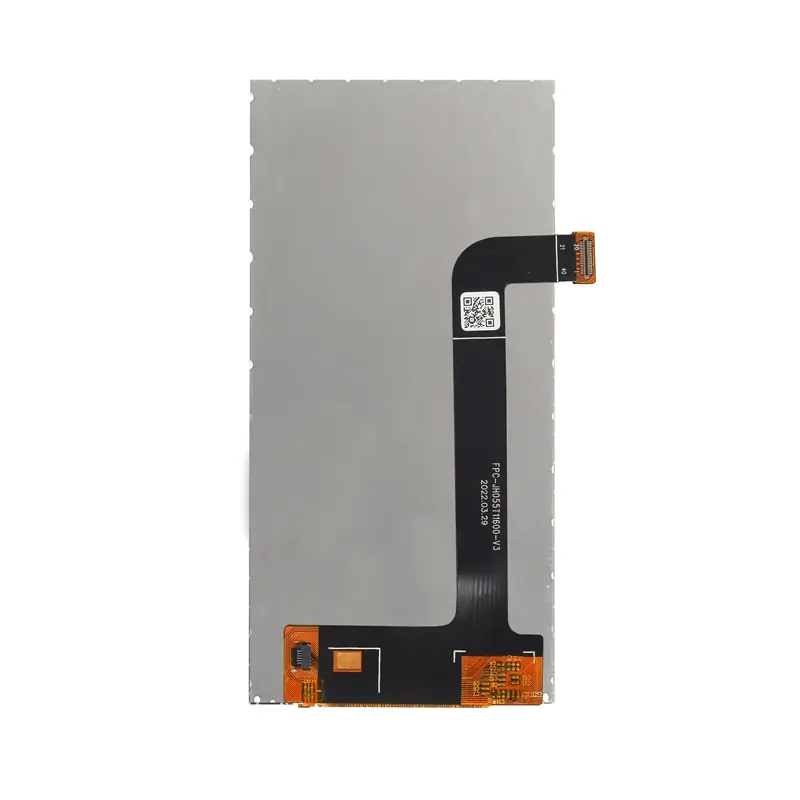

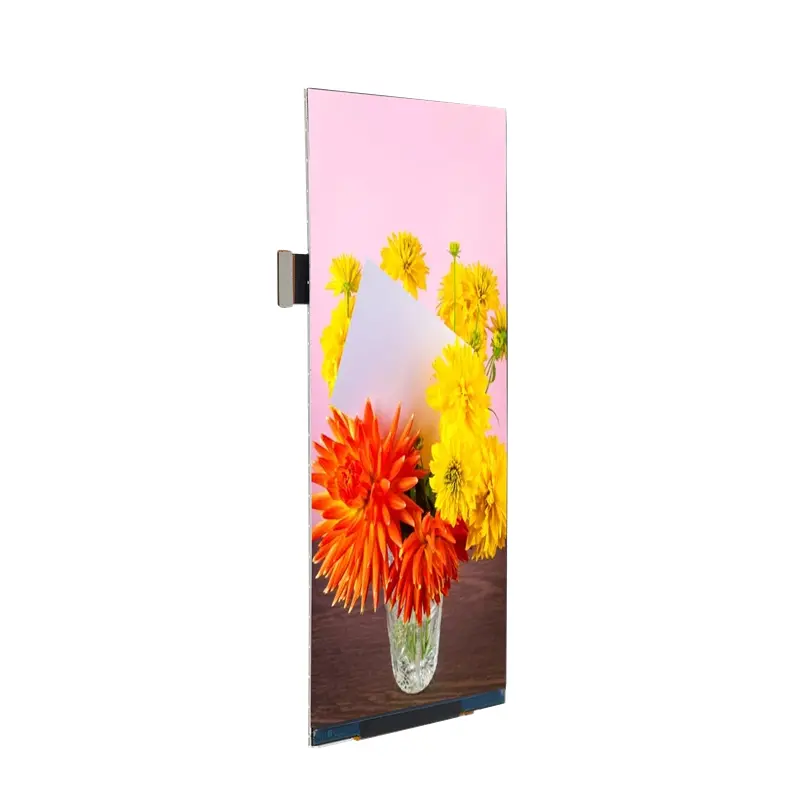

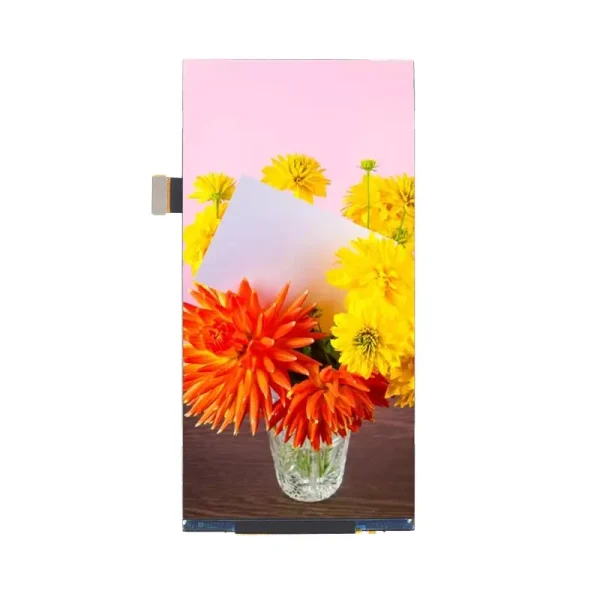

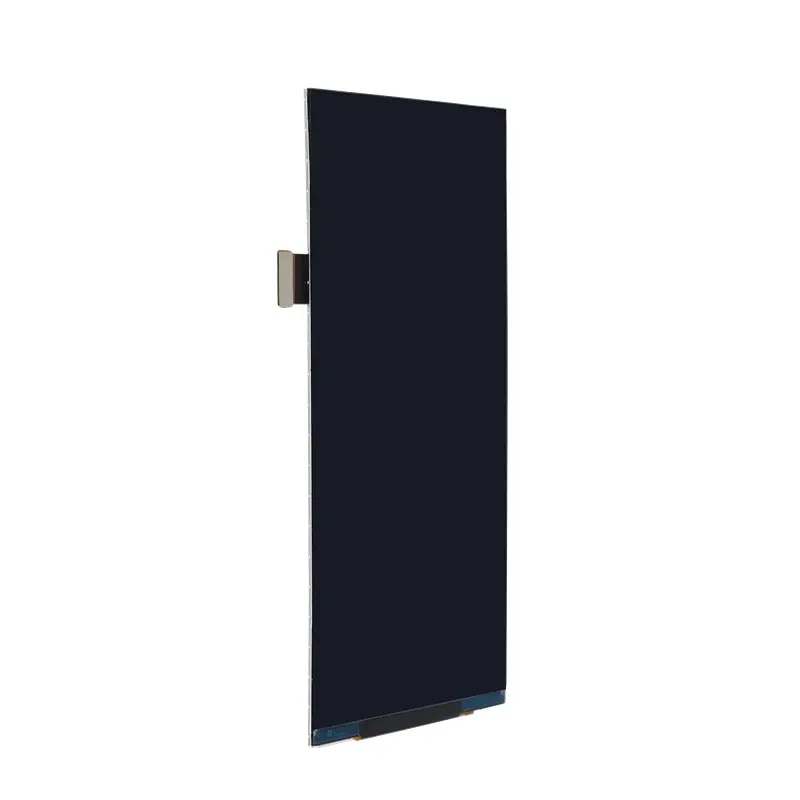

AT055BMIH-01A590 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC and a back light. The 5.5″ display area contains 1080 x 2160 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~+80 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |
| Module size | 63.88×130.62×1.47 | mm | |
| Active Area(W×H) | 61.88(W)x123.77(H) | mm | |
| Number of Dots | 1080X2160 | dots | |
| LCM Controller | HX8399C | – | |
| Backlight | 14 | pcs | customizable |
| Brightness | 590 | cd/m² | customizable |
| Interface | N/A | – | |
| Connector | 40 | pins | customizable |
