AT-T070TIS-01
AT-T070TIS-01
Product name: 7inch TFT LCD display
Model No.: AT-T070TIS-01
Display Type TFT, IPS
Viewing Direction ALL
Interface LVDS
LCM Controller ST5821C and ST5084C
Operating temperature -20~+70℃
Brightness(cd/m²) 400cd/m²
Touch Screen Option
Share to:

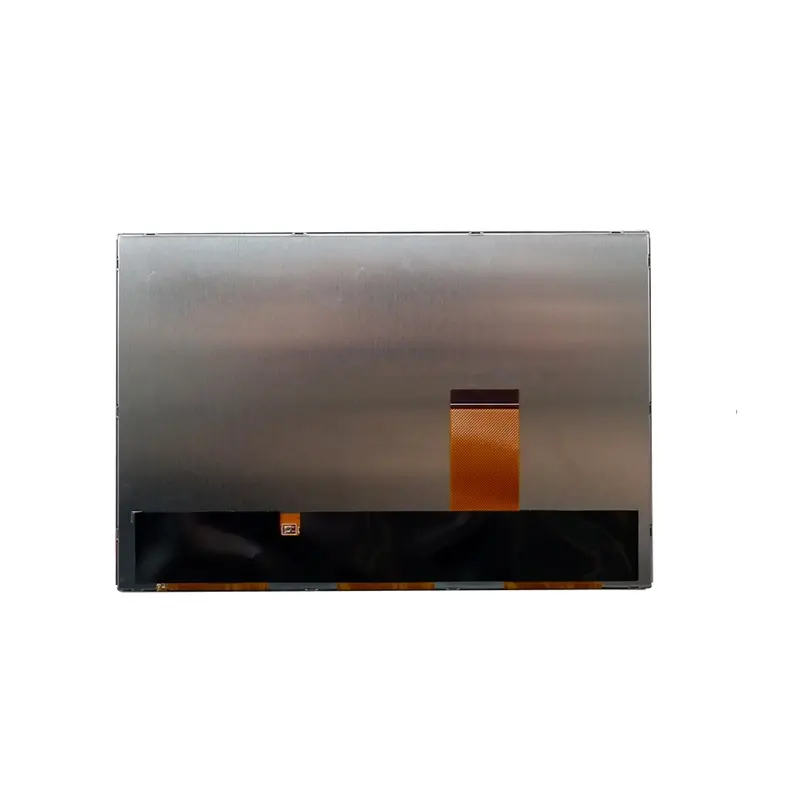

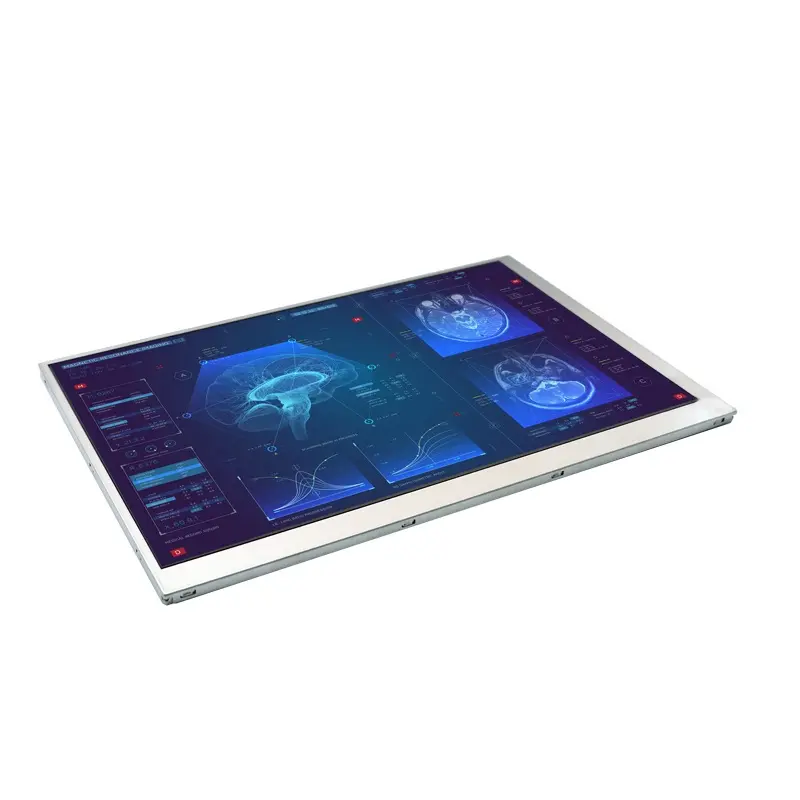

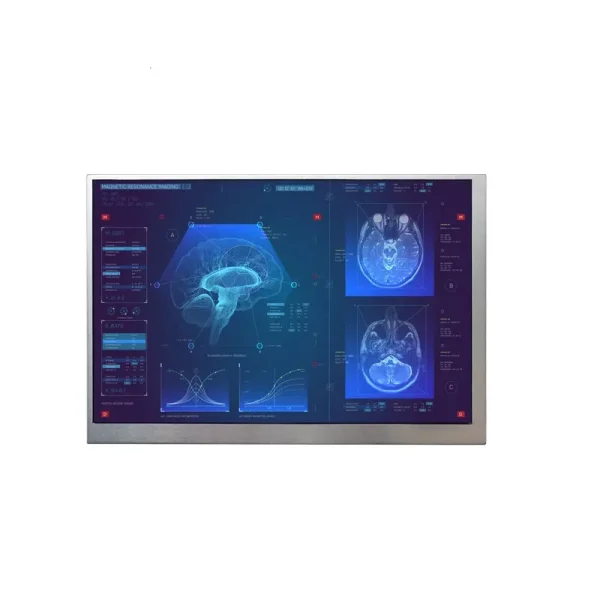

AT-T070TIS-01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC and a back light. The 7.0″ display area contains 1280 x 800 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |

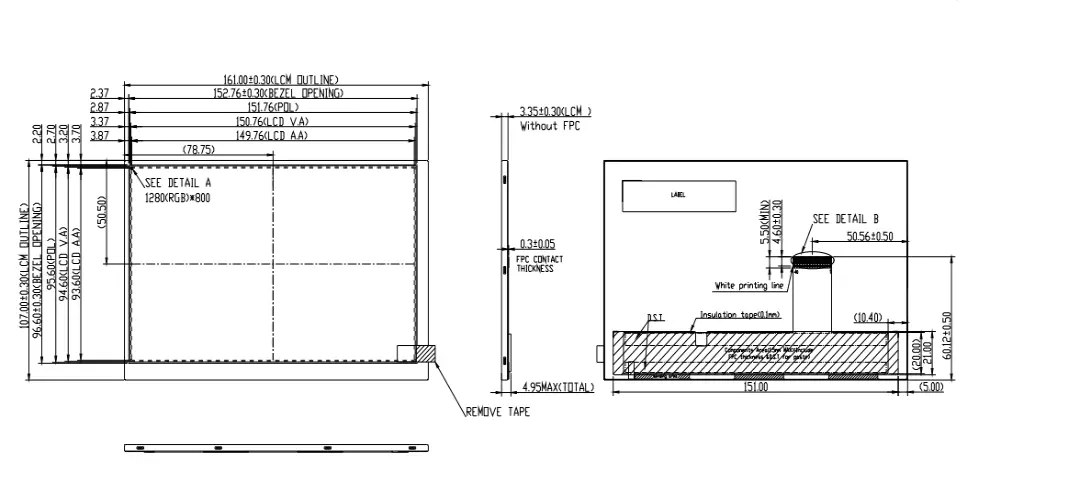

| Module size | 161.0×107.0x3.35 | mm | |
| Active Area(W×H) | 149.76X93.60 | mm | |
| Number of Dots | 1280X800 | dots | |
| LCM Controller | ST5821C and ST5084C | – | |
| Backlight | 21 | pcs | customizable |
| Brightness | 400 | cd/m² | customizable |
| Interface | LVDS | – | |
| Connector | 40 | pins | customizable |
| Size | 7 |
| Resolution | 1280*800 |
| Outline Size | 161.00*107.00 |
| Active Area | 149.76*93.60 |
| Driver IC | ST5821C |
| Brightness | 400 |
| Interface | LVDS |
| Viewing Angle | IPS |
