Product name: 7inch TFT LCD display
Model No.: AT-T070BAEA-08CP
Display Type： TFT, IPS, Normally black
Viewing Direction： All
Interface： MIPI
LCM Controller： EK79007/EK73217BCGA
Operating temperature： -20~+70℃
Brightness(cd/m²)： 330cd/m²
Touch Screen： With touch screen
Share to:

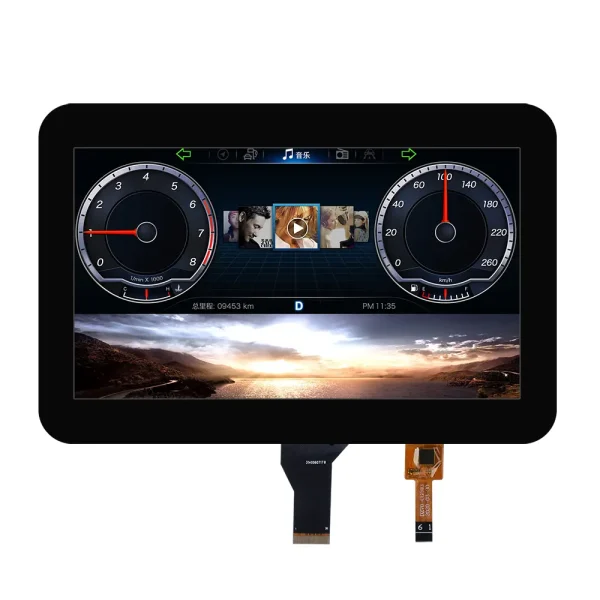

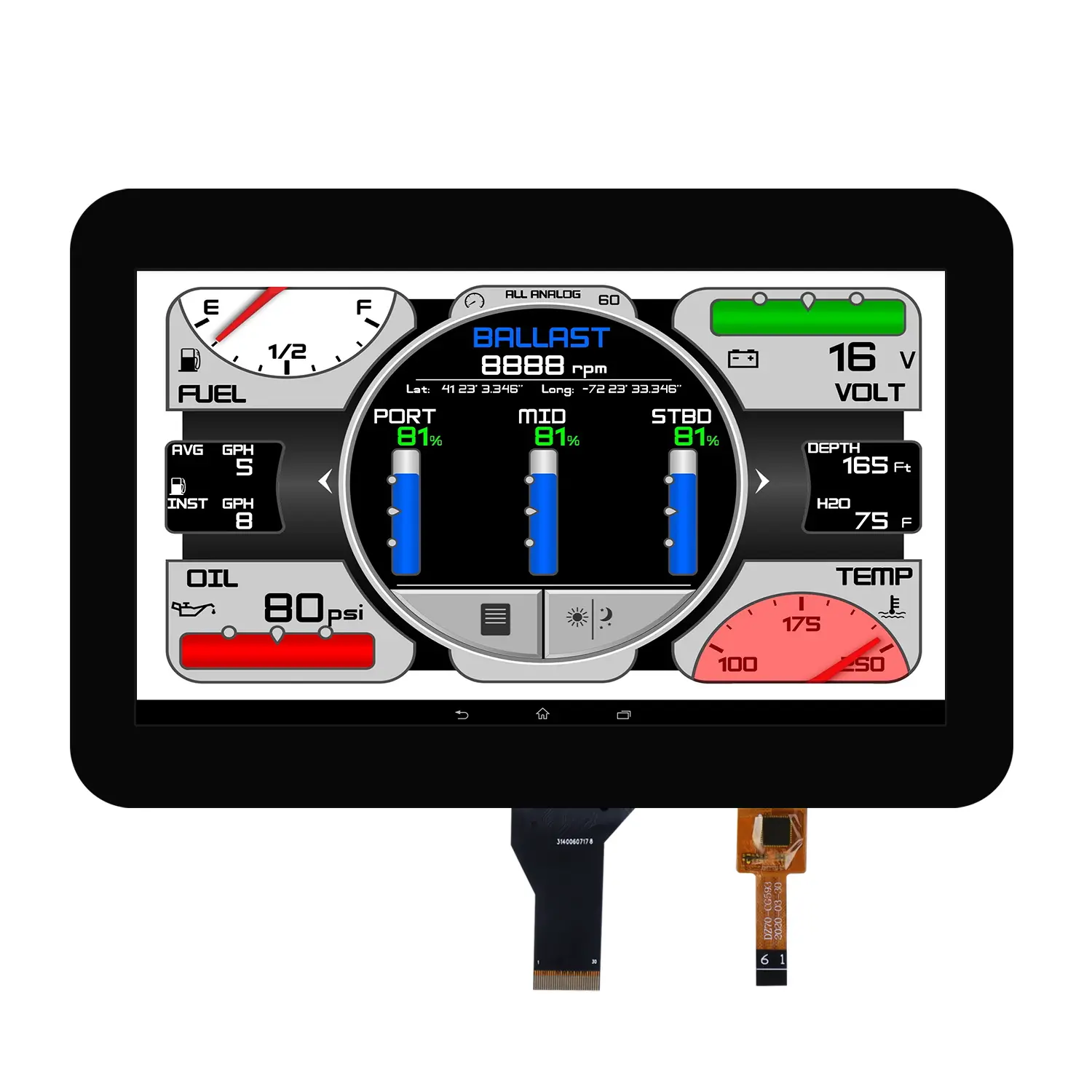

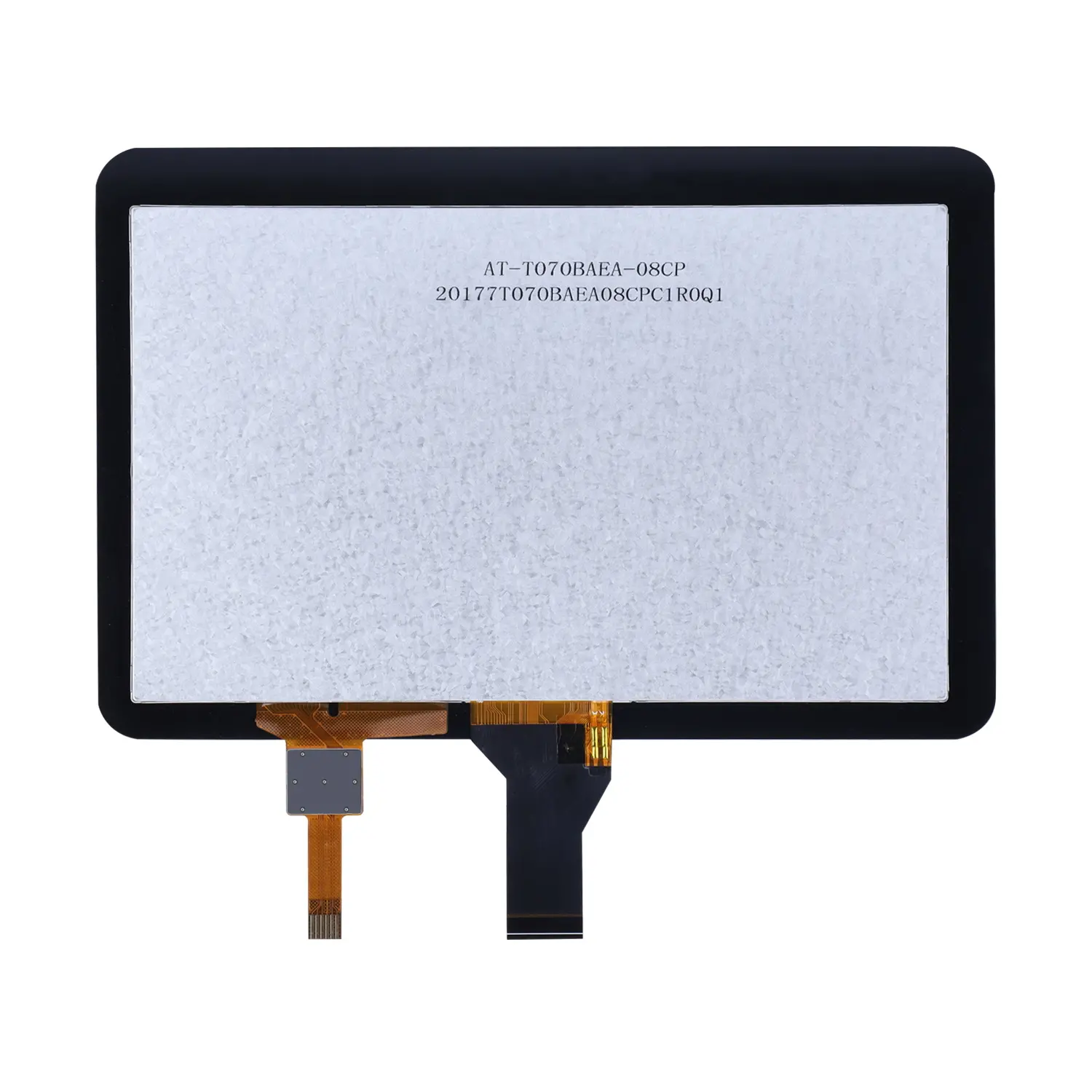

AT-T070BAEA-08CP is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light and CTP unit. The 7.0″ display are a contains 1024 x 600 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |
| Module size | 181.85X119.80X4.95 | mm | |
| Active Area(W×H) | 154.21(W)X85.92(H) | mm | |
| Number of Dots | 1024*600 | dots | |
| LCM Controller | EK79007AD/EK73217BCGA | – | |
| Backlight | 24 | pcs | customizable |
| Brightness | 300 | cd/m² | customizable |
| Interface | MIPI-4lanes | – | |
| Connector | 30 | pins | customizable |
| Size | 7 |
| Resolution | 1024*600 |
| Outline Size | 181.85*119.80 |
| Active Area | 154.21*85.92 |
| Driver IC | EK79007 |
| Brightness | 330 |
| Interface | MIPI |
| Viewing Angle | IPS |
| Remark | CTP |
