AT-T035QHI-04
AT-T035QHI-04
Product name: 3.5 inch TFT LCD display
Model No.: AT-T035QHI-04
Display Type: TFT, transmissive
Viewing Direction: IPS
Interface： RGB 18bit
LCM Controller： ILI9488
Operating temperature： -20~+70℃
Brightness(cd/m²)：： 360 cd/m²
Touch Screen： option
Share to:

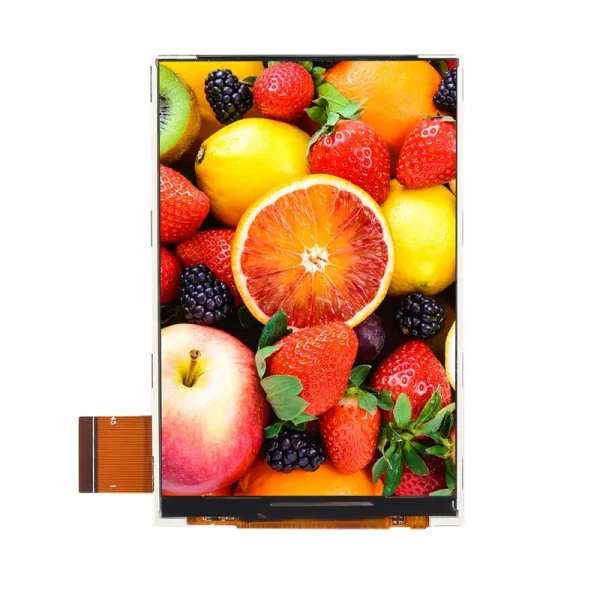

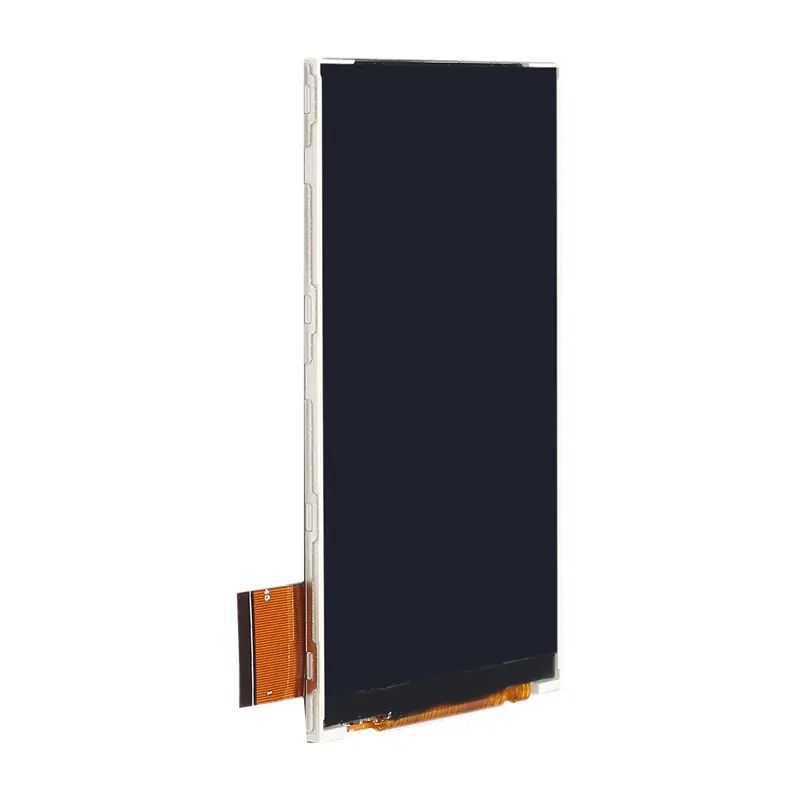

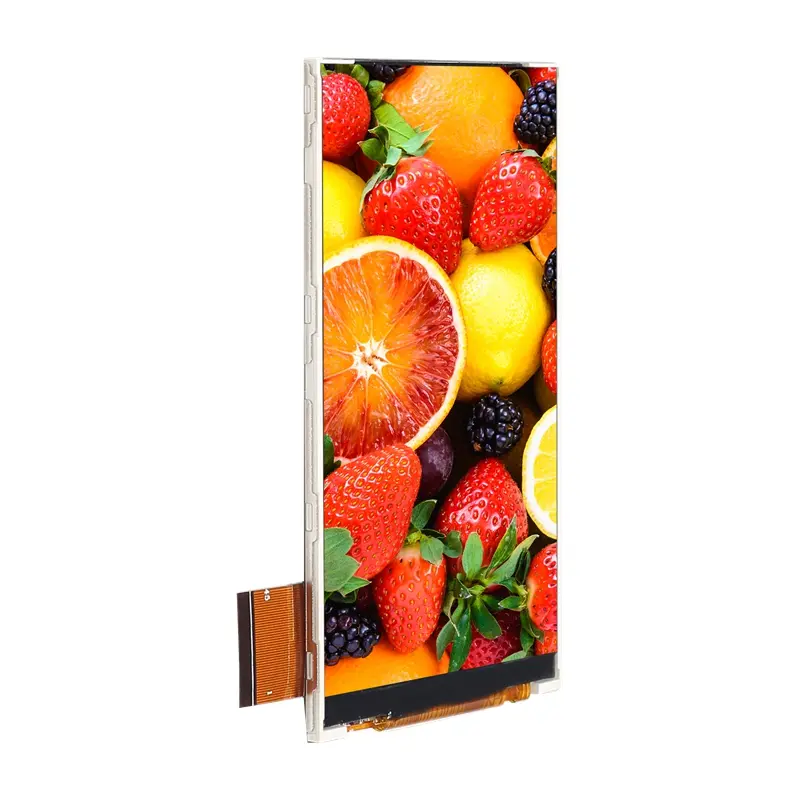

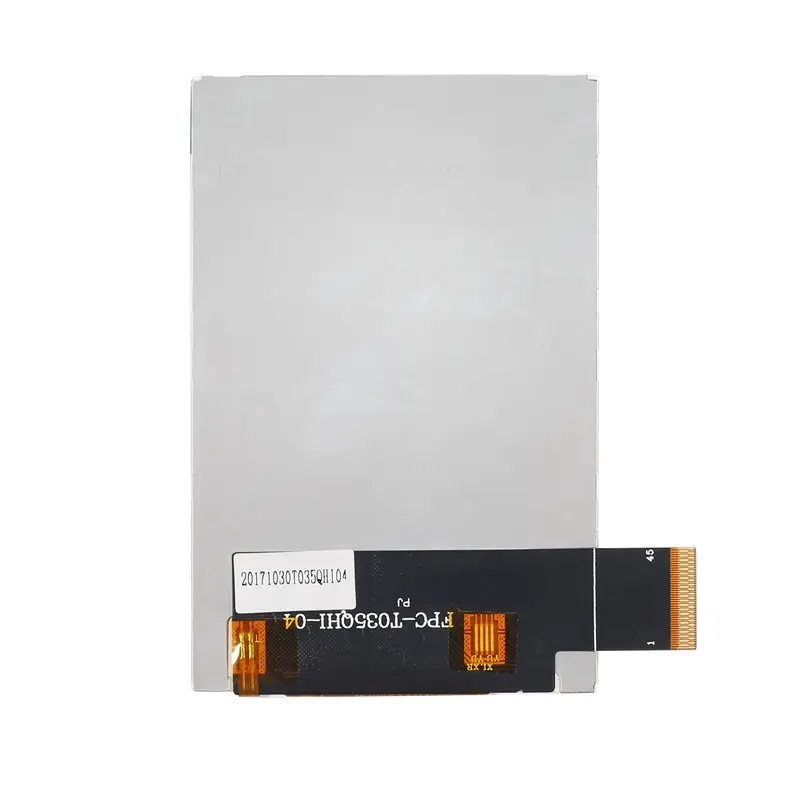

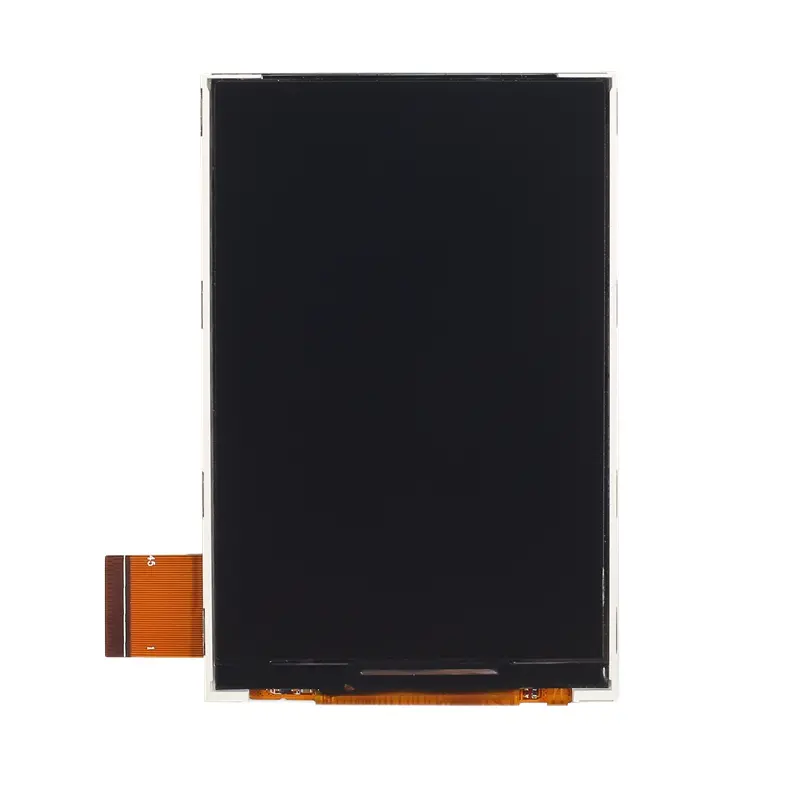

AT-T035QHI-04 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight. The 3.5″ display area contains 320 x (RGB) x 480 pixels and can display up to 262K colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 262K | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |
| Module size | 54.66X82.94X2.3 | mm | |
| Active Area(W×H) | 48.96(W)X73.44(H) | mm | |
| Number of Dots | 320*480 | dots | |
| LCM Controller | ILI9488 | – | |
| Backlight | 6 LEDs (white) | pcs | customizable |
| Brightness | 360 | cd/m² | customizable |
| Interface | RGB | – | |
| Connector | 45 | pins | customizable |
| Size | 3.5 |
| Resolution | 320*480 |
| Outline Size | 54.66*82.94*2.3 |
| Active Area | 48.96*73.44 |
| Driver IC | ILI9488 |
| Brightness | 360 |
| Interface | RGB |
| Viewing Angle | IPS |
