AT-T043HWSA-02
AT-T043HWSA-02

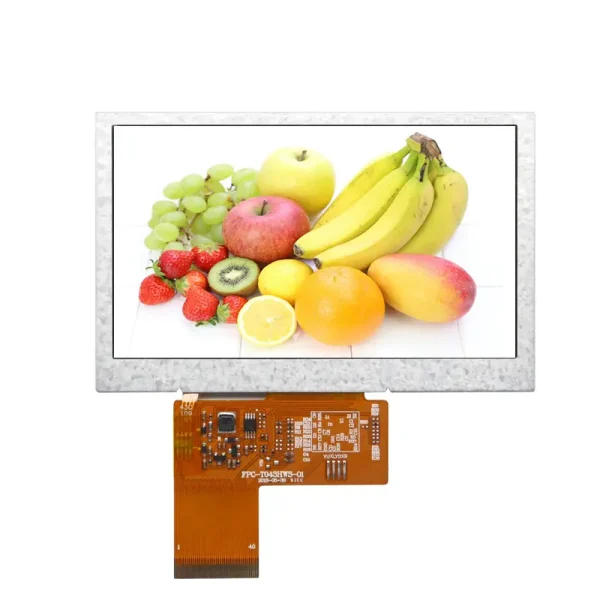

Product name: 4.3 inch TFT LCD display
Model No.: AT-T043HWSA-02
Display Type: TFT, transmissive
Viewing Direction: IPS
Interface: RGB
LCM Controller: ST5625CA&ST5091CA
Operating temperature: -20~+70℃
Brightness(cd/m²): 500 cd/m²
Touch Screen: option
Share to:
AT-T043HWSA-02 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight. The 4.3″ display area contains 800 x (RGB) x 480 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | IPS | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |

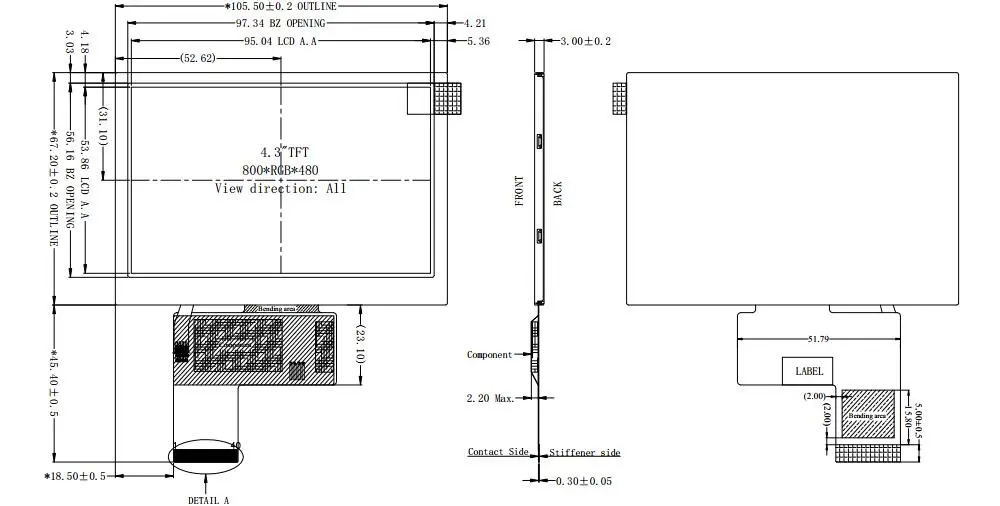

| Module size | 105.50X67.20X3.0 | mm | |
| Active Area(W×H) | 95.04(W)X53.86(H) | mm | |
| Number of Dots | 800*480 | dots | |
| LCM Controller | ST5625CA&ST5091CA | – | |
| Backlight | 16 LEDs (white) | pcs | customizable |
| Brightness | 500 | cd/m² | customizable |
| Interface | RGB | – | customizable |
| Connector | 40 | pins | customizable |
| Size | 4.3 |
| Resolution | 800*480 |
| Outline Size | 105.5*67.2 |
| Active Area | 95.04*53.86 |
| Driver IC | ST5625CA |
| Brightness | 500 |
| Interface | RGB |
| Viewing Angle | IPS |
| Remark | CTP &RTP |
