QV185FHB-N81
QV185FHB-N81
Product name: 18.5inch TFT LCD display
Model No.: QV185FHB-N81
Display Type 18.5“TFT
Viewing Direction ALL
Interface LVDS
LCM Controller /
Operating temperature 0~+50℃
Brightness(cd/m²) 500cd/m²
Touch Screen Without touch screen
Share to:

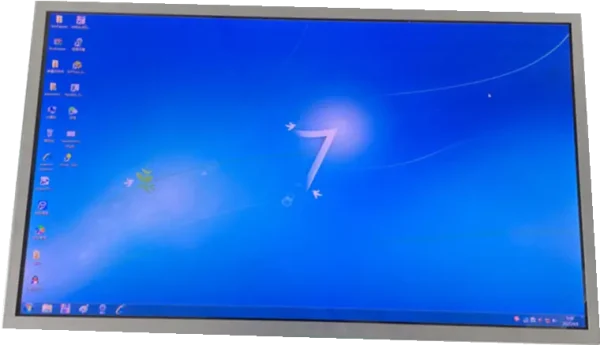

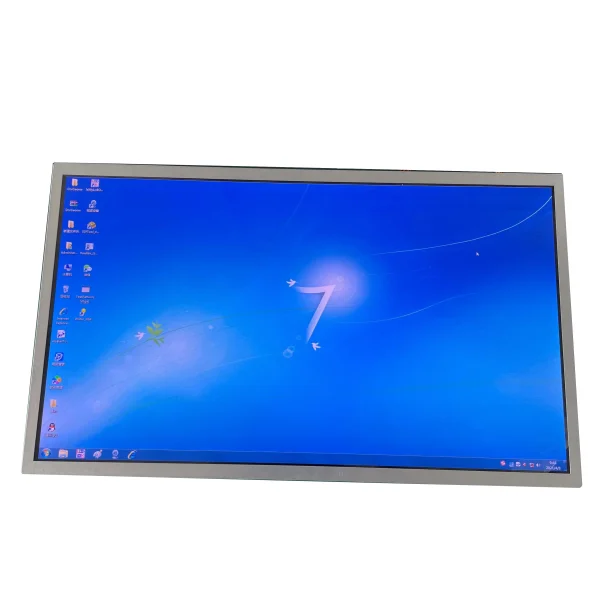

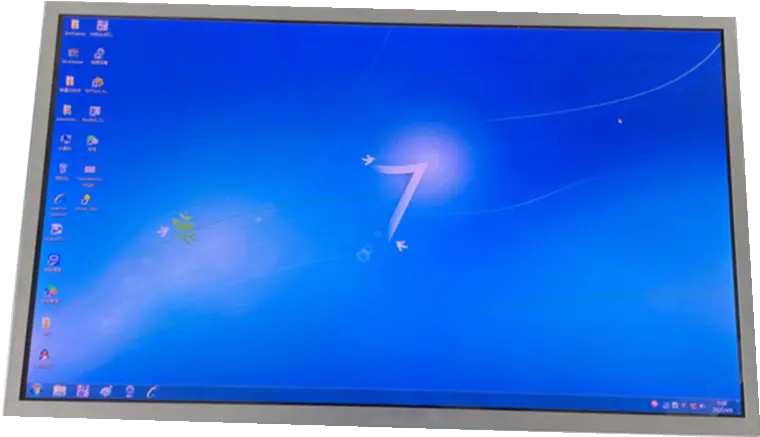

QV185FHB-N81 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit. The 18.5″ display area contains 1920 x (RGB) x1080 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | 0~+50 | ℃ | |
| Storage temperature | -20~+60 | ℃ | |

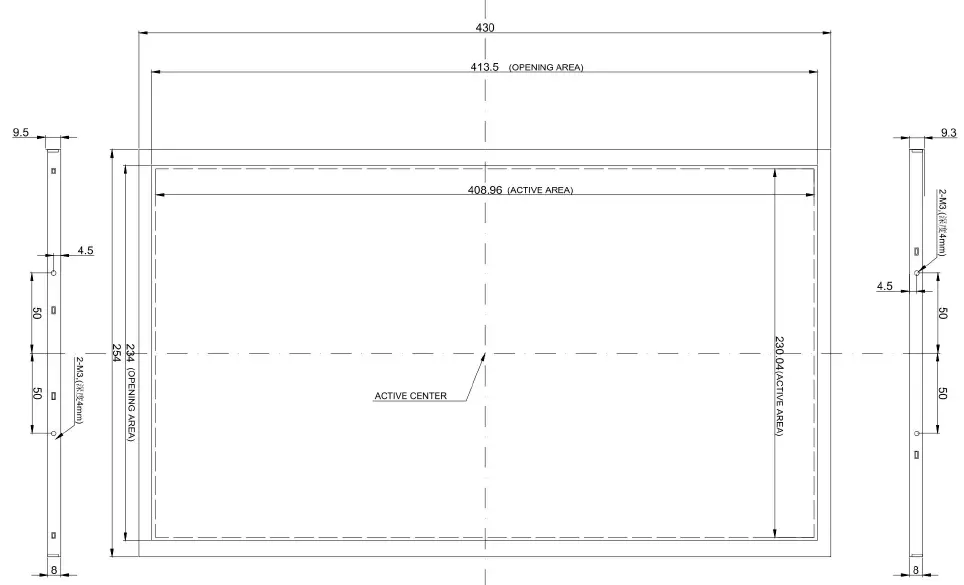

| Module size | 430X254X9.5 | mm | |
| Active Area(W×H) | 408.96(W)X230.04(H) | mm | |
| Number of Dots | 1920*1080 | dots | |
| LCM Controller | / | – | |
| Backlight | /LEDs (white) | pcs | customizable |
| Brightness | 500 | cd/m² | customizable |
| Interface | LVDS | – | |
| Connector | 30 | pins | customizable |
| Size | 18.5 |
| Resolution | 1920*1080 |
| Outline Size | 430*254 |
| Active Area | 408.96*230.04 |
| Driver IC | N/A |
| Brightness | 500 |
| Interface | LVDS |
| Viewing Angle | IPS |
