AT-T024HQI-01CP
AT-T024HQI-01CP
Product name: 2.4 inch TFT LCD Display
Model No.: AT-T024HQI-01CP
Display Type: TFT
Viewing Direction: ALL
Interface: RGB
LCM Controller: FT6236U
Operating temperature: -20~70
Brightness(cd/m²): /
Touch Screen: /
Share to:

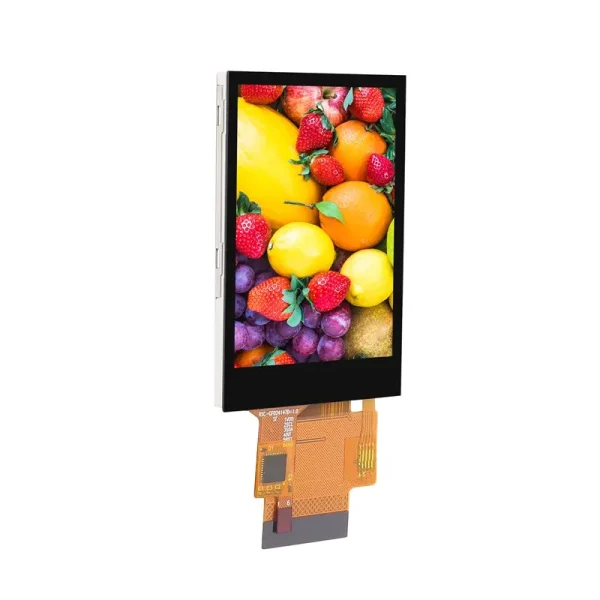

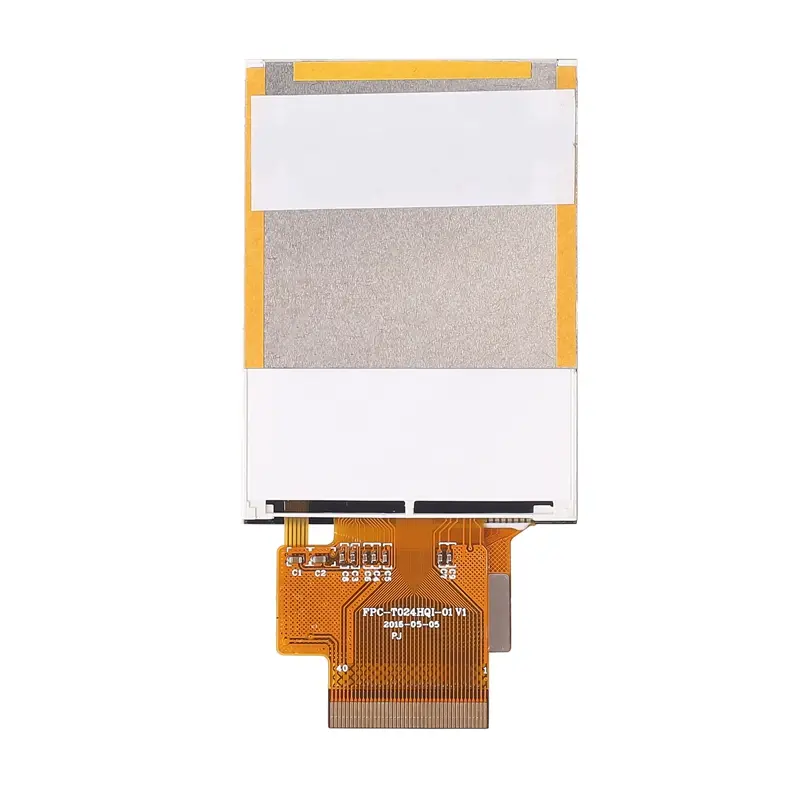

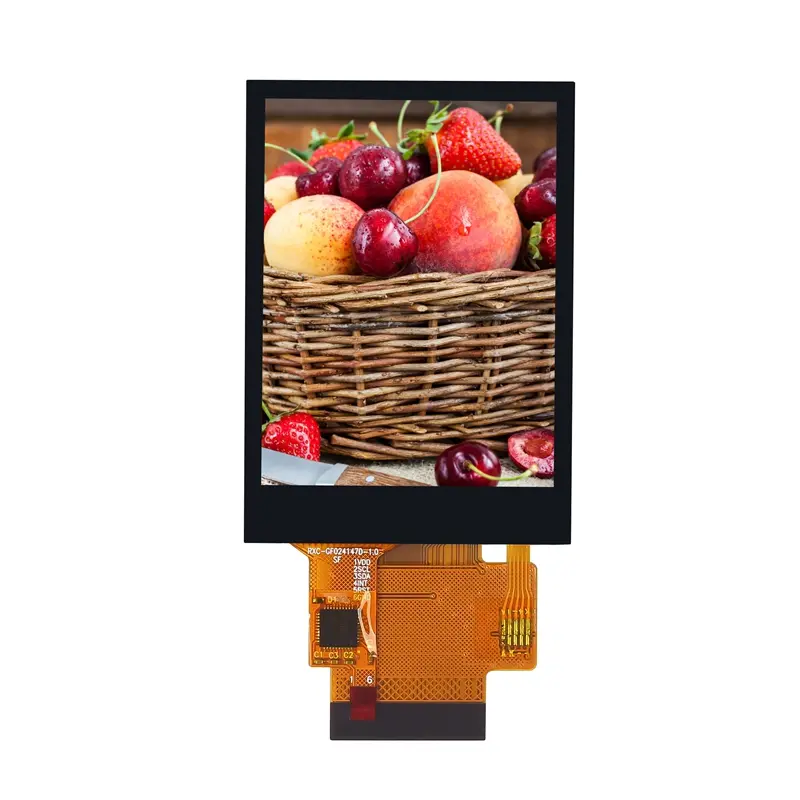

AT-T024HQI-01CP is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight. The 2.4″ display area contains 240 x 320 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7 | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~70 | ℃ | |
| Storage temperature | -30~80 | ℃ | |

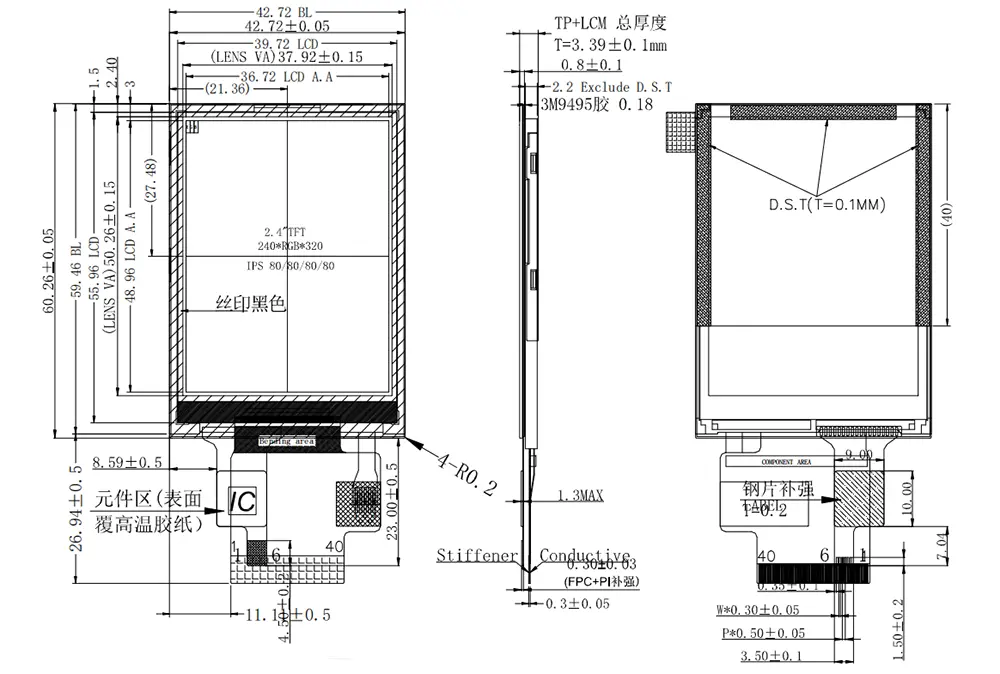

| Module size | 42.72×60.26×3.39 | mm | |
| Active Area(W×H) | 36.72（H)×48.96（V) | mm | |
| Number of Dots | 240×320 | dots | |
| LCM Controller | FT6236U | – | |
| Backlight | LED | pcs | customizable |
| Brightness | / | cd/m² | customizable |
| Interface | RGB | – | customizable |
| Connector | 40 | pins | customizable |
| Size | 2.4 |
| Resolution | 240*320 |
| Outline Size | 42.72*60.26 |
| Active Area | 36.72 *48.96 |
| Driver IC | FT6236U |
| Brightness | / |
| Interface | RGB |
| Viewing Angle | IPS |
