AT-T043BVS-06
AT-T043BVS-06
Product name: 4.3 inch TFT LCD Display
Model No.: AT-T043BVS-06
Display Type: TFT
Viewing Direction: ALL
Interface: RGB/MIPI
LCM Controller: ST7701S
Operating temperature: -30~80
Brightness(cd/m²): 300
Touch Screen: /
Share to:

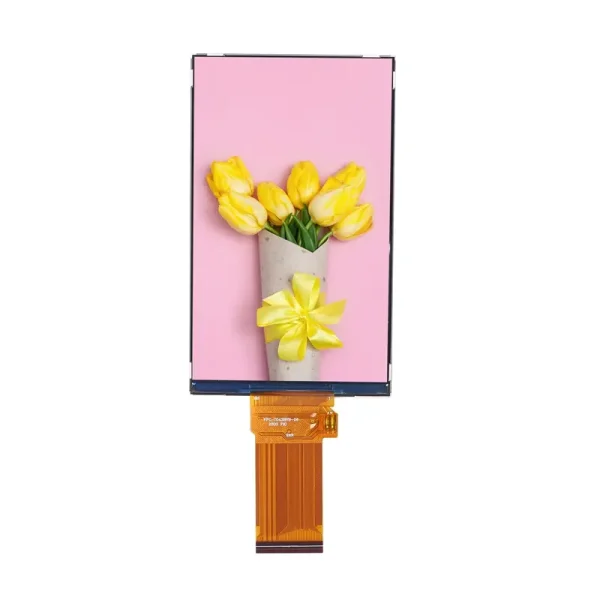

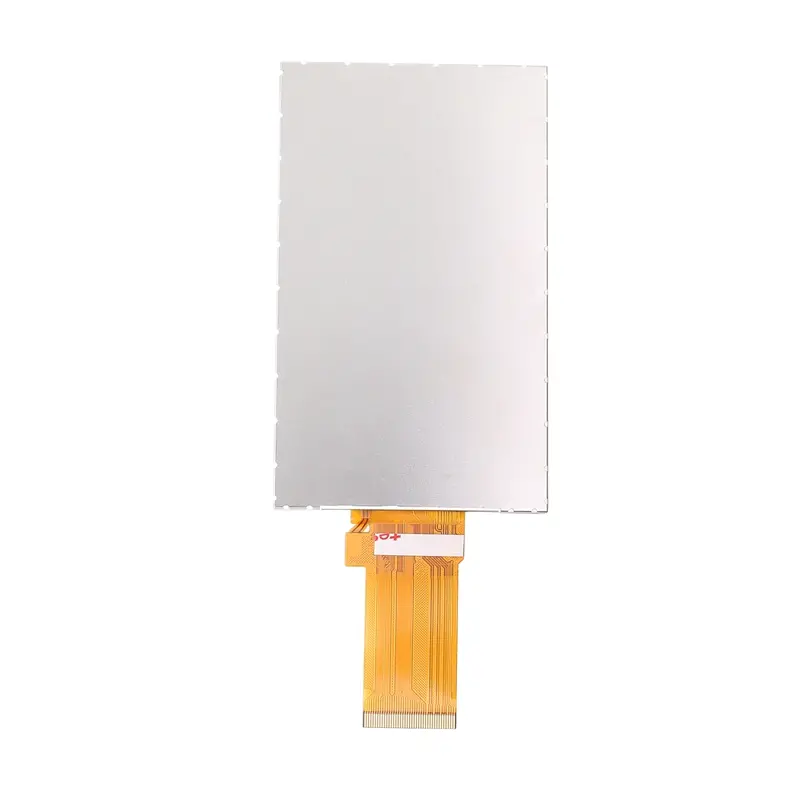

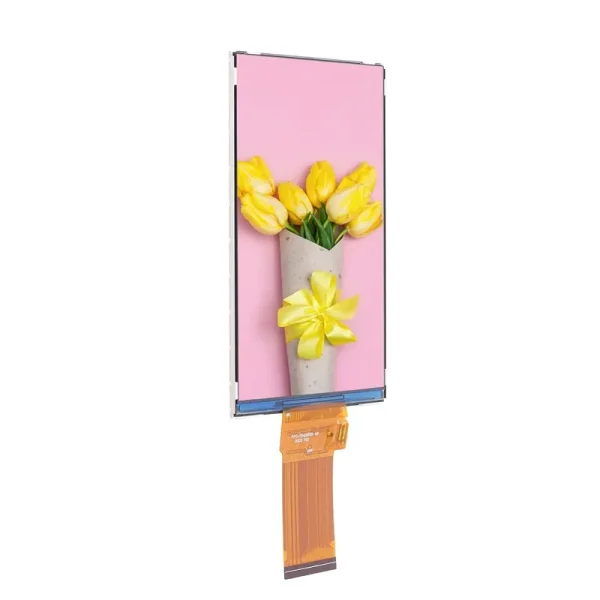

AT-T043BVS-06 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight. The 4.3″ display area contains 480 x 800 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7 | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -30~80 | ℃ | |
| Storage temperature | -20~70 | ℃ | |

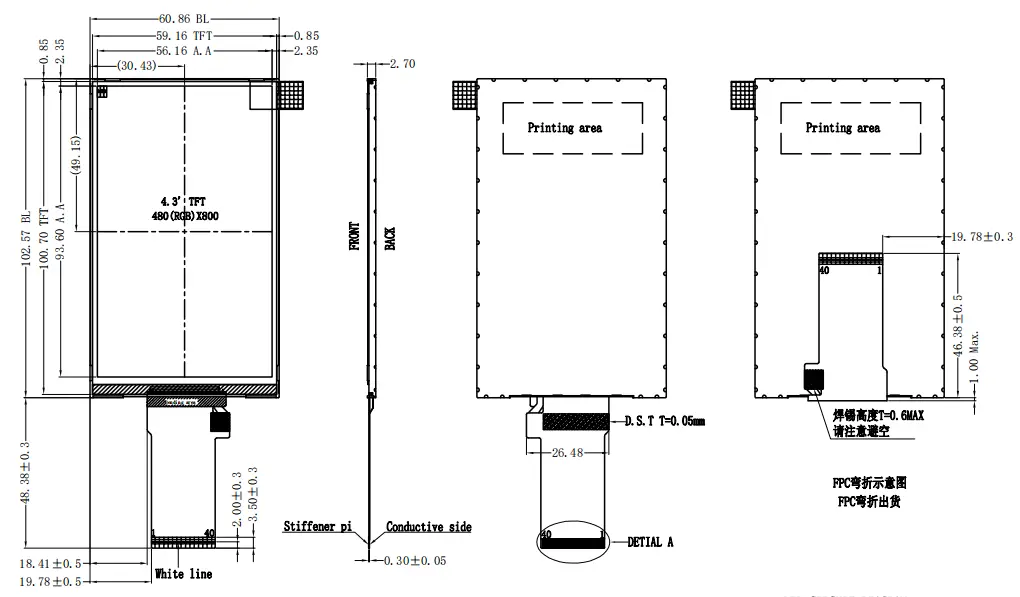

| Module size | 60.86×102.57×2.7 | mm | |
| Active Area(W×H) | 56.16（H)×93.6（V) | mm | |
| Number of Dots | 480×800 | dots | |
| LCM Controller | ST7701S | – | |
| Backlight | LED | pcs | customizable |
| Brightness | 300 | cd/m² | customizable |
| Interface | RGB/MIPI | – | customizable |
| Connector | 40 | pins | customizable |
| Size | 4.3 |
| Resolution | 480*800 |
| Outline Size | 60.86*102.57 |
| Active Area | 56.16 *93.6 |
| Driver IC | ST7701S |
| Brightness | 300 |
| Interface | RGB/MIPI |
| Viewing Angle | IPS |
