AT185WHB-N22
AT185WHB-N22
Product name: 18.5inch TFT LCD display
Model No.: AT185WHB-N22
Display Type： 18.5“TFT
Viewing Direction： All
Interface： LCM Controller
LCM Controller： /
Operating temperature： 0~+50℃
Brightness(cd/m²)： 1000cd/m²
Touch Screen： Without touch screen
Share to:
AT185WHB-N22 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit. The 18.5″ display area contains 1366 x (RGB) x768 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | 0~+50 | ℃ | |
| Storage temperature | -20~+60 | ℃ | |

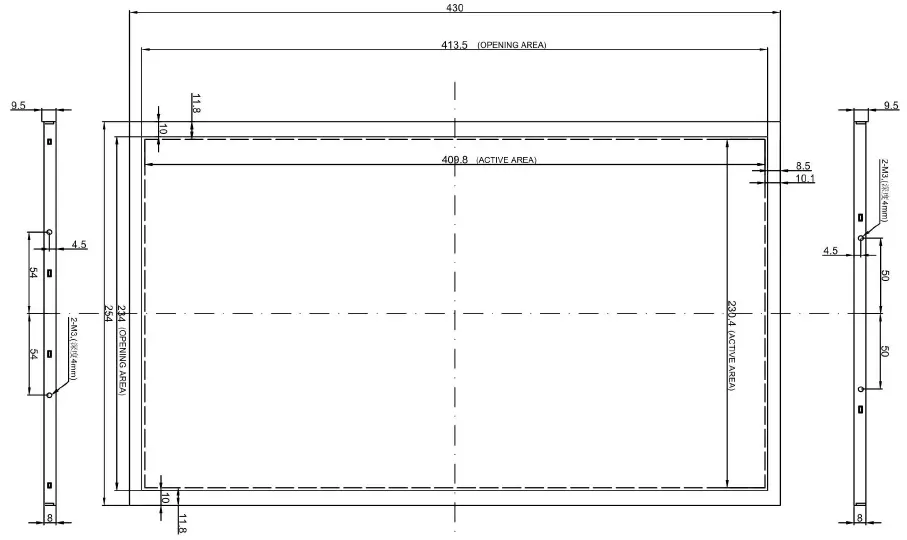

| Module size | 430X254X9.5 | mm | |
| Active Area(W×H) | 409.8(W)X230.4(H) | mm | |
| Number of Dots | 1368*768 | dots | |
| LCM Controller | / | – | |
| Backlight | LEDs (white) | pcs | customizable |
| Brightness | 1000 | cd/m² | customizable |
| Interface | LVDS | – | |
| Connector | 30 | pins | customizable |
| Size | 18.5 |
| Resolution | 1366*768 |
| Outline Size | 430*254 |
| Active Area | 409.8*230.4 |
| Driver IC | N/A |
| Brightness | 1000 |
| Interface | LVDS |
| Viewing Angle | IPS |
