AT175GRFK-01A350
AT175GRFK-01A350
Product name: 1.75inch TFT LCD display
Model No.: AT175GRFK-01A350
Display Type: 1.75“TFT
Viewing Direction: Wide Viewing
Interface: SPI+RGB
LCM Controller: ILI9342
Operating temperature: 70~-20
Brightness(cd/m²): 350
Touch Screen: /
Share to:

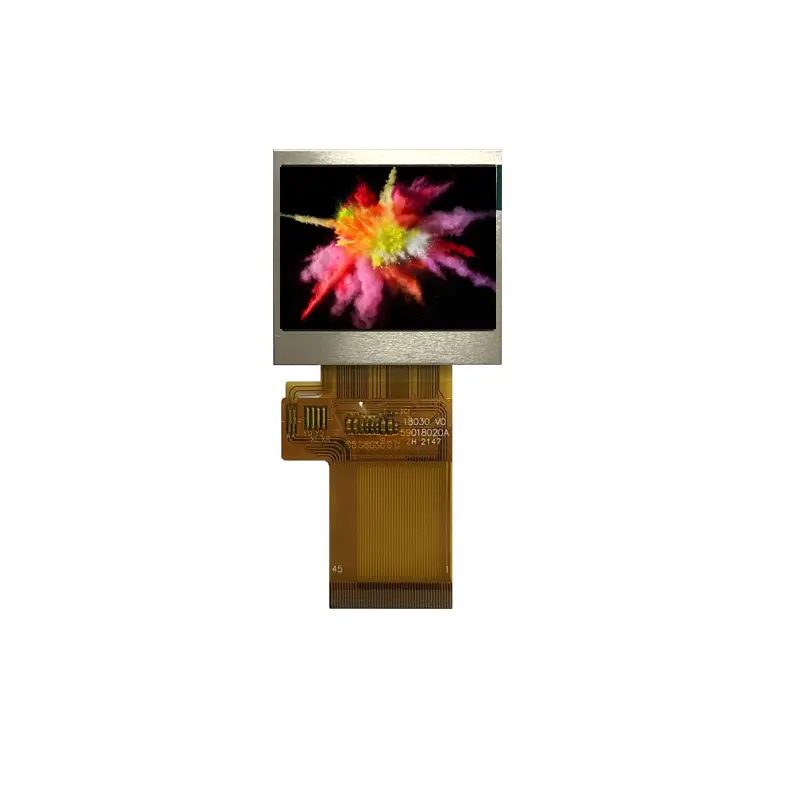

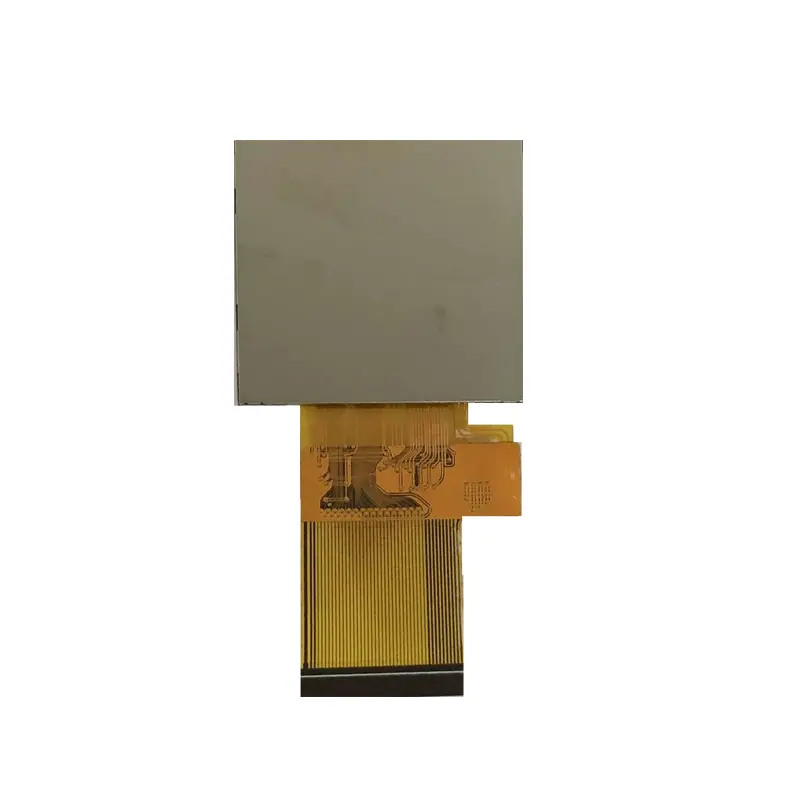

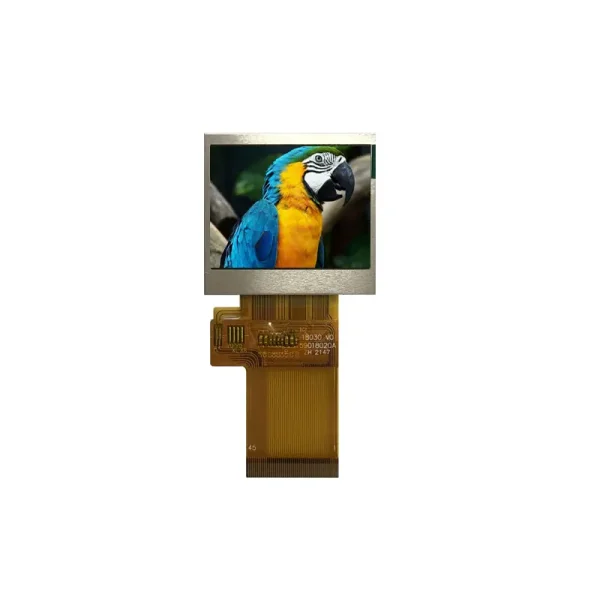

AT175GRFK-01A350 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit. The 1.75″ display area contains 296 x 222 pixels and can display up to 262K colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 262K | ||
| Viewing Direction | Wide Viewing | O’Clock | |
| Operating temperature | 70~-20 | ℃ | |
| Storage temperature | 80~-30 | ℃ | |

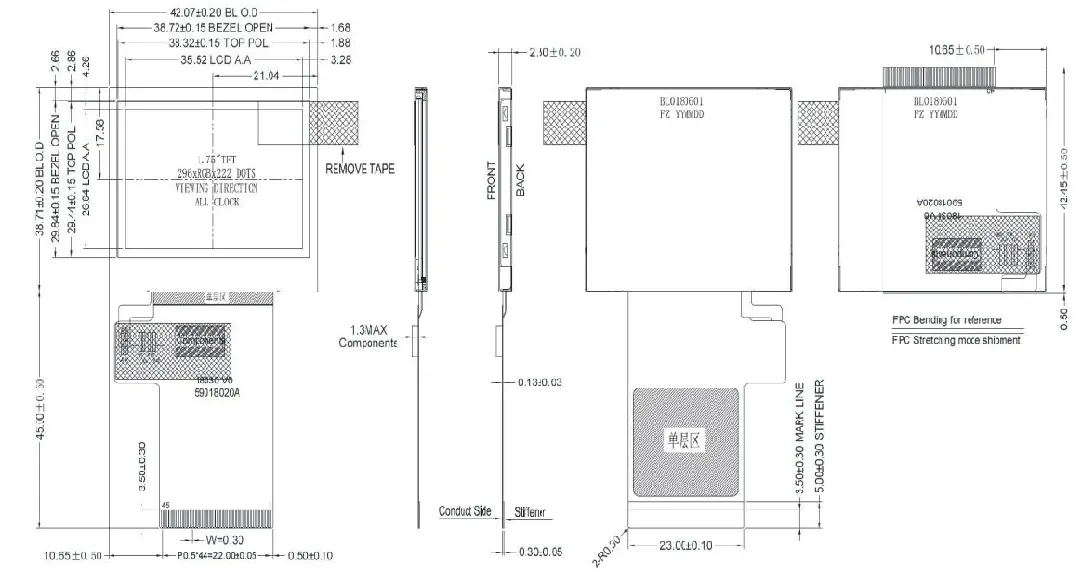

| Module size | 36.72 | mm | |
| Active Area(W×H) | 35.52×26.64 | mm | |
| Number of Dots | 296×222 | dots | |
| LCM Controller | ILI9342 | – | |
| Backlight | LED White | pcs | customizable |
| Brightness | 350 | cd/m² | customizable |
| Interface | MIPI | – | |
| Connector | 45 | pins | customizable |
| Size | 1.75 |
| Resolution | 296*222 |
| Outline Size | 35.52*26.64*2.20 |
| Active Area | 42.07 *38.71 |
| Driver IC | ILI9342 |
| Brightness | 350 |
| Interface | RGB/MCU/SPI |
| Viewing Angle | Wide Viewing |
