Product name: 15.0inch TFT LCD display
Model No.: AT150BEID-01A220
Display Type： 15.0“TFT
Viewing Direction： ALL
Interface： EDP
LCM Controller： /
Operating temperature： 50 ~ 0
Brightness(cd/m²)： 220
Touch Screen： /
Share to:

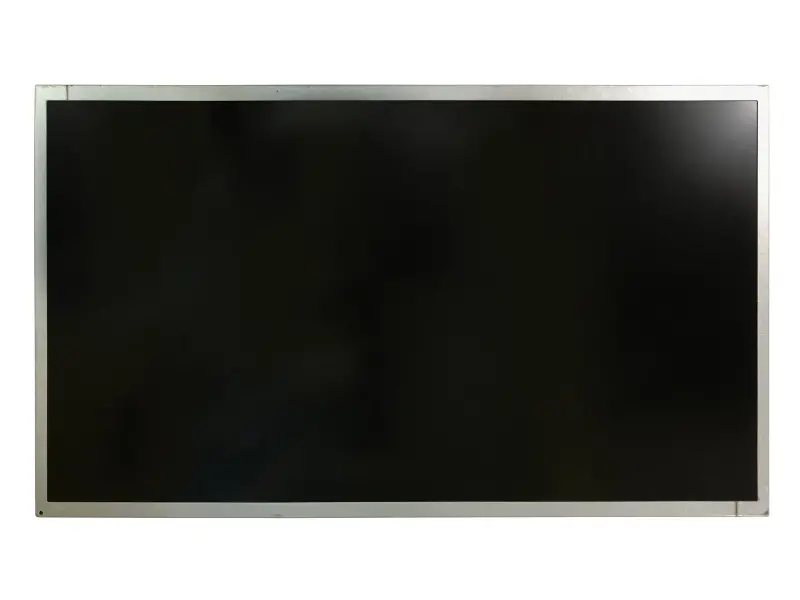

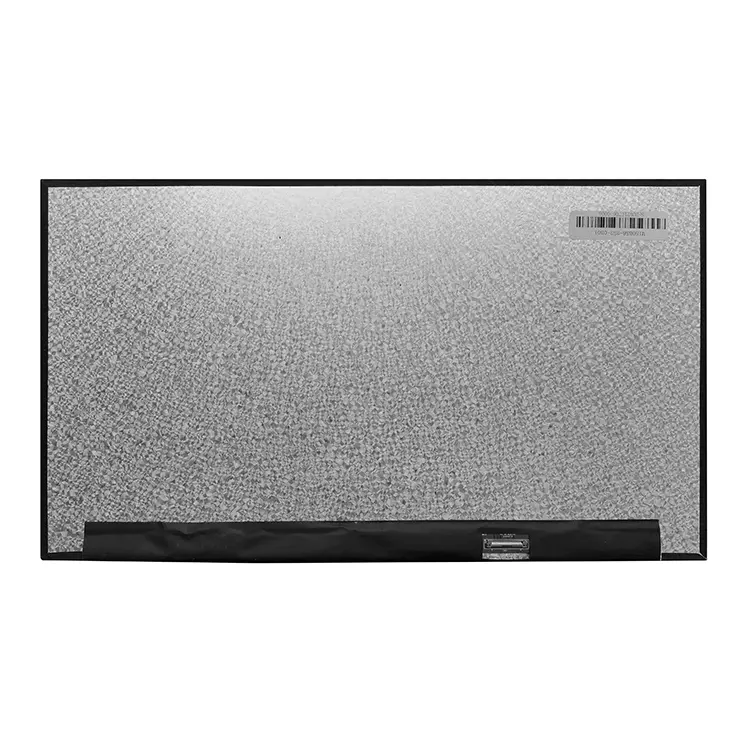

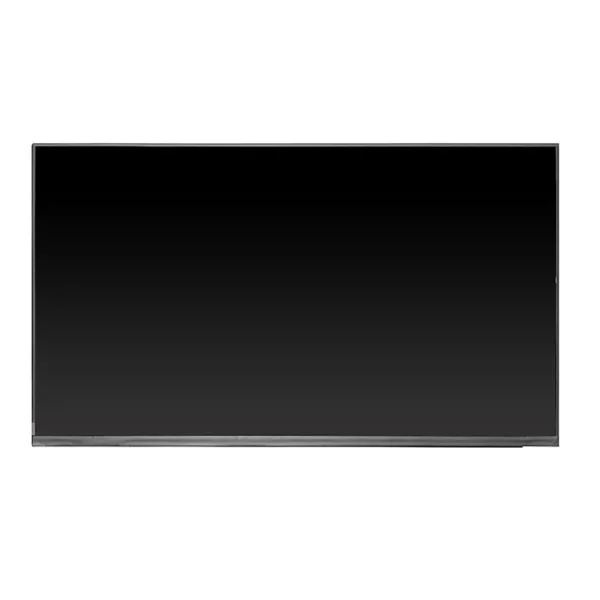

AT150BEID-01A220 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light unit. The 15.0”display area contains 1920 x 1080 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | 50~0 | ℃ | |
| Storage temperature | 60~-20 | ℃ | |
| Module size | 339.26 | mm | |
| Active Area(W×H) | 332.06×187.79 | mm | |
| Number of Dots | 1920×1080 | dots | |
| LCM Controller | / | – | |
| Backlight | LED | pcs | customizable |
| Brightness | 220 | cd/m² | customizable |
| Interface | EDP | – | |
| Connector | 30 | pins | customizable |
| Size | 15 |
| Resolution | 1920*1080 |

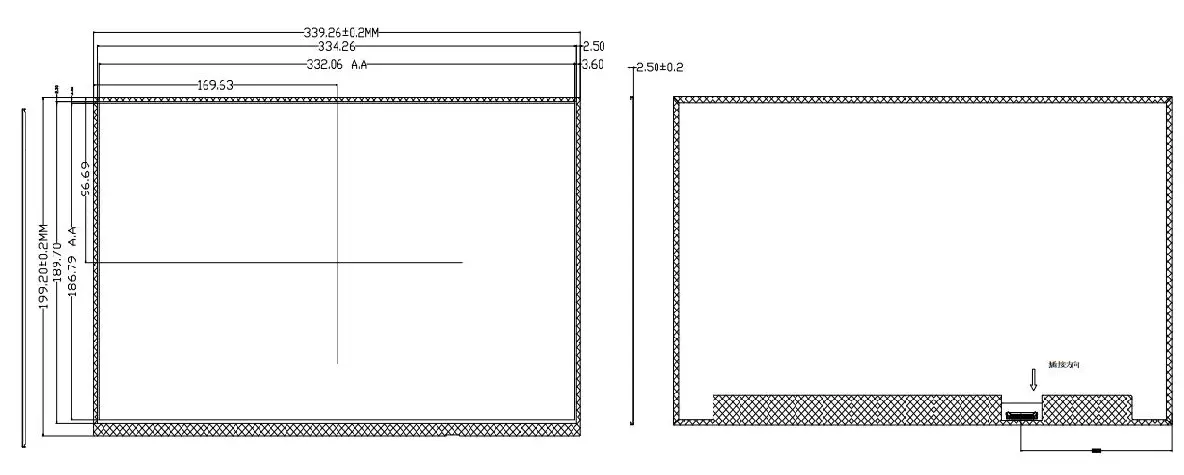

| Outline Size | 339.26*199.2 |
| Active Area | 322.064 *186.786 |
| Driver IC | N/A |
| Brightness | 220 |
| Interface | eDP |
| Viewing Angle | IPS |
