AT-T057BGEA-01
AT-T057BGEA-01
Product name: 5.7inch TFT LCD display
Model No.: AT-T057BGEA-01
Display Type: 5.7“TFT
Viewing Direction: ALL
Interface: RGB
LCM Controller: JD9168S
Operating temperature: 70 ~ -20
Brightness(cd/m²): 650
Touch Screen: /
Share to:

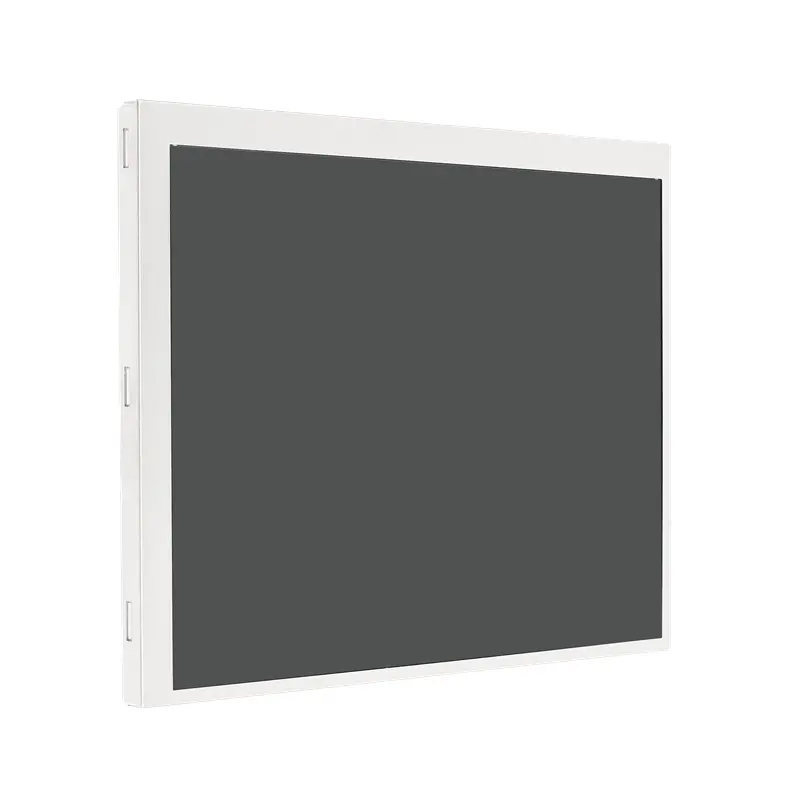

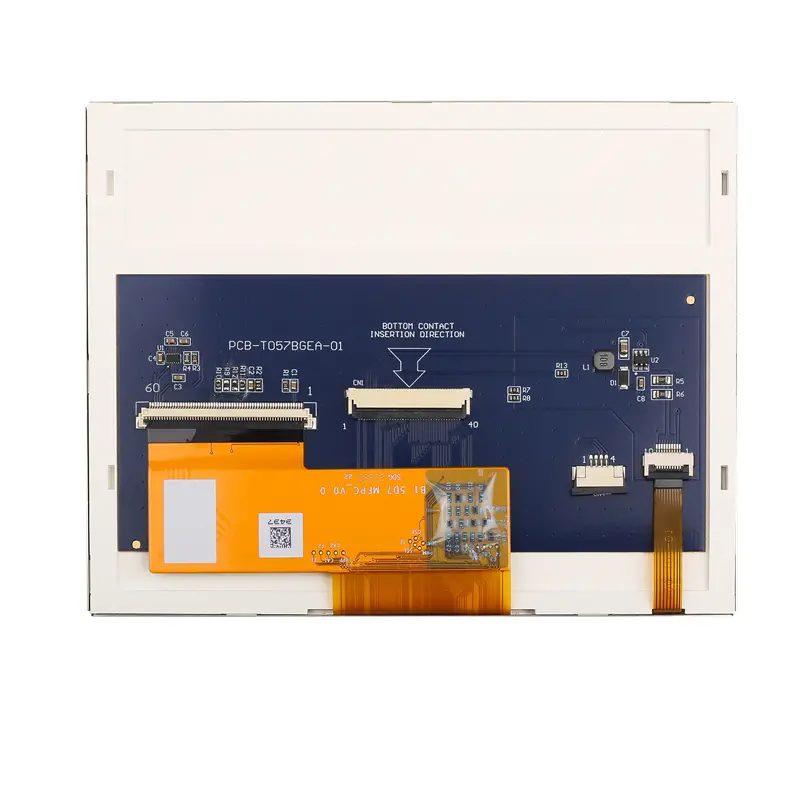

AT-T057BGEA-01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light unit. The 5.7”display area contains 640 x(RGB)×480 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | 70~ -20 | ℃ | |
| Storage temperature | 80~ -30 | ℃ | |
| Module size | 127.00 | mm | |
| Active Area(W×H) | 115.20×86.40 | mm | |
| Number of Dots | 640×480 | dots | |
| LCM Controller | JD9168S | – | |
| Backlight | LED | pcs | customizable |
| Brightness | 650 | cd/m² | customizable |
| Interface | RGB | – | |
| Connector | 40 | pins | customizable |
| Size | 5.7 |
| Resolution | 640*480 |

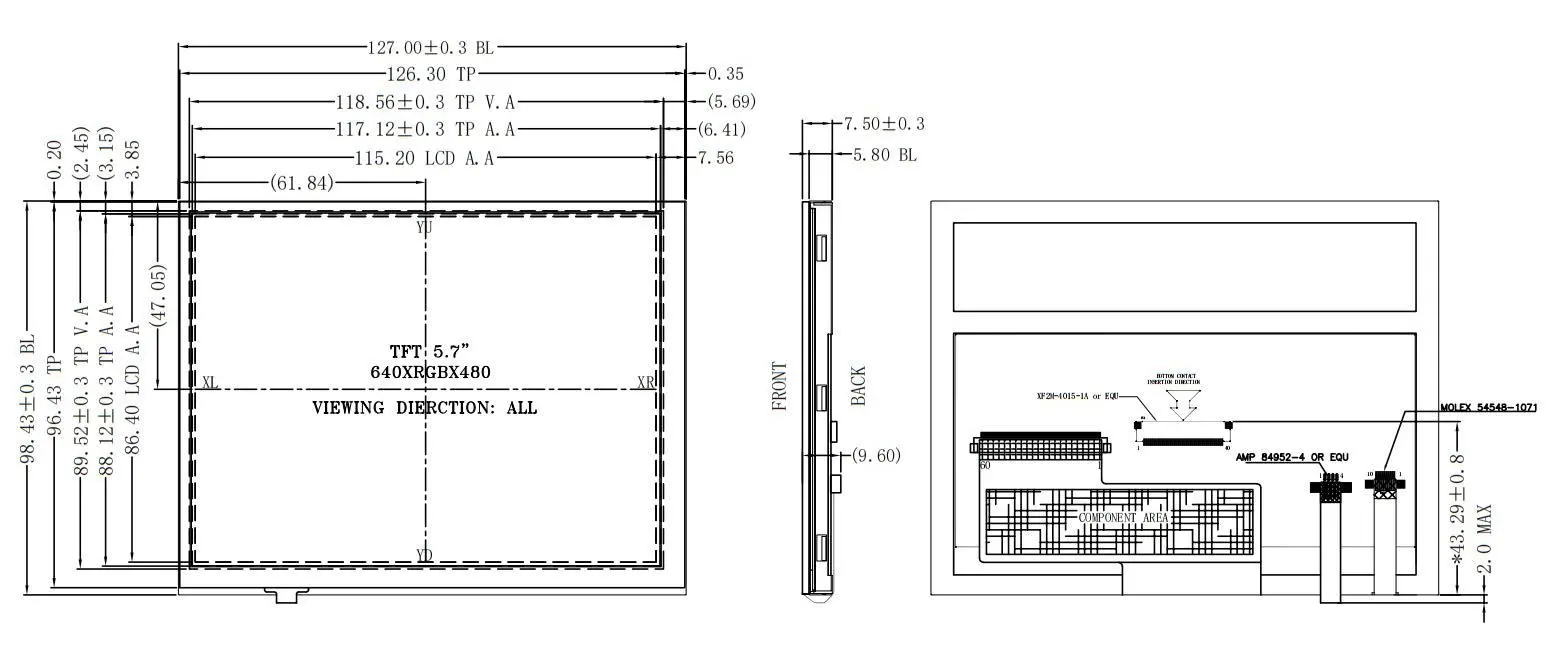

| Outline Size | 127*98.43 |
| Active Area | 115.2 * 86.4 |
| Driver IC | JD9168 |
| Brightness | 500 |
| Interface | RGB |
| Viewing Angle | IPS |
