AT-T035HLS-01
AT-T035HLS-01
Product name: 3.5 inch TFT LCD display
Model No.: AT-T035HLS-01
Display Type TFT, transmissive
Viewing Direction ALL
Interface RGB
LCM Controller ST7272A
Operating temperature -20~+70℃
Brightness(cd/m²) 300 cd/m²
Touch Screen option
Share to:

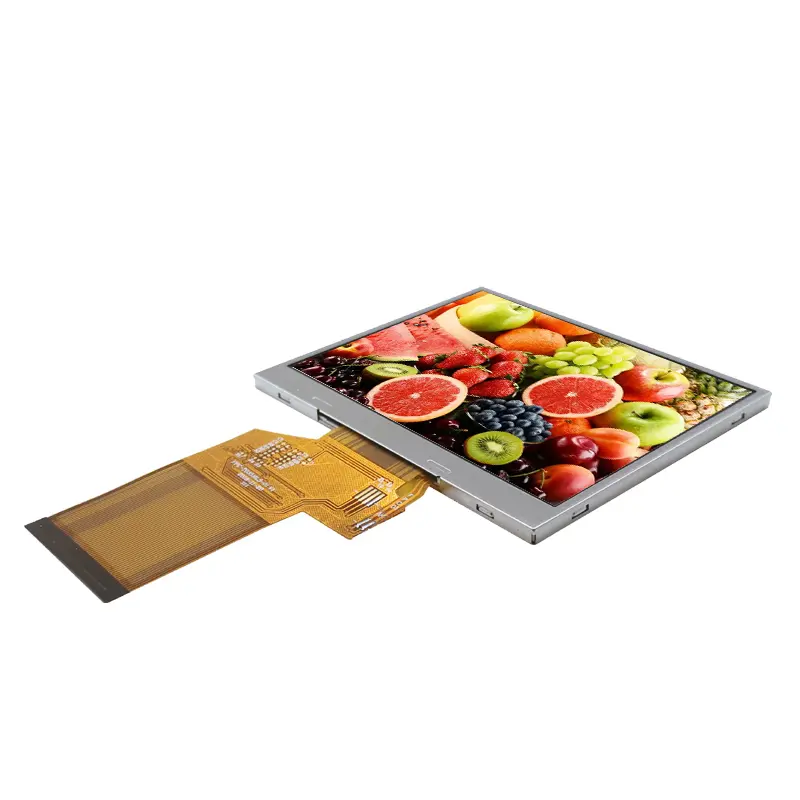

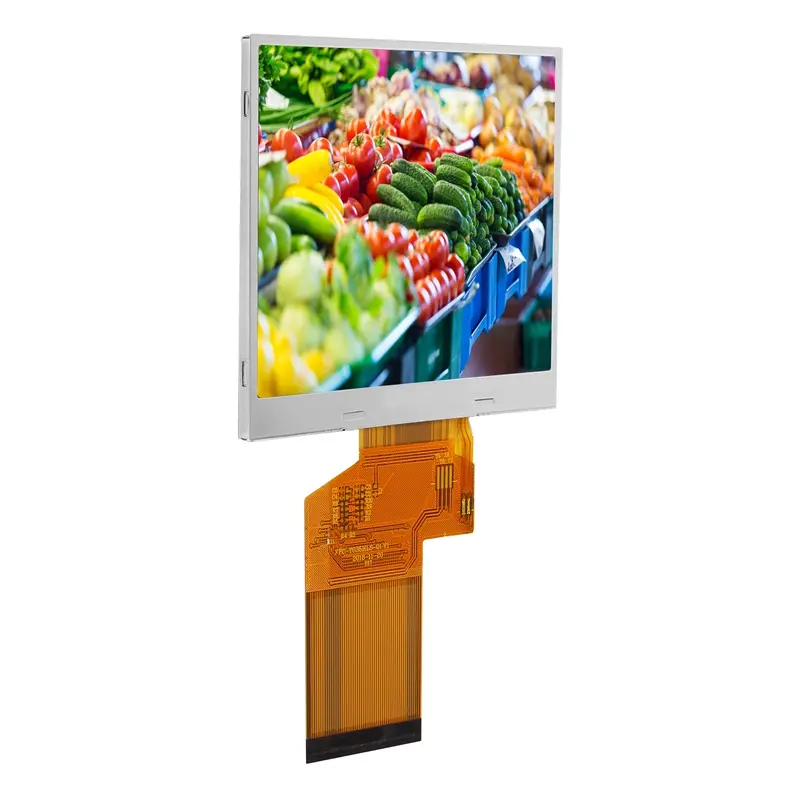

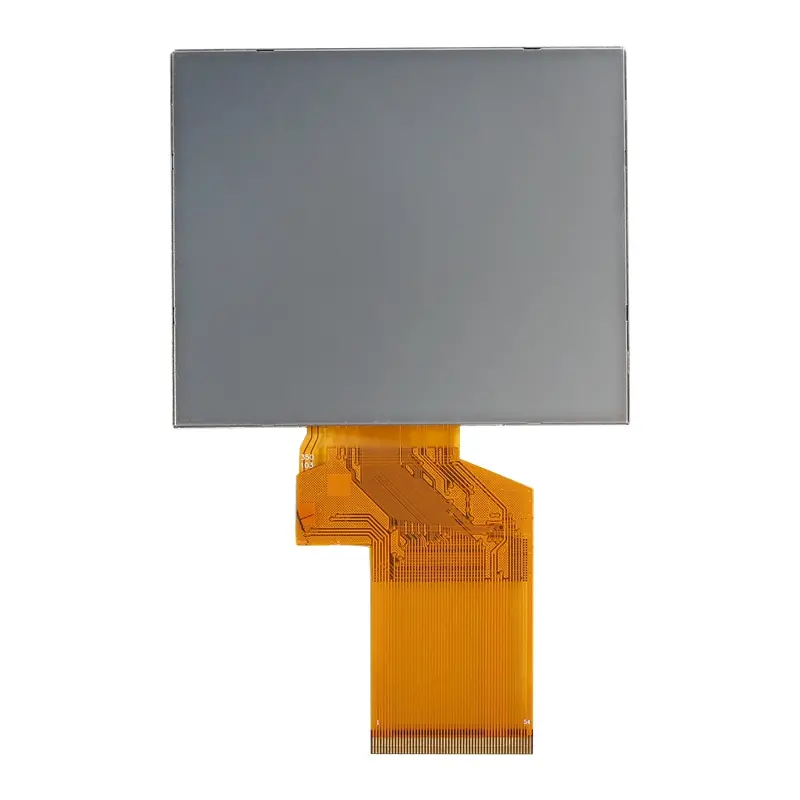

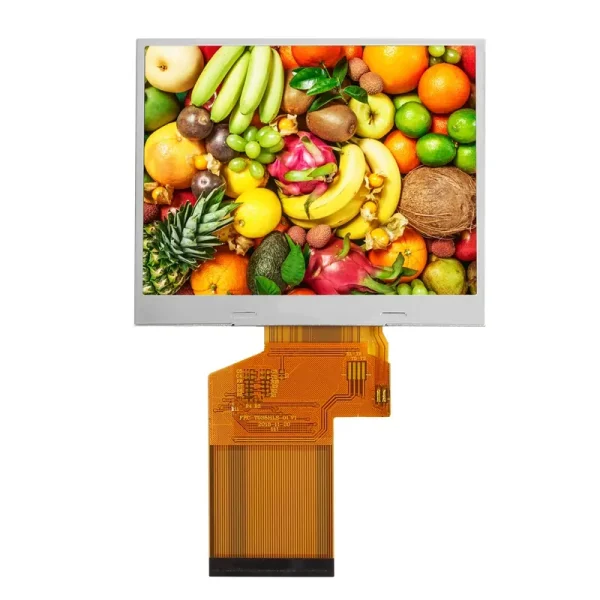

AT-T035HLS-01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight. The 3.5″ display area contains 320 x (RGB) x 240 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |

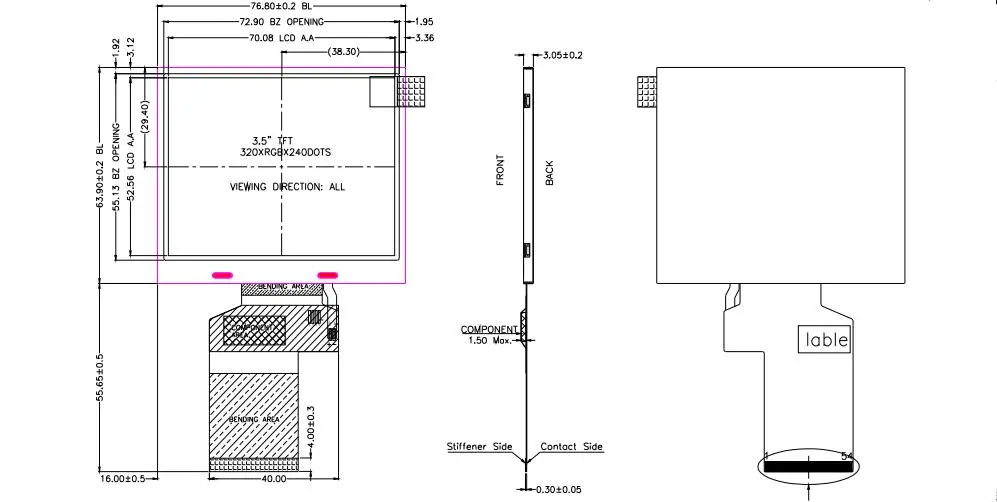

| Module size | 76.80X63.90X3.05 | mm | |
| Active Area(W×H) | 72.90(W)X52.56(H) | mm | |
| Number of Dots | 320*240 | dots | |
| LCM Controller | ST7272A | – | |
| Backlight | 6 LEDs (white) | pcs | customizable |
| Brightness | 300 | cd/m² | customizable |
| Interface | RGB | – | |
| Connector | 54 | pins | customizable |
| Size | 3.5 |
| Resolution | 320*240 |
| Outline Size | 76.8*63.9 |
| Active Area | 70.08*52.56 |
| Driver IC | ST7272A |
| Brightness | 300 |
| Interface | RGB |
| Viewing Angle | IPS |
| Remark | RTP/CTP |
