AT020HMISA-300
AT020HMISA-300
Product name: 2.0inch TFT LCD display
Model No.: AT020HMISA-300
Display Type TFT, IPS
Viewing Direction ALL
Interface MIPI
LCM Controller ST7701S
Operating temperature -20~+70℃
Brightness(cd/m²) 330cd/m²
Touch Screen Without touch screen
Share to:

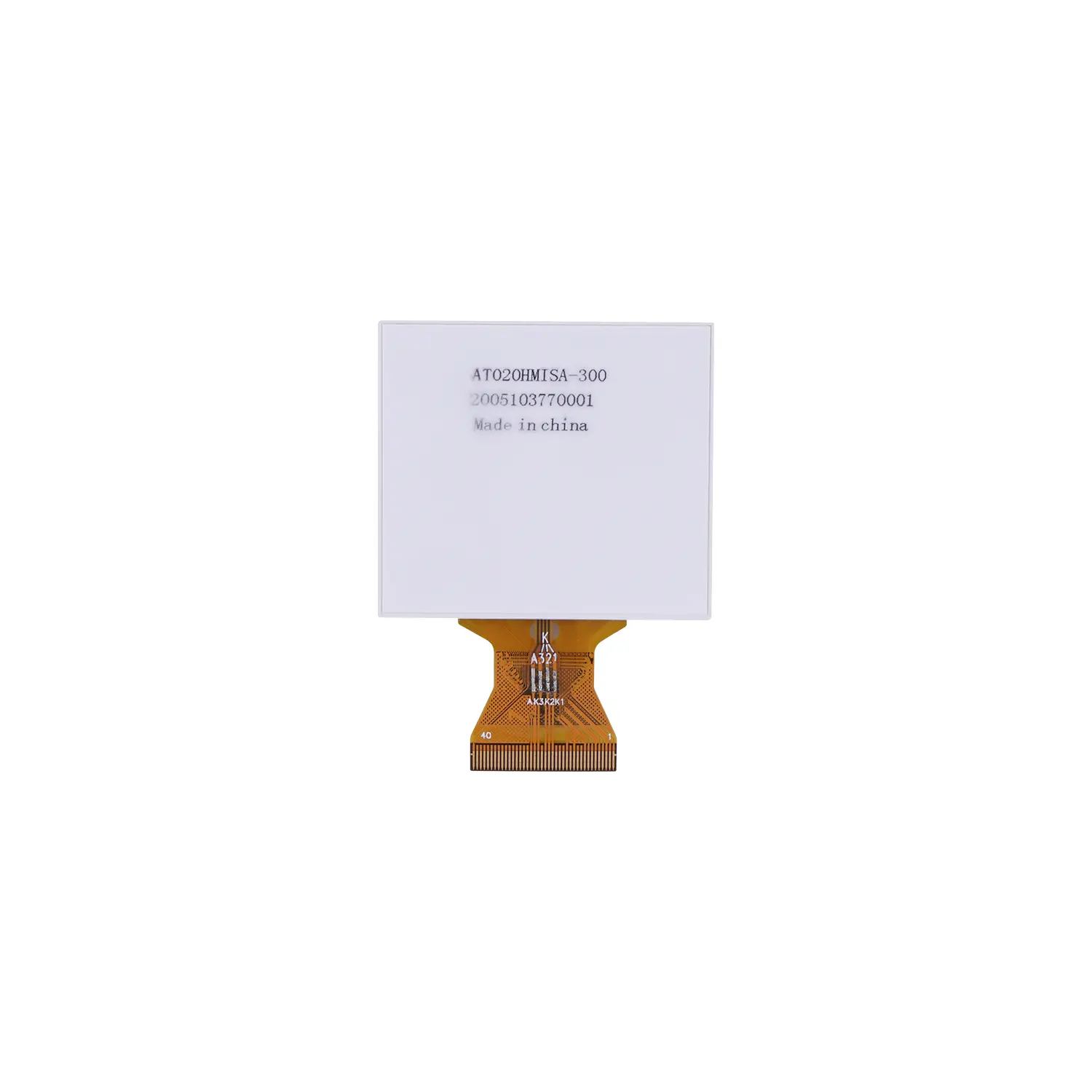

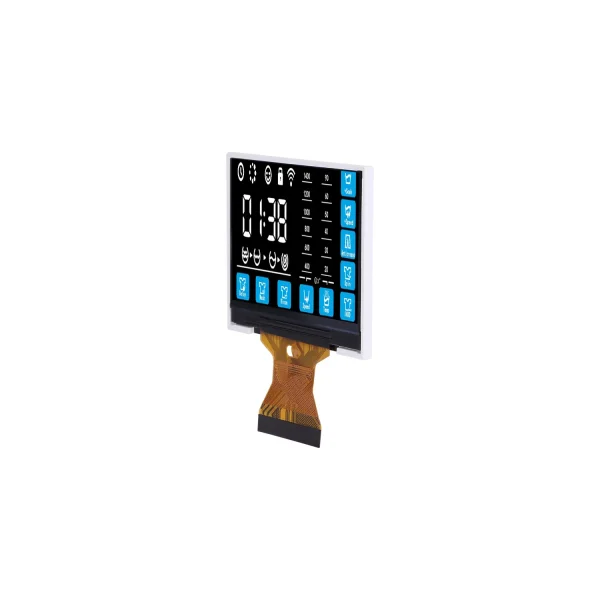

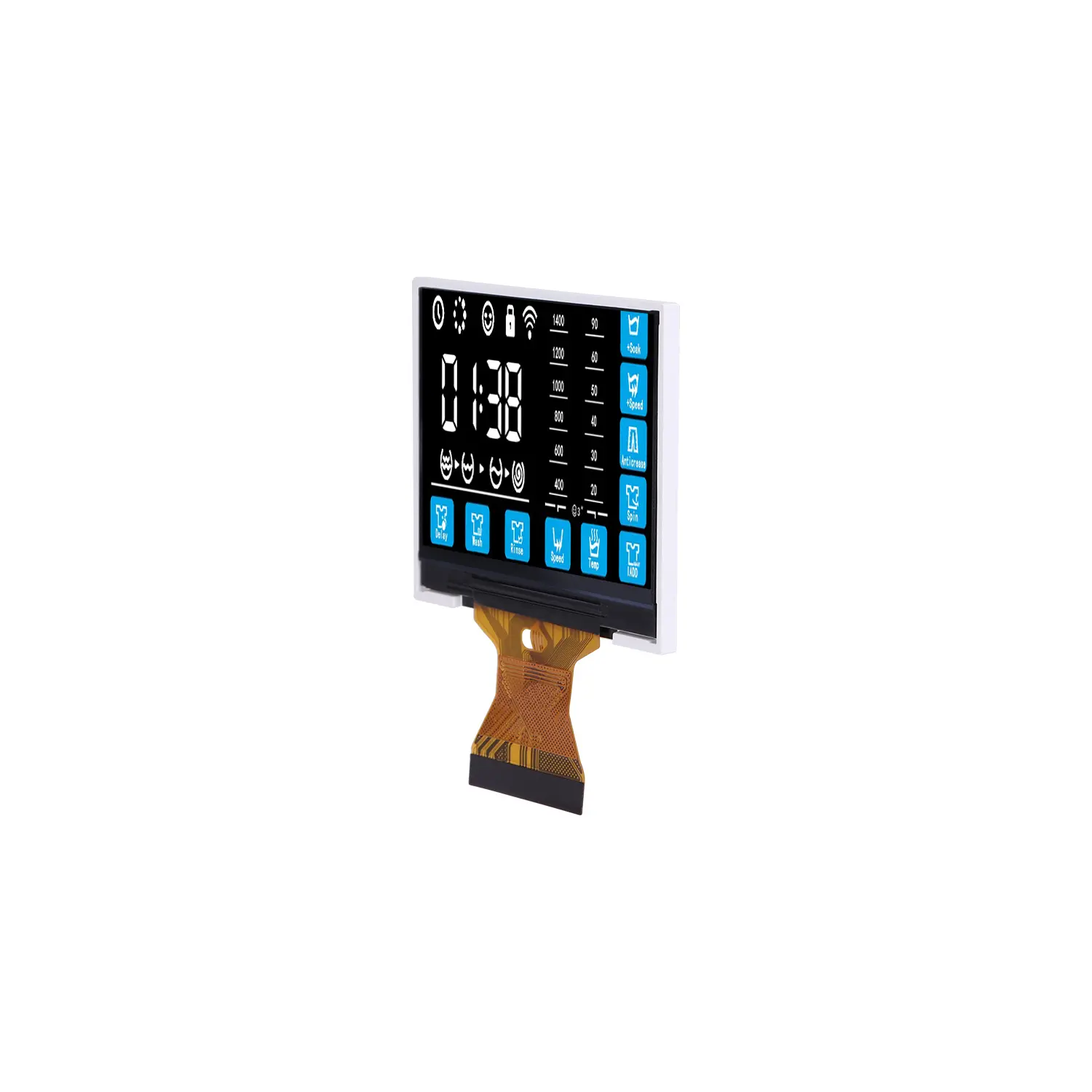

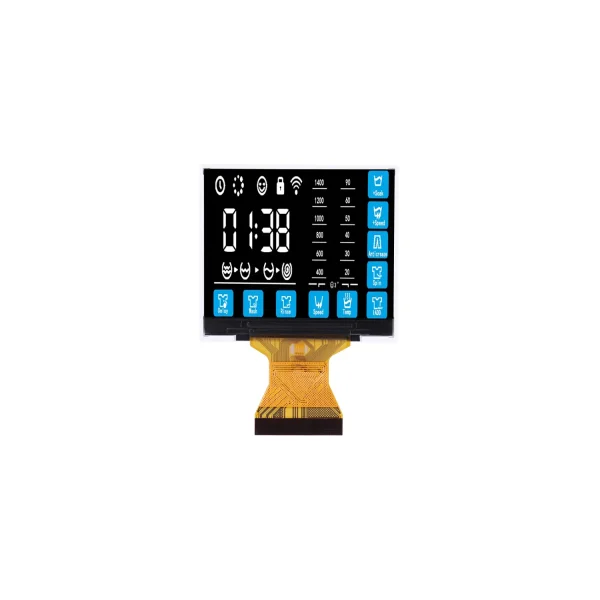

AT020HMISA-300 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,and a back light. The 2.0″ display are a contains 480X360 pixels and can display up to 16M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |

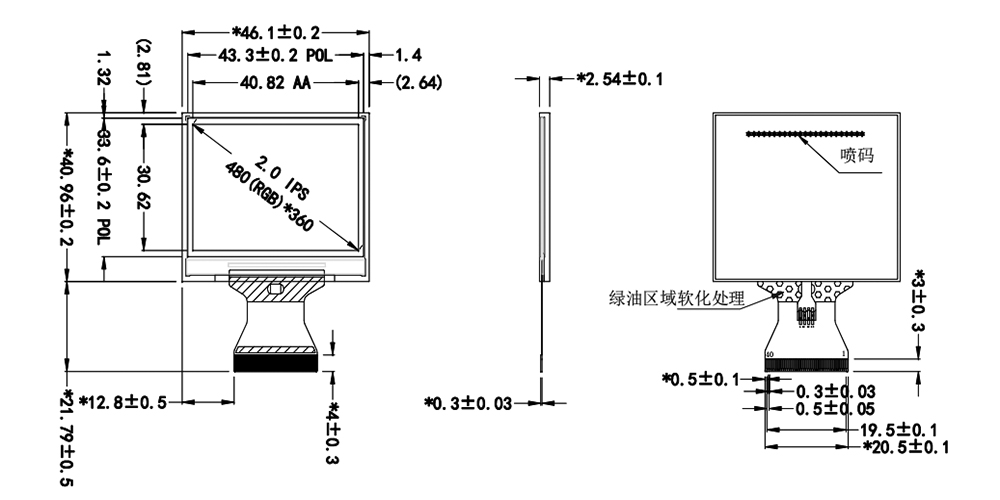

| Module size | 46.10X40.96X2.54 | mm | |
| Active Area(W×H) | 40.82(W)X30.62(H) | mm | |
| Number of Dots | 480X360 | dots | |
| LCM Controller | ST7701S | – | |
| Backlight | 3P-LEDs (white) | pcs | customizable |
| Brightness | 330 | cd/m² | customizable |
| Interface | MIPI | – | |
| Connector | 40 | pins | customizable |
| Size | 2.0 |
| Resolution | 480*360 |
| Outline Size | 46.1*40.96 |
| Active Area | 40.82*30.62 |
| Driver IC | ST7701S |
| Brightness | 330 |
| Interface | MIPI |
| Viewing Angle | IPS |
