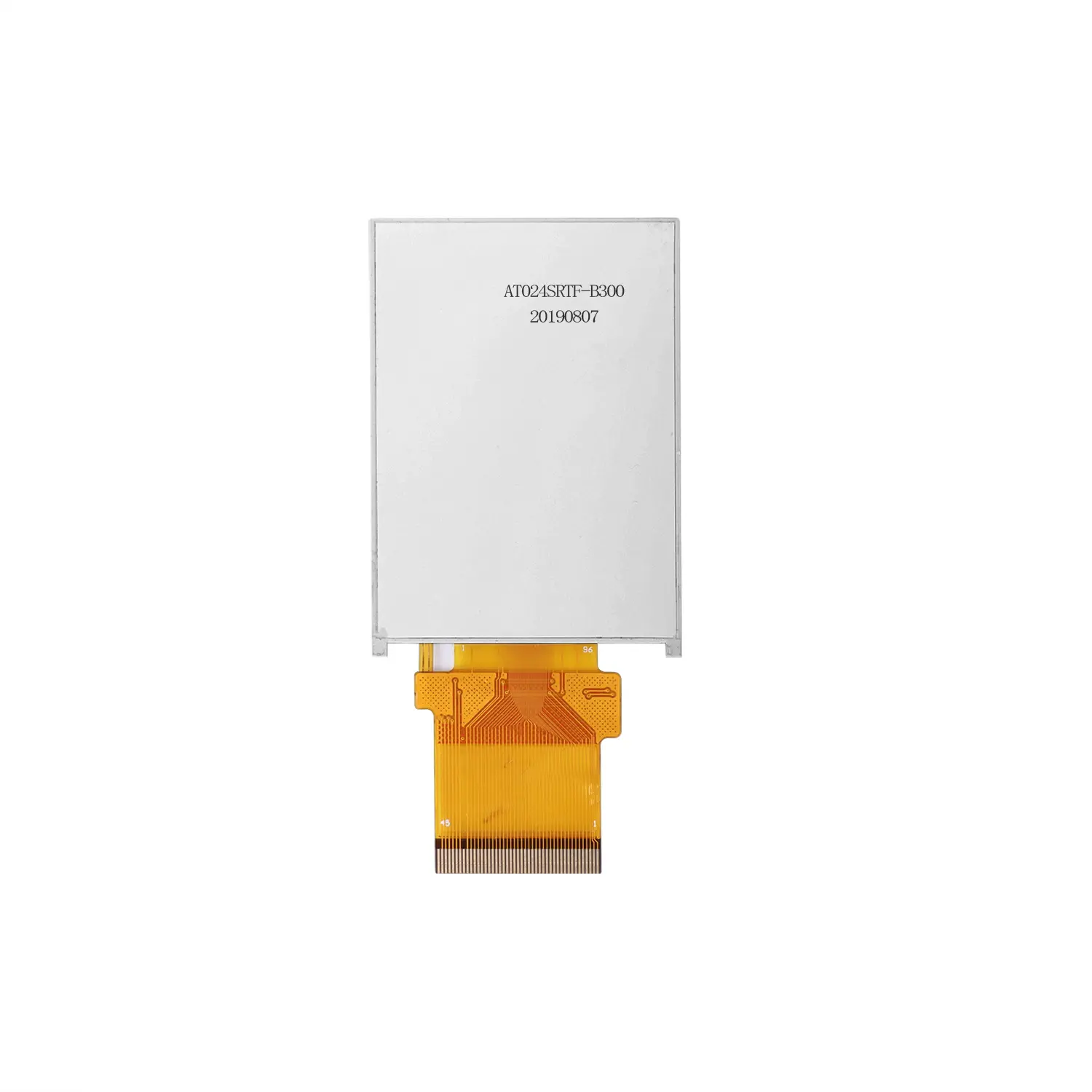

AT024SRTF-B300
AT024SRTF-B300

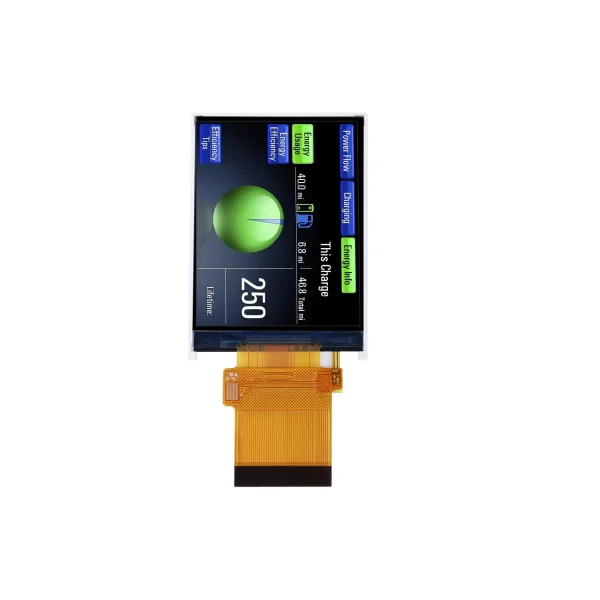

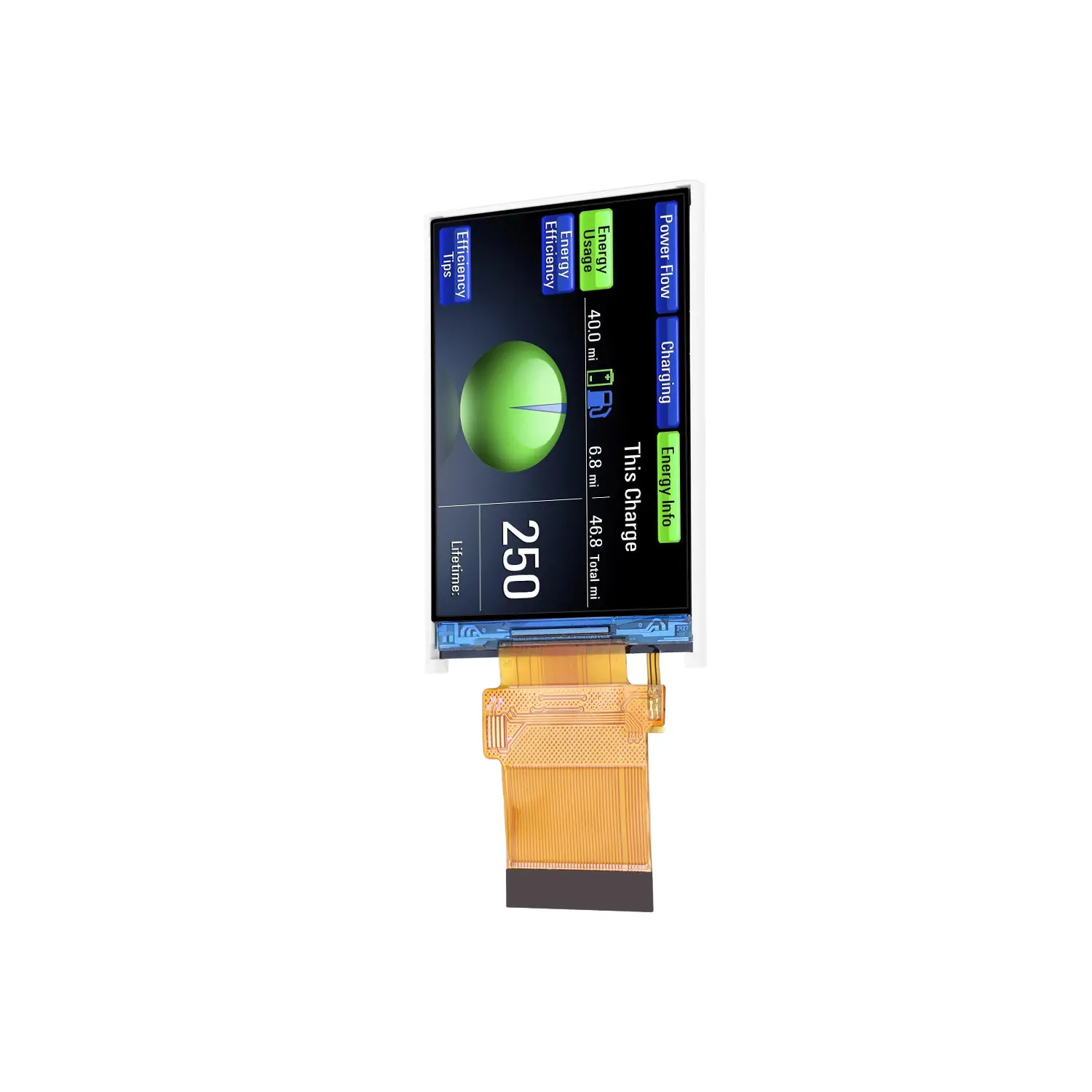

Product name: 2.4 inch TFT LCD display
Model No.: AT-024SRTF-A300
Display Type TFT
Viewing Direction 6 O’clock
Interface MCU;RGB;SPI
LCM Controller ST7789V
Operating temperature -20~+70℃
Brightness(cd/m²) 300 cd/m²
Touch Screen option
Share to:
AT-024SRTF-A300 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight. The 2.4″ display are a contains 240 x (RGB) x 320 pixels and can display up to 262K colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 262K | ||
| Viewing Direction | 6 | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |
| Module size | 42.72X60.26X2.25 | mm | |
| Active Area(W×H) | 36.72(W)X48.96(H) | mm | |
| Number of Dots | 240*320 | dots | |
| LCM Controller | ST7789V | – | |
| Backlight | 4 LEDs (white) | pcs | customizable |
| Brightness | 300 | cd/m² | customizable |
| Interface | MCU;RGB;SPI | – | |
| PIN No | 45 | pins | customizable |
| Size | 2.4 |
| Resolution | 240*320 |
| Outline Size | 42.72*60.26 |
| Active Area | 36.72*48.96 |
| Driver IC | ST7789V |
| Brightness | 300 |
| Interface | MCU/RGB/SPI |
| Viewing Angle | 6:00 o’clock |
| Remark |
