AT-T070SWH-03CP
AT-T070SWH-03CP
Product name: 7inch TFT LCD display
Model No.: AT-T070SWH-03CP
Display Type TFT, TN
Viewing Direction 12 O’clock
Interface RGB
LCM Controller HX8664&HX8262
Operating temperature -20~+70℃
Brightness(cd/m²) 420cd/m²
Touch Screen With touch screen
Share to:

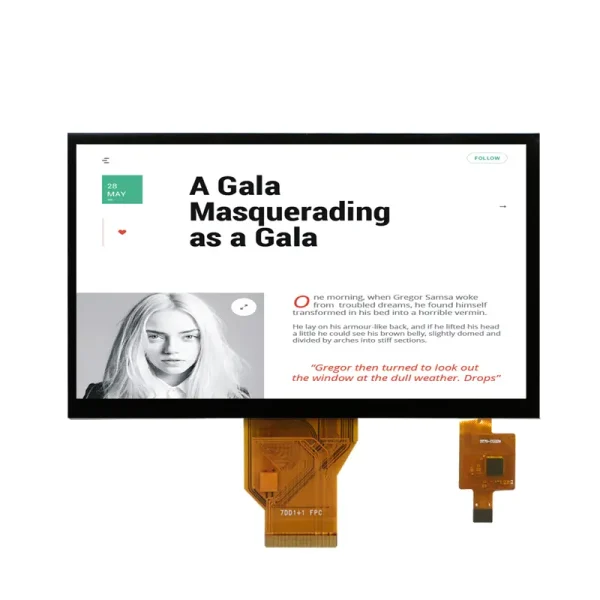

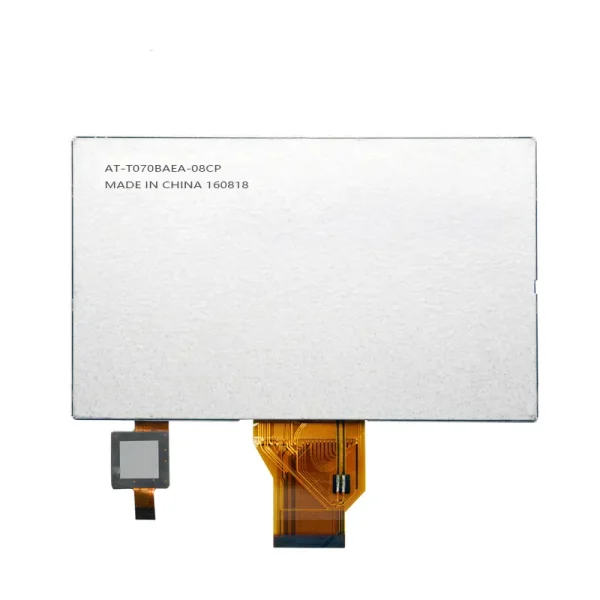

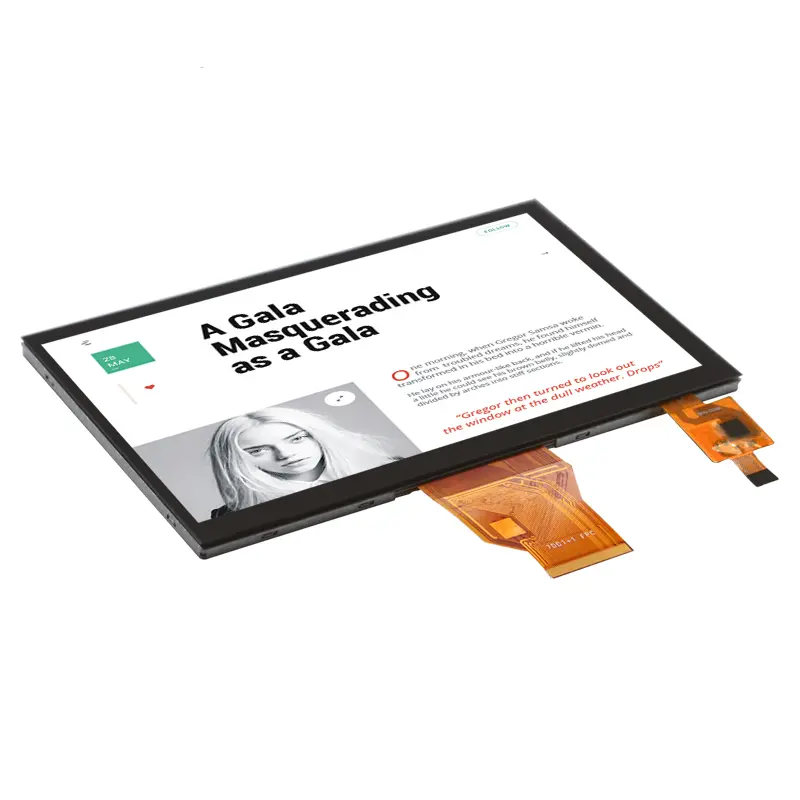

AT-T070SWH-03CP is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light and CTP unit. The 7.0″ display area contains 800 x (RGB) x 480 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | 12 | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |

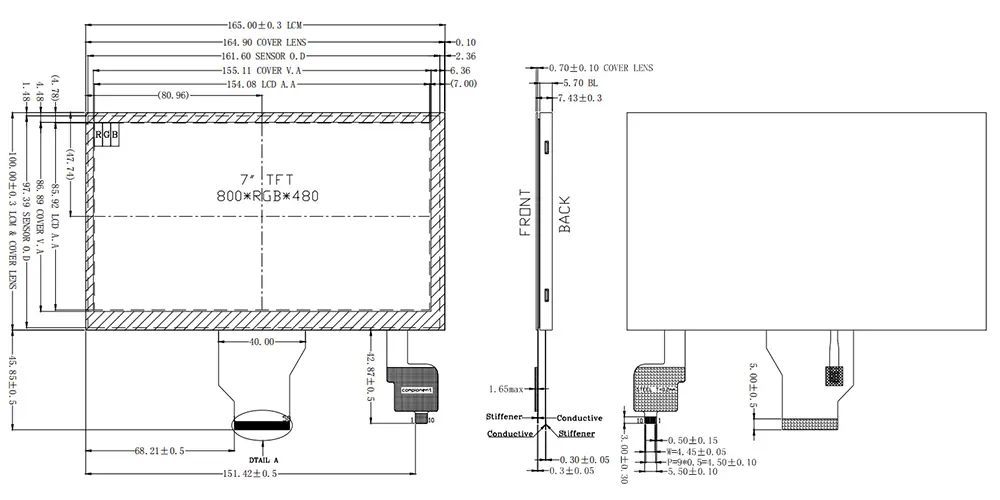

| Module size | 165.00X100.00X7.43 | mm | |
| Active Area(W×H) | 154.08(W)X85.92(H) | mm | |
| Number of Dots | 800X480 | dots | |
| LCM Controller | HX8664&HX8262 | – | |
| Backlight | 27 | pcs | customizable |
| Brightness | 420 | cd/m² | customizable |
| Interface | RGB | – | |
| Connector | 50 | pins | customizable |
| Size | 7 |
| Resolution | 800*480 |
| Outline Size | 165*100 |
| Active Area | 154.08*85.92 |
| Driver IC | HX8664 |
| Brightness | 420 |
| Interface | RGB |
| Viewing Angle | 12:00 o’clock |
| Remark | CTP |
