AT-T144HDS-01
AT-T144HDS-01
Product name: 1.44inch TFT LCD display
Model No.: AT-T144HDS-01
Display Type TFT, TN
Viewing Direction 6:00 O’Clock
Interface MCU-8bit
LCM Controller ST7735S
Operating temperature ‘-20~+70℃
Brightness(cd/m²) 200cd/m²
Touch Screen Without touch screen
Share to:

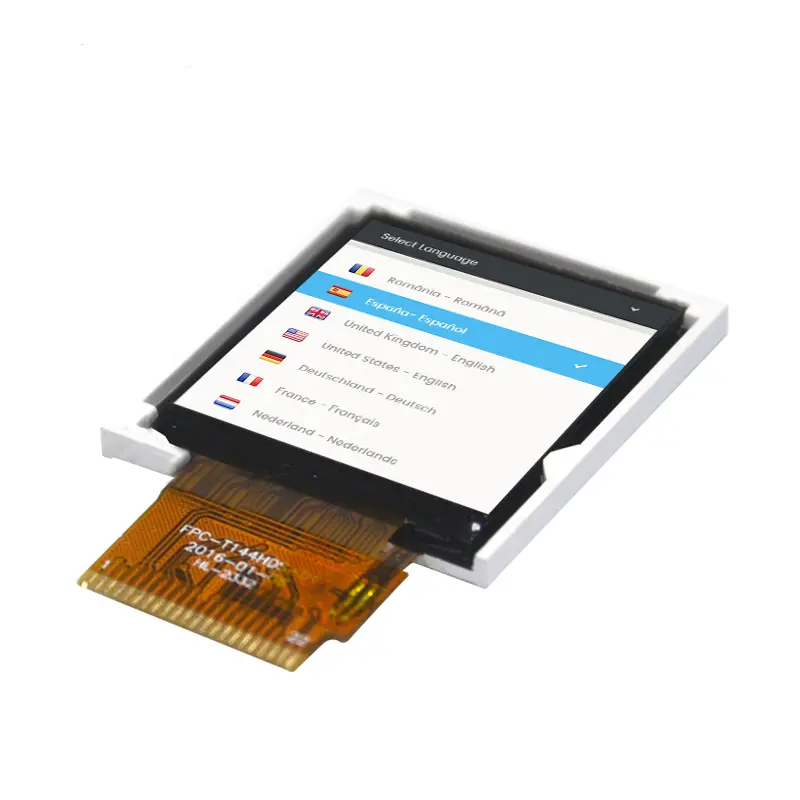

AT-T144HDS-01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light. The 1.44″ display area contains 128 x (RGB) x 128 pixels and can display up to 262K colors. This product accords with ROHS environmental criterion..
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 262K | ||
| Viewing Direction | 6:00 | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |

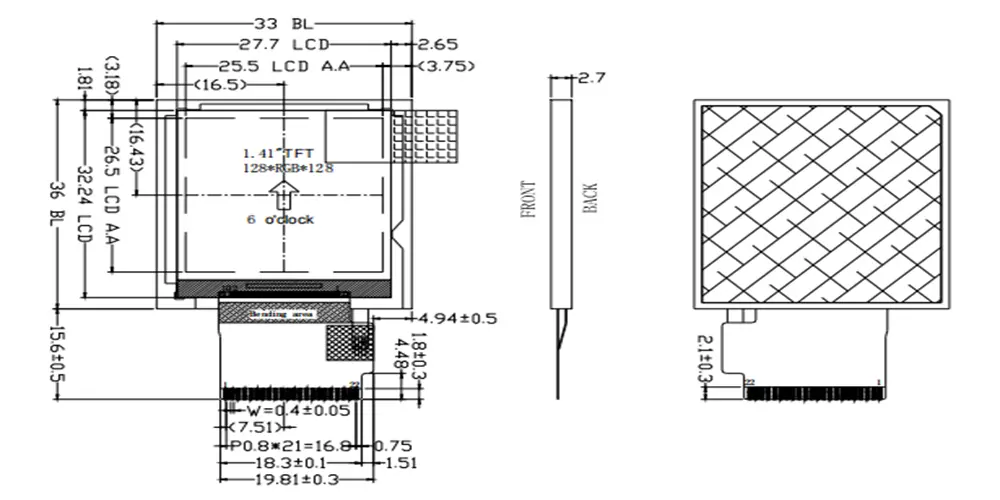

| Module size | 33.0*36.0*2.7 | mm | |
| Active Area(W×H) | 25.5*26.5 | mm | |
| Number of Dots | 128*128 | dots | |
| LCM Controller | ST7735S | – | |
| Backlight | 1-LEDs (white) | pcs | customizable |
| Brightness | 200 | cd/m² | customizable |
| Interface | MCU-8bit | – | |
| Connector | 22 | pins | customizable |
| Size | 1.44 |
| Resolution | 128*128 |
| Outline Size | 33*36 |
| Active Area | 25.5*26.5 |
| Driver IC | ST7735S |
| Brightness | 200.0 |
| Interface | CPU 8bit |
| Viewing Angle | 6:00 O’Clock |
