Product name: 5inch TFT LCD display
Model No.: AT-T050QGH-07
Display Type TFT, TN
Viewing Direction 12 O’clock
Interface RGB
LCM Controller ILI6122+ILI5960
Operating temperature -20~+70℃
Brightness(cd/m²) 800cd/m²
Touch Screen Option
Share to:

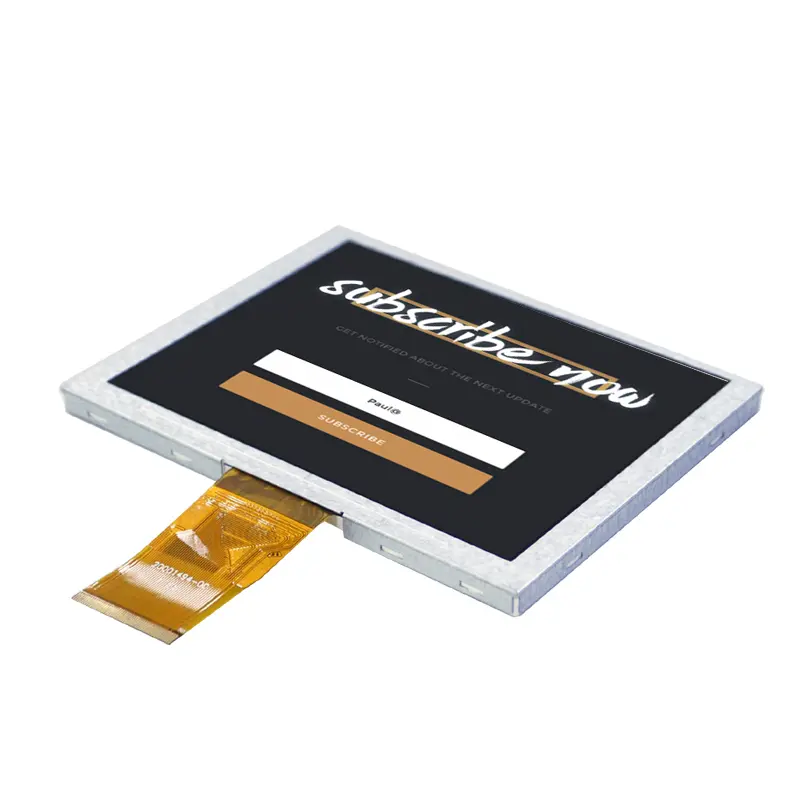

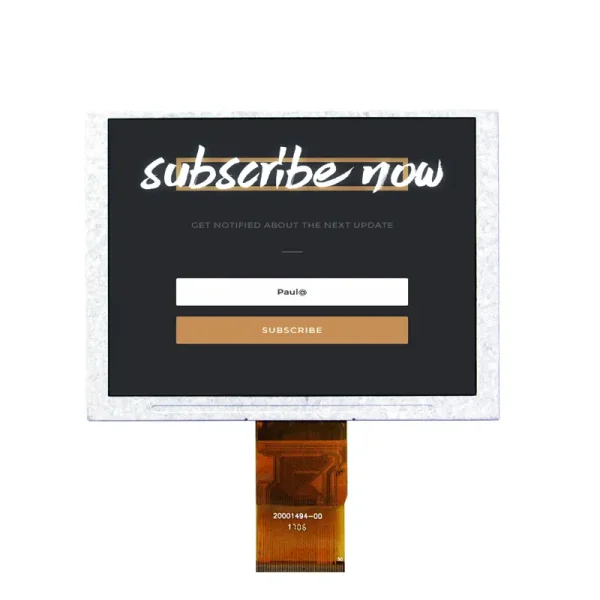

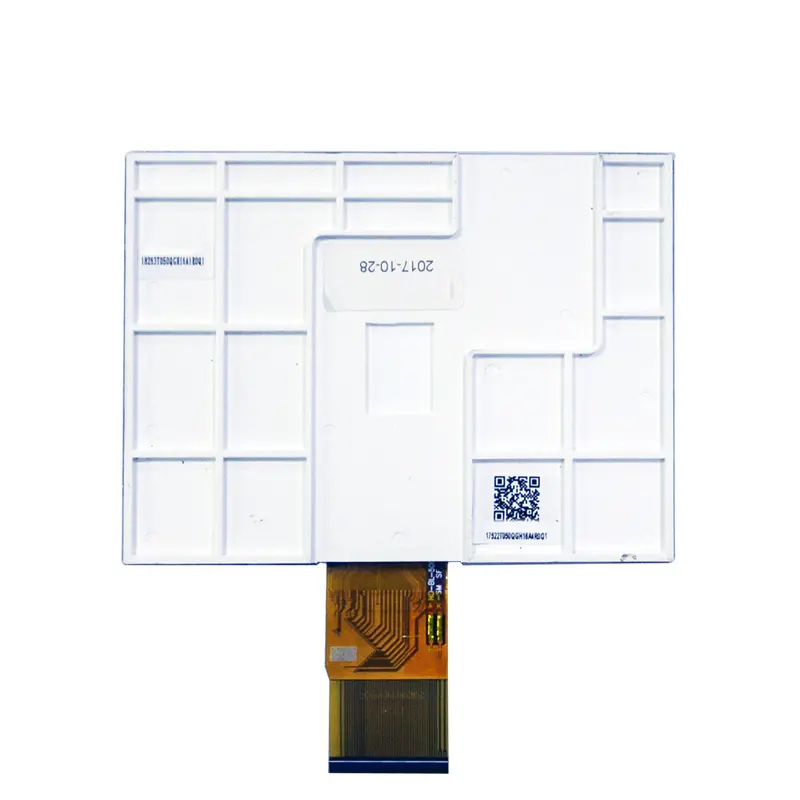

AT-T050QGH-07 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,and a back light. The 5.0″ display are a contains 640X480 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | 12 | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |
| Module size | 120.70×75.80×3.1 | mm | |
| Active Area(W×H) | 108.00(W)x64.80(H) | mm | |
| Number of Dots | 640X480 | dots | |
| LCM Controller | ILI6122+ILI5960 | – | |
| Backlight | 20 | pcs | customizable |
| Brightness | 800 | cd/m² | customizable |
| Interface | RGB | – | |
| Connector | 40 | pins | customizable |
| Size | 5 |
| Resolution | 640*480 |

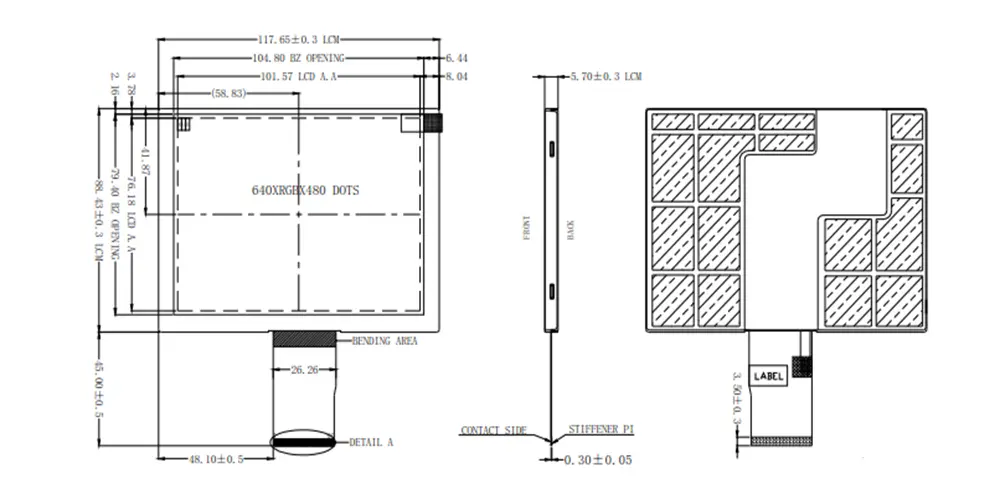

| Outline Size | 117.65*88.43 |
| Active Area | 101.57*76.18 |
| Driver IC | N/A |
| Brightness | 800 |
| Interface | RGB |
| Viewing Angle | 12:00 o’clock |
