AT156B6-L0B
AT156B6-L0B

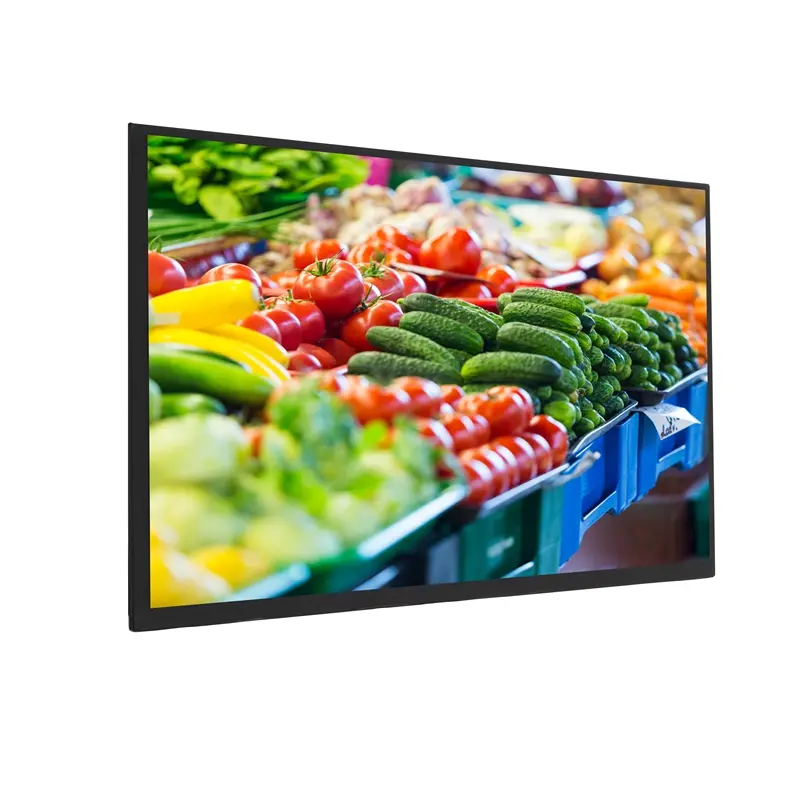

Product name: 15.6 inch TFT LCD display
Model No.: AT156B6-L0B
Display Type： TFT
Viewing Direction： 6 o’clock
Interface： LVDS
LCM Controller： /
Operating temperature： 0~ 50℃
Brightness(cd/m²)： 220
Touch Screen： option
Share to:
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 262,144 | ||
| Viewing Direction | 6 | O’Clock | |
| Operating temperature | 0~ 50℃ | ℃ | |
| Storage temperature | ’-20~60 | ℃ | |

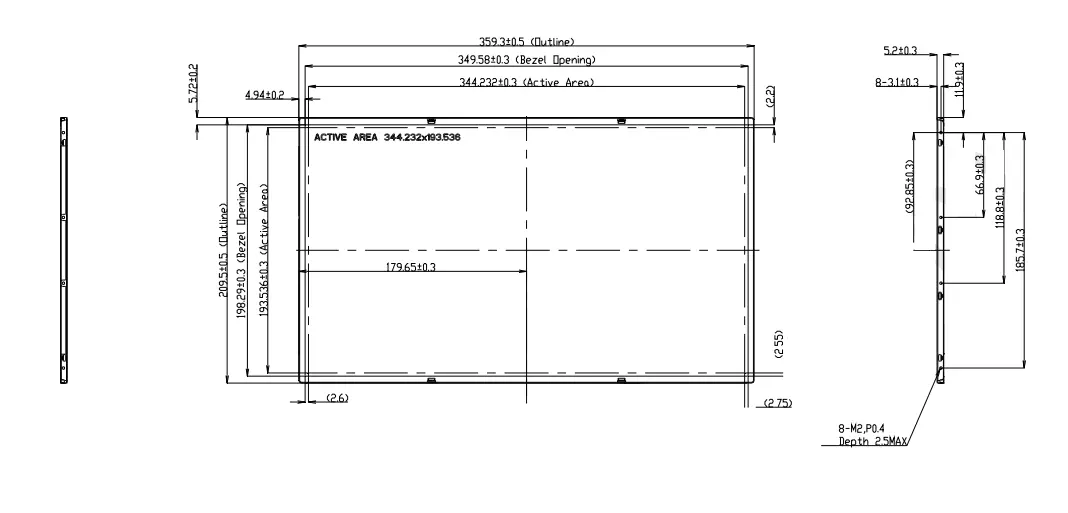

| Module size | 358.8×209.5×5.2 | mm | |
| Active Area(W×H) | 344.232×193.536 | mm | |
| Number of Dots | 1366×768 | dots | |
| LCM Controller | / | – | |
| Backlight | LED | pcs | customizable |
| Brightness | 220 | cd/m² | customizable |
| Interface | LVDS | – | customizable |
| Connector | 40 | pins | customizable |
| Size | 15.6 |
| Resolution | 1366*768 |
| Outline Size | 359.3*209.5 |
| Active Area | 344.232 *193.536 |
| Driver IC | N/A |
| Brightness | 220 |
| Interface | LVDS |
| Viewing Angle | 6:00 o’clock |
