AT020LRIK-01A350
AT020LRIK-01A350
Product name: 2.0 inch TFT LCD Display
Model No.: AT020LRIK-01A350
Display Type： TFT
Viewing Direction： ALL
Interface： MCU/RGB
LCM Controller： ST7789
Operating temperature： -20~70
Brightness(cd/m²)： 350
Touch Screen： /
Share to:

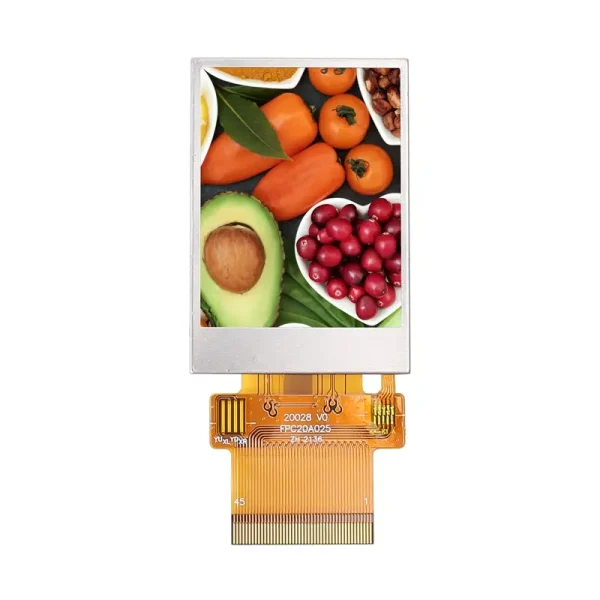

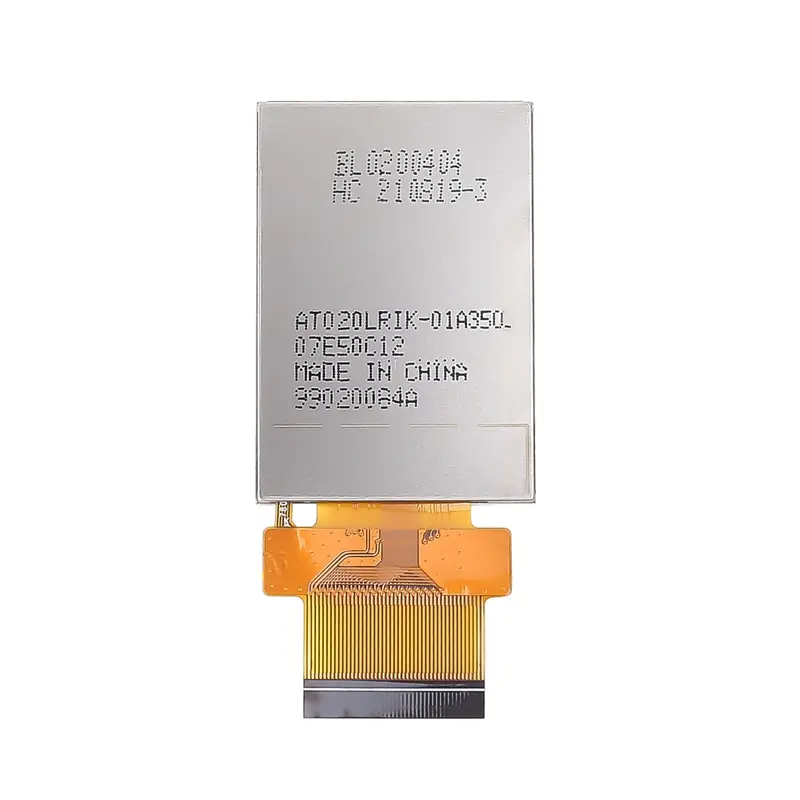

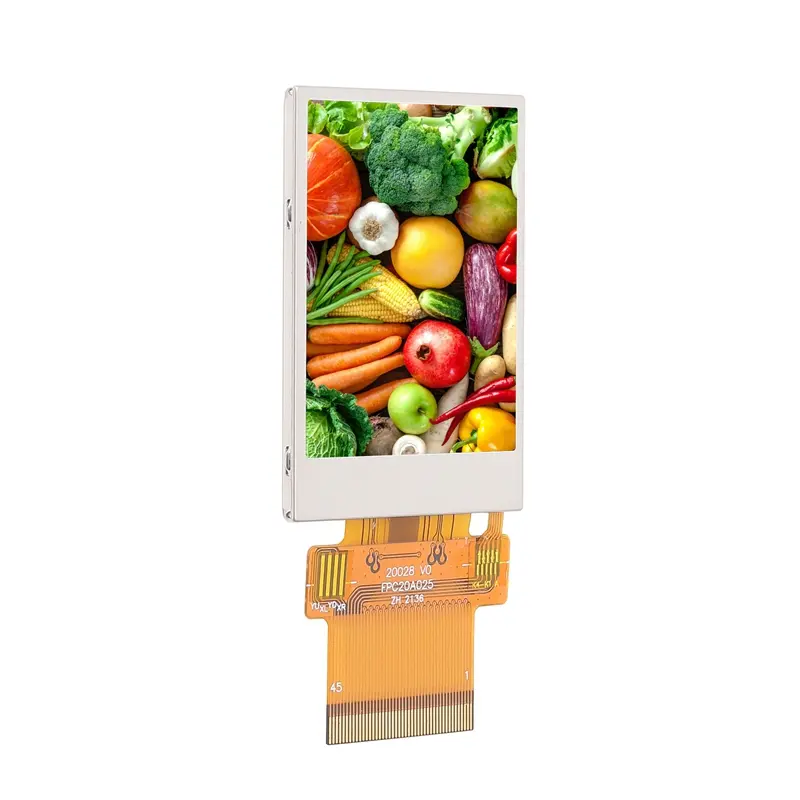

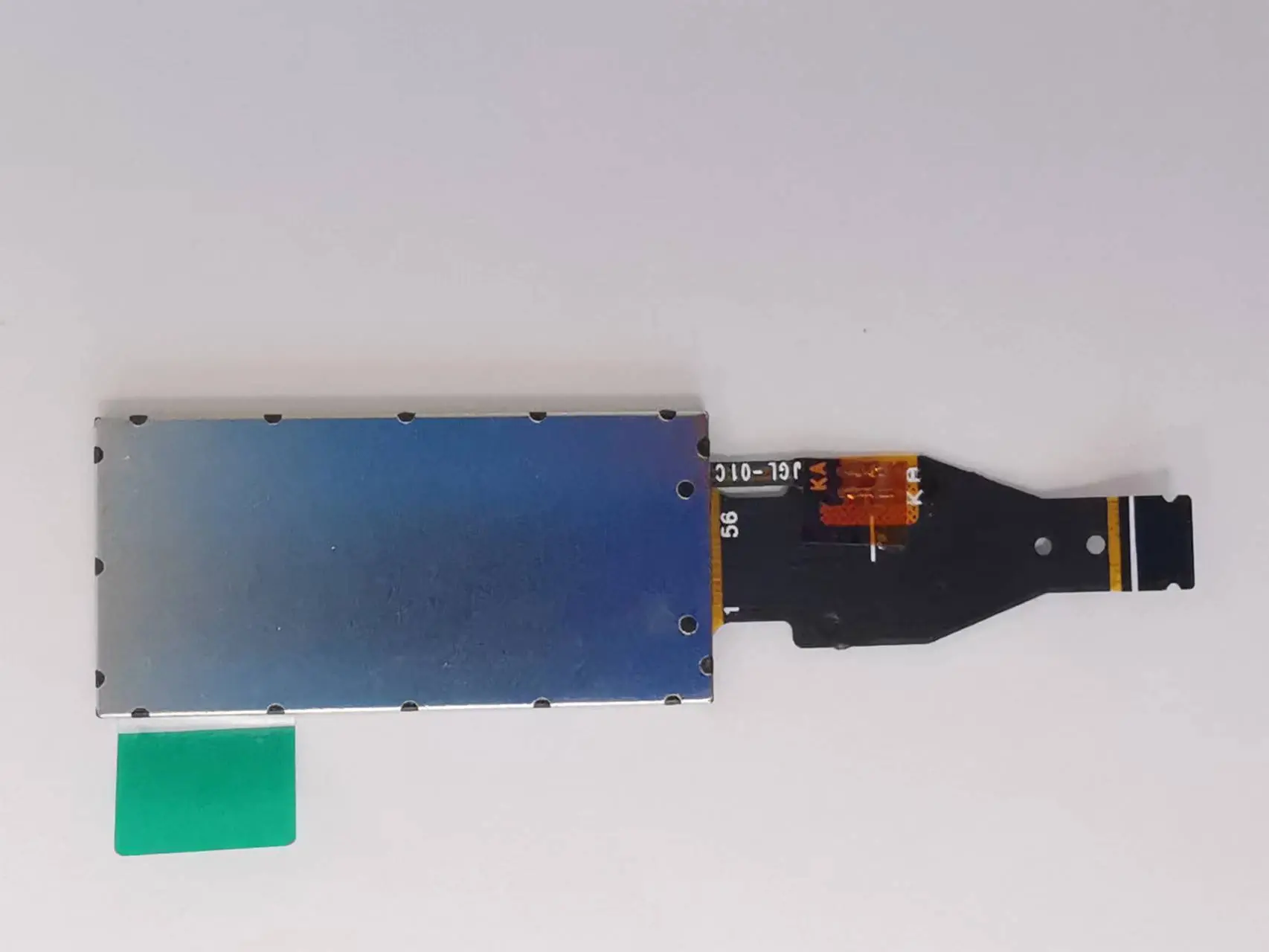

AT020LRIK-01A350 is a TFT-LCD module. It is composed of a TFT-LCD panel,driver IC, FPC, a back light unit. The 2.0” display area contains 240(RGB)x320 pixels and can display up to 262K colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 262K | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~70 | ℃ | |
| Storage temperature | -30~80 | ℃ | |

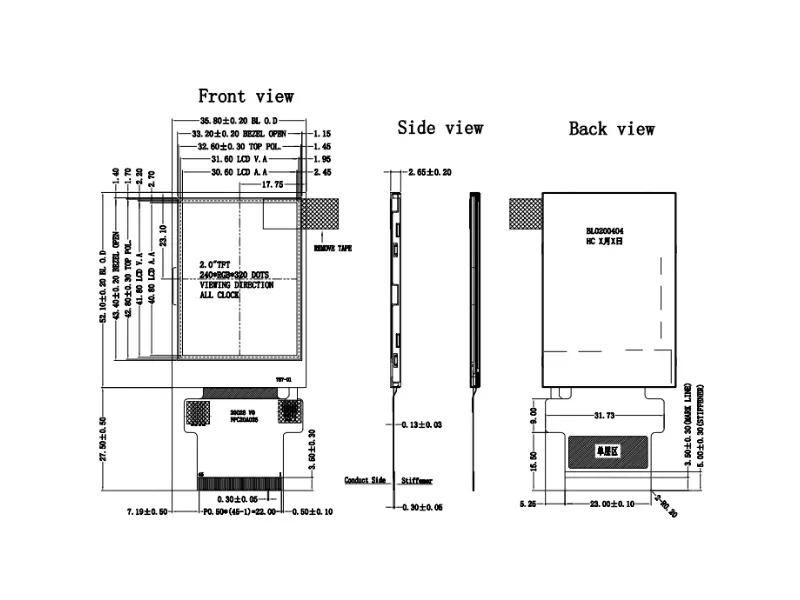

| Module size | 35.8×52.1×2.65 | mm | |
| Active Area(W×H) | 30.6（H)×40.8（V) | mm | |
| Number of Dots | 240×320 | dots | |
| LCM Controller | ST7789 | – | |
| Backlight | LED | pcs | customizable |
| Brightness | 350 | cd/m² | customizable |
| Interface | MCU/RGB | – | customizable |
| Connector | 45 | pins | customizable |
| Size | 2 |
| Resolution | 240*320 |
| Outline Size | 35.8*52.1*2.65 |
| Active Area | 30.6 *40.8 |
| Driver IC | ST7789 |
| Brightness | 350 |
| Interface | MCU/RGB |
| Viewing Angle | IPS |
