AT116BEIO-03A220
AT116BEIO-03A220
Product name: 11.6inch TFT LCD display
Model No.: AT116BEIO-03A220
Display Type： TFT, IPS, Normally Black
Viewing Direction： All
Interface： EDP
LCM Controller： TBD
Operating temperature： -0~+50℃
Brightness(cd/m²)： 300cd/m²
Touch Screen： Without touch screen
Share to:

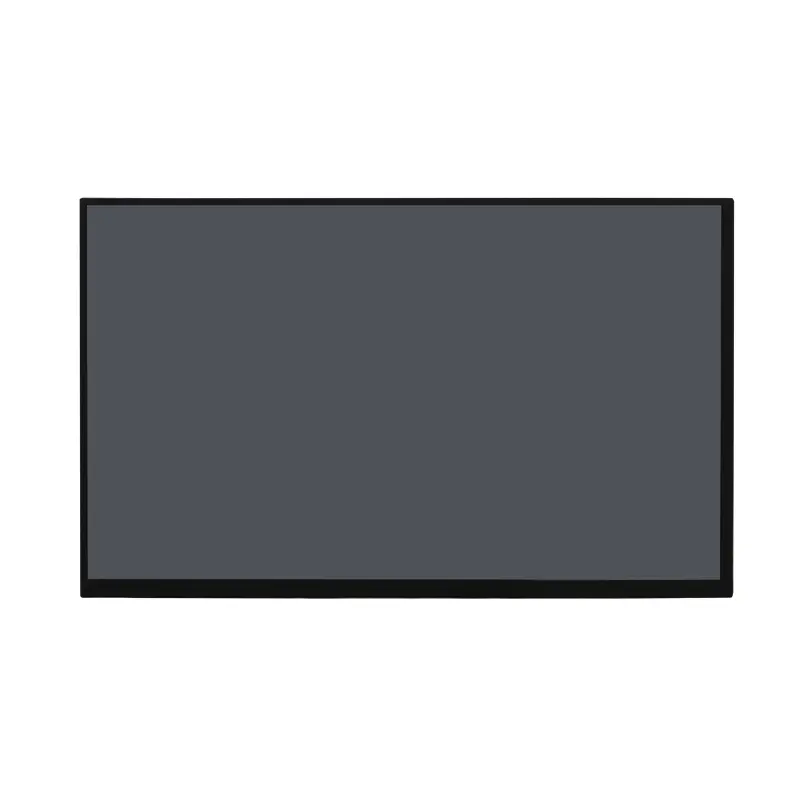

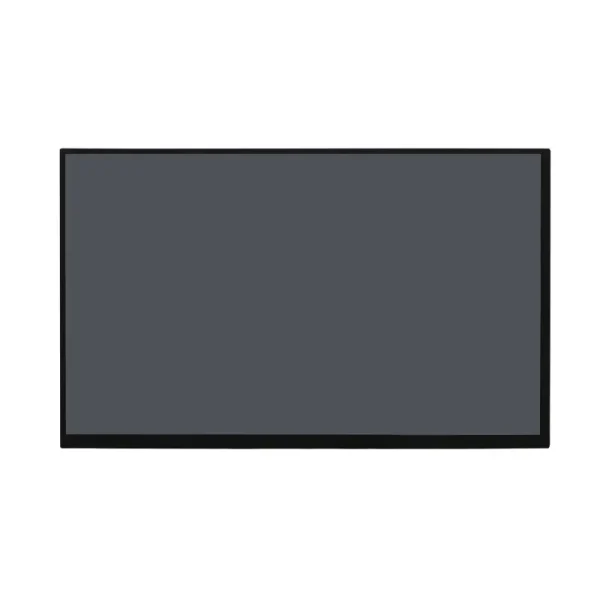

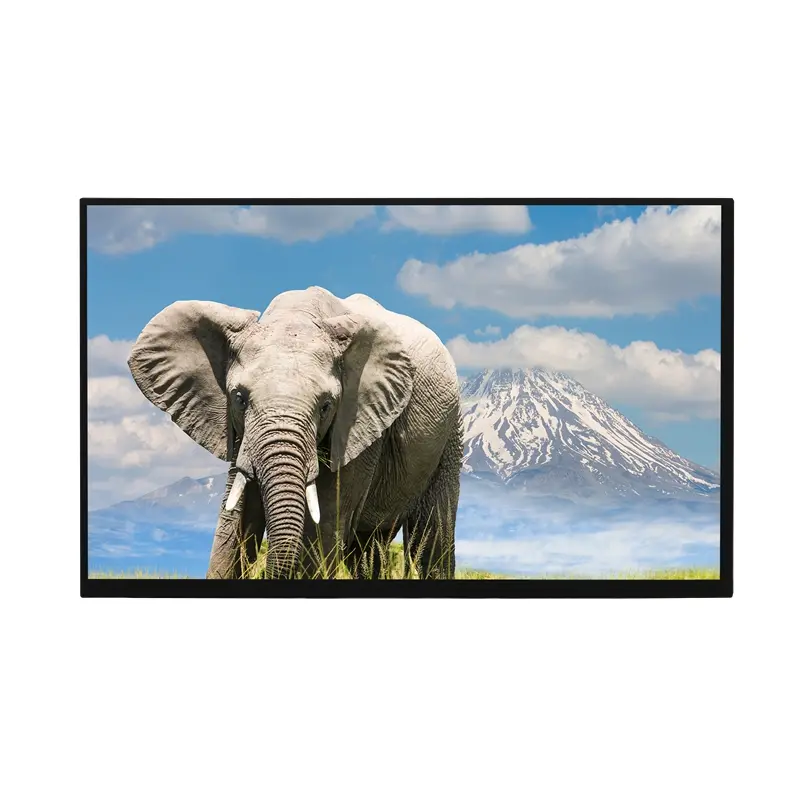

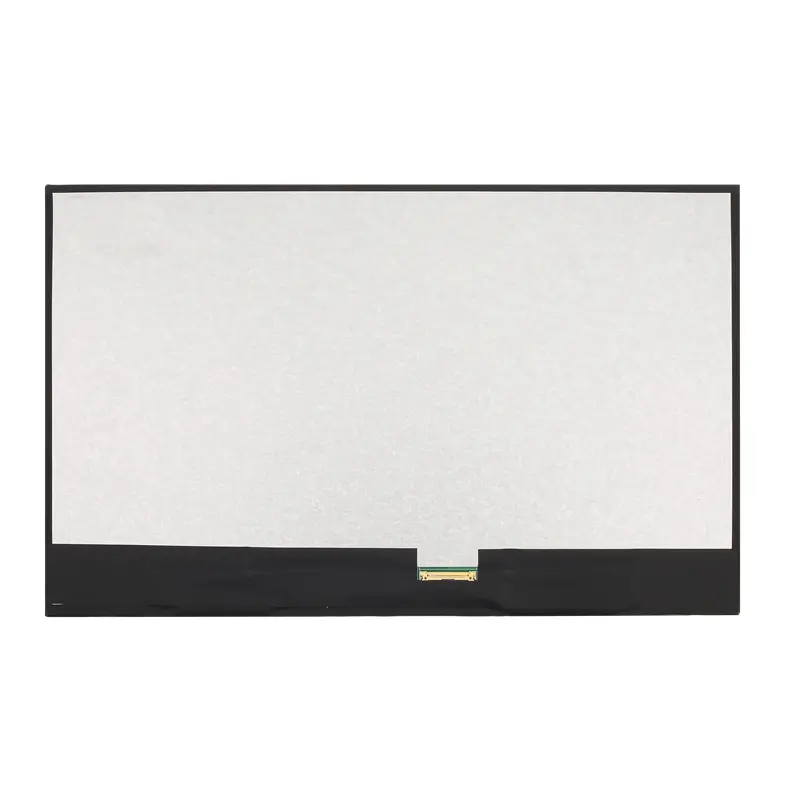

AT116BEIO-03A220 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light. The 8.0″ display area contains 1366 x (RGB) x 768 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -0~+50℃ | ℃ | |
| Storage temperature | -20~+60 | ℃ | |

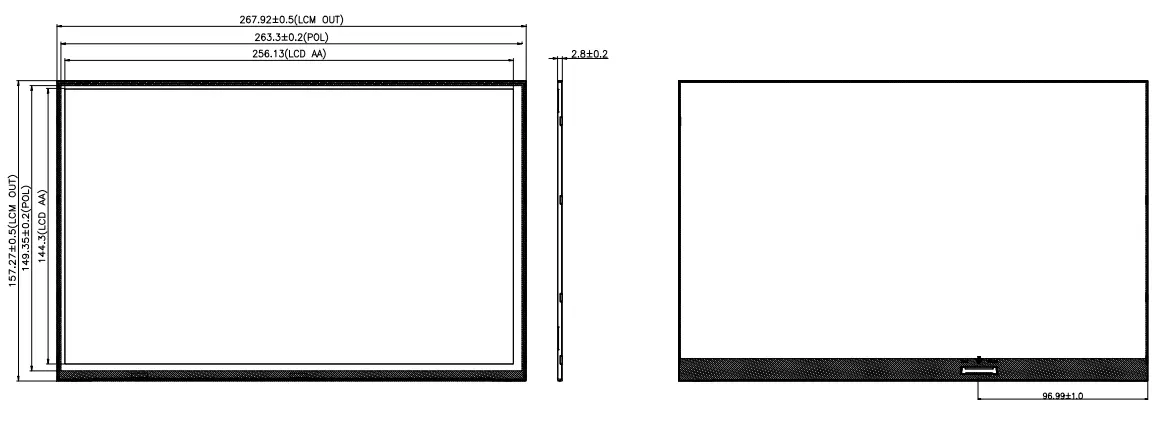

| Module size | 267.92X157.27X2.8(Max) | mm | |
| Active Area(W×H) | 256.13 (H) ×144.3 (V) | mm | |
| Number of Dots | 1366 x (RGB) x 768 | dots | |
| LCM Controller | TBD | – | |
| Backlight | 36 | pcs | |
| Brightness | 300 | cd/m² | |
| Interface | eDP | – | |
| Connector | 30 | pins |
| Size | 11.6 |
| Resolution | 1366*768 |
| Outline Size | 267.92*157.27*2.8 |
| Active Area | 256.13*144.3 |
| Driver IC | N/A |
| Brightness | 220 |
| Interface | eDP |
| Viewing Angle | IPS |
