AT132HSIH-02A350
AT132HSIH-02A350

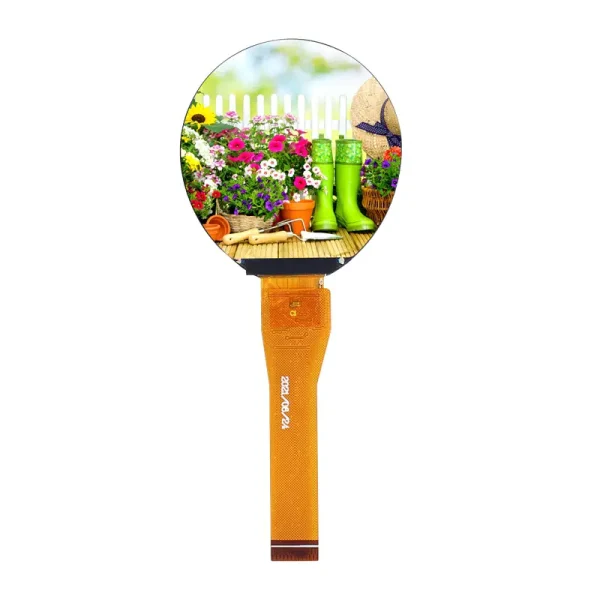

Product name: 1.32 inch TFT display
Model No.: AT132HSIH-02A350
Display Type 65K
Viewing Direction ALL
Interface SPI
LCM Controller GC9C01
Operating temperature -20~+70℃
Brightness(cd/m²) 350 cd/m²
Touch Screen With/without touch screen
Share to:

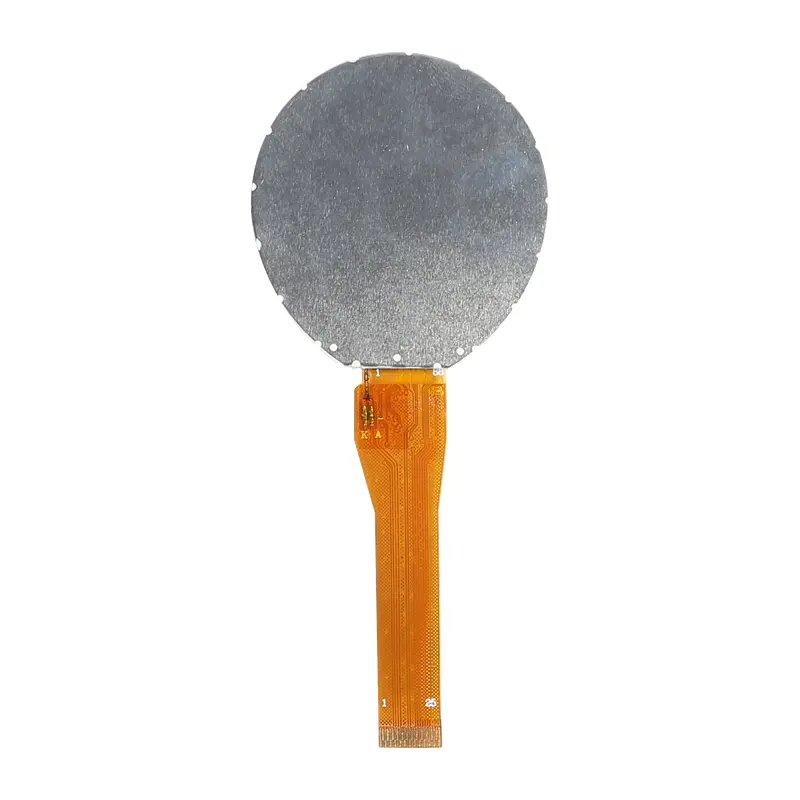

AT132HSIH-02A350 is a TFT module. It is composed of a TFT panel, driver IC and FPC unit,this product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| display Type | LTPS TFT | – | |
| Display color | 65K | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20 ~ 70 | ℃ | |
| Storage temperature | -20 ~ 80 | ℃ | |

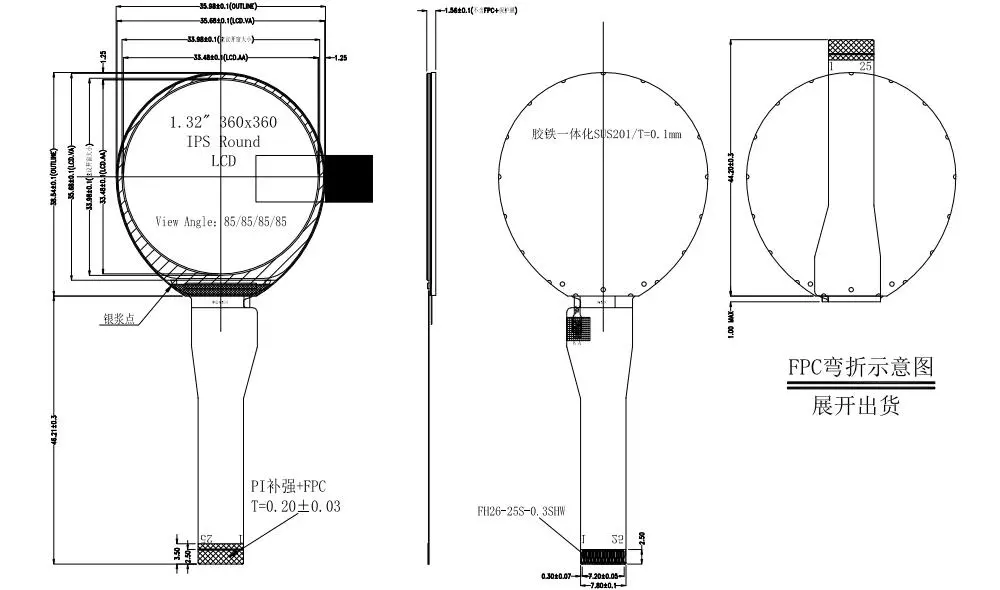

| Module size | 38.54 x38.54×1.56 | mm | |
| Active Area(W×H) | 33.48(W)X33.48(H) | mm | |
| Number of Dots | 360*360 | dots | |
| Controller | GC9C01 | – | |
| Brightness | 350 | cd/m² | |
| Interface | SPI | – | |
| Connector | 25 | pins | customizable |
| Size | 1.32 |
| Resolution | 360*360 |
| Outline Size | 35.98*38.54 |
| Active Area | 33.48*33.48 |
| Driver IC | GC9C01 |
| Brightness | 0 |
| Interface | SPI |
| Viewing Angle | IPS |
| Remark | Round TFT |
