AT043S52-500
AT043S52-500

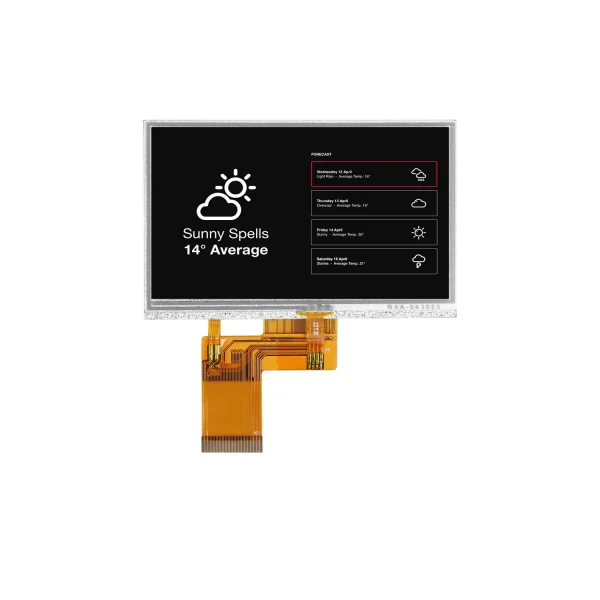

Product name: 4.3 inch TFT LCD display
Model No.: AT043S52-500
Display Type TFT, transmissive
Viewing Direction 12 O’clock
Interface RGB
LCM Controller ST7282
Operating temperature -20~+70℃
Brightness(cd/m²) 500 cd/m²
Touch Screen option
Share to:

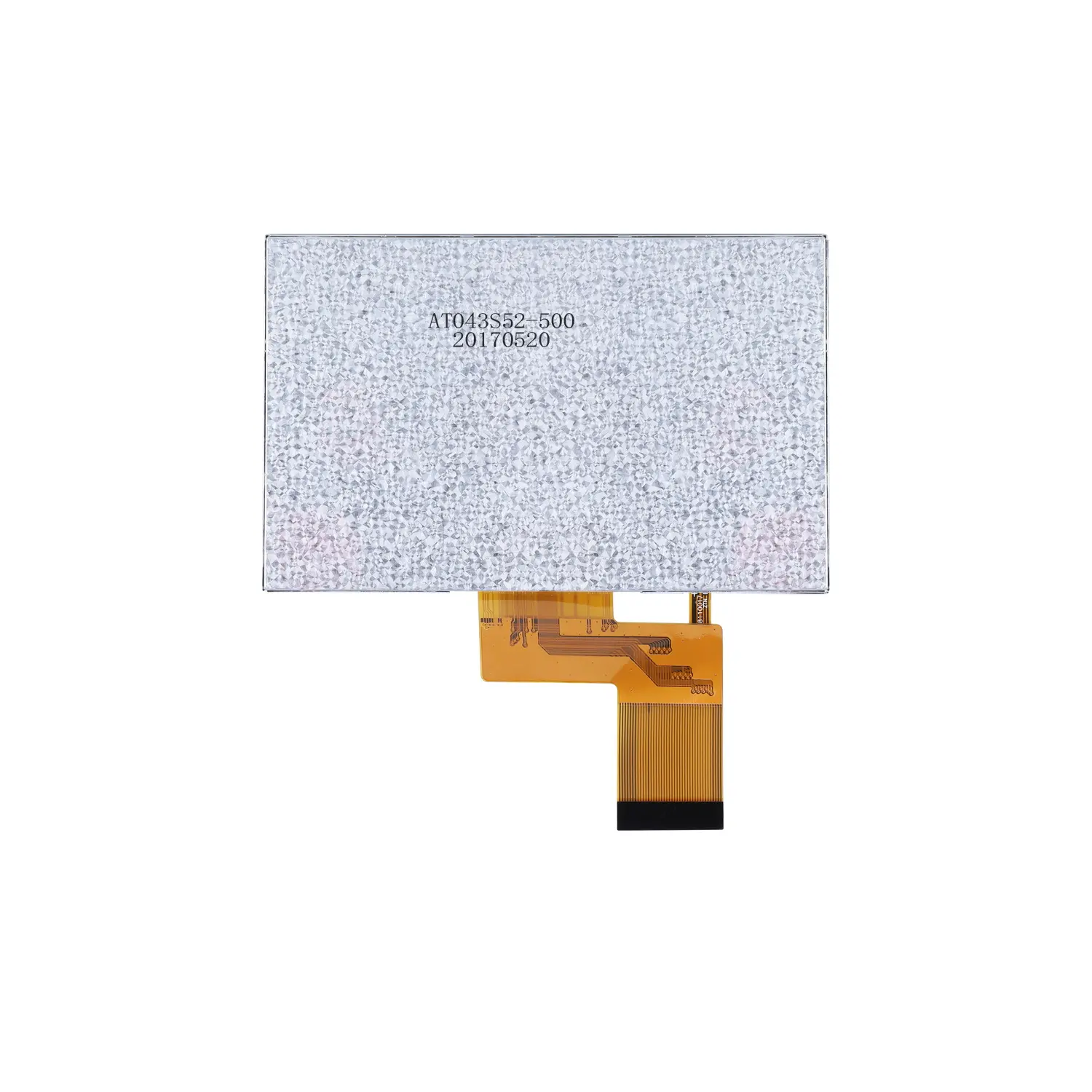

AT043S52-500 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight. The 4.3″ display area contains 480 x (RGB) x 272 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | 12 | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |

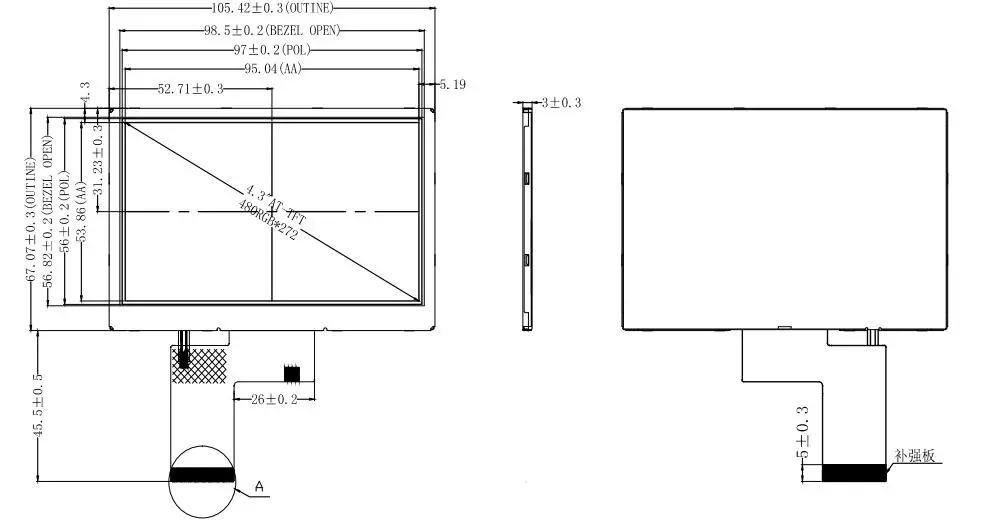

| Module size | 105.42X67.07X3.0 | mm | |
| Active Area(W×H) | 95.04(W)X53.86(H) | mm | |
| Number of Dots | 480*272 | dots | |
| LCM Controller | ST7282 | – | |
| Backlight | 10 LEDs (white) | pcs | customizable |
| Brightness | 500 | cd/m² | customizable |
| Interface | RGB | – | customizable |
| Connector | 40 | pins | customizable |
| Size | 4.3 |
| Resolution | 480*272 |
| Outline Size | 105.5*67.1 |
| Active Area | 95.04*53.86 |
| Driver IC | ST7282 |
| Brightness | 500 |
| Interface | RGB |
| Viewing Angle | 12:00 o’clock |
| Remark | CTP &RTP |
