AT070QRTC-02A450
AT070QRTC-02A450
Product name: 7.0 inch TFT LCD Display
Model No.: AT070QRTC-02A450
Display Type: TFT
Viewing Direction: 6:00 O’Clock
Interface: RGB
LCM Controller: /
Operating temperature: -20~80
Brightness(cd/m²): 450
Touch Screen: /
Share to:

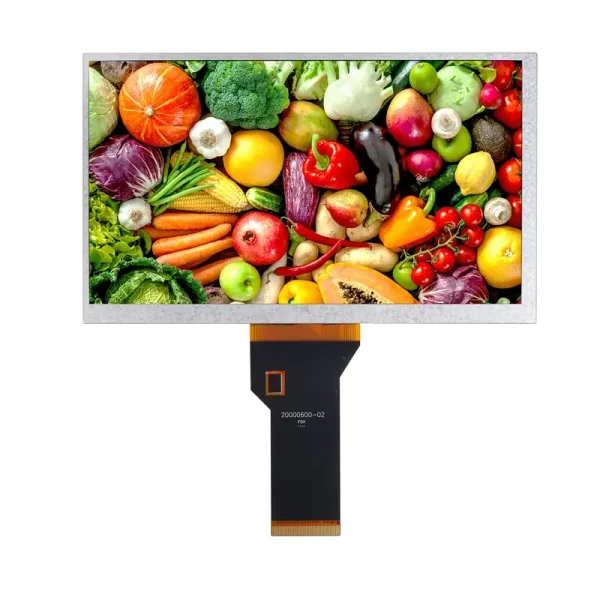

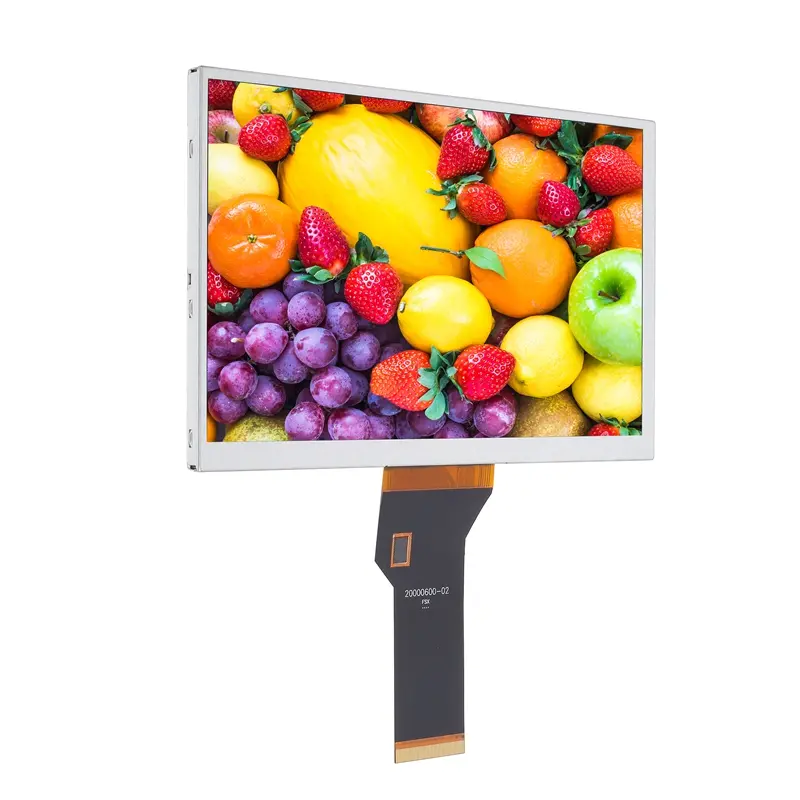

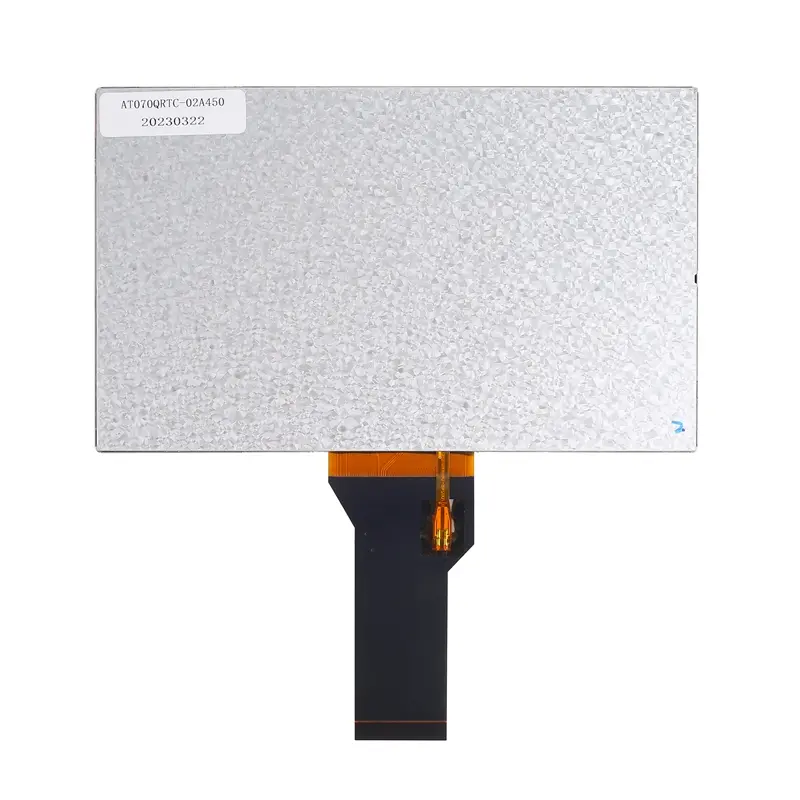

AT070QRTC-02A450 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight. The 7.0″ display area contains 800 (RGB)x 480 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7 | ||
| Viewing Direction | 6:00 | O’Clock | |
| Operating temperature | -30~85 | ℃ | |
| Storage temperature | -30~85 | ℃ | |

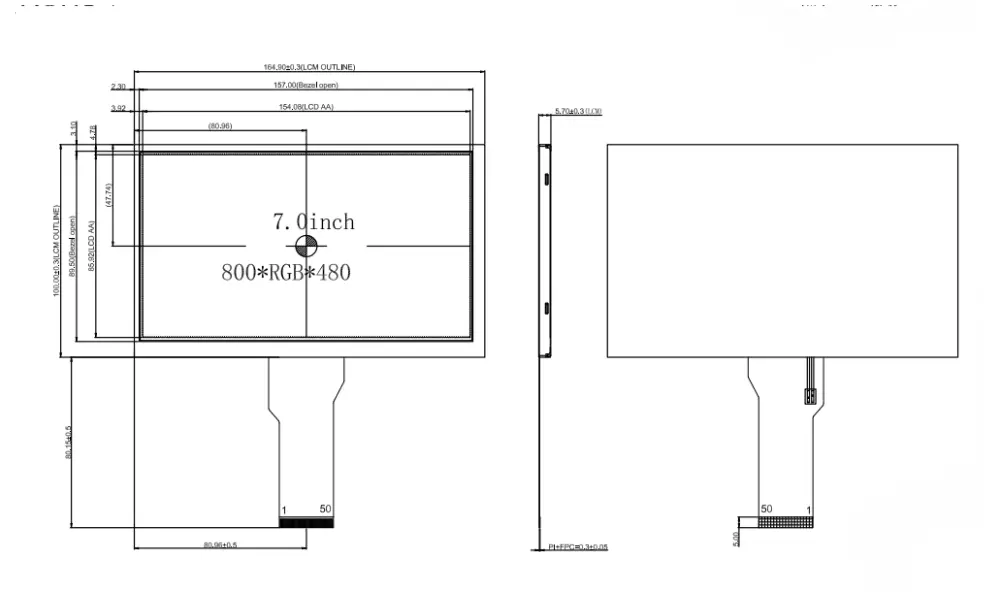

| Module size | 164.9×100×5.7 | mm | |
| Active Area(W×H) | 154.08（H)×85.92（V) | mm | |
| Number of Dots | 800×480 | dots | |
| LCM Controller | / | – | |
| Backlight | LED | pcs | customizable |
| Brightness | 450 | cd/m² | customizable |
| Interface | RGB | – | customizable |
| Connector | 50 | pins | customizable |
| Size | 7 |
| Resolution | 800*480 |
| Outline Size | 164.9*100 |
| Active Area | 154.08 *85.92 |
| Driver IC | / |
| Brightness | 450 |
| Interface | RGB |
| Viewing Angle | IPS |
