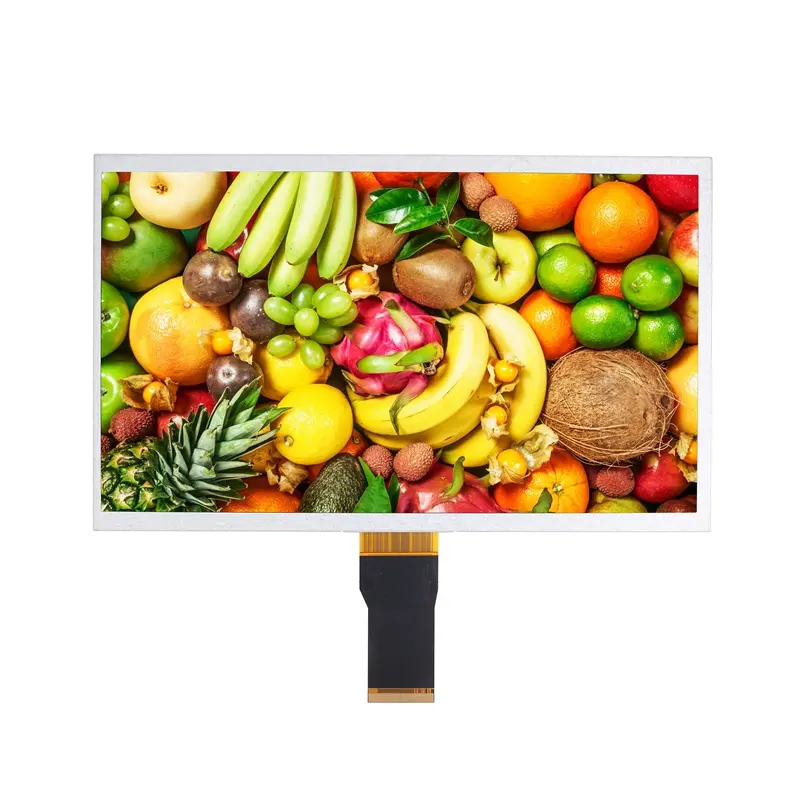

Product name: 10.1 inch TFT LCD Display
Model No.: AT101QLIC-01A350CP
Display Type: TFT
Viewing Direction: ALL
Interface: RGB
LCM Controller: GT928
Operating temperature: -20~70
Brightness(cd/m²): 350
Touch Screen: /
Share to:
AT101QLIC-01A350CP is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight. The 10.1″ display area contains 1280 x 800 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7 | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~70 | ℃ | |
| Storage temperature | -30~80 | ℃ | |
| Module size | 229.26×148.7×2.5 | mm | |
| Active Area(W×H) | 216.964（H)×145.6（V) | mm | |
| Number of Dots | 1280×800 | dots | |
| LCM Controller | GT928 | – | |
| Backlight | LED | pcs | customizable |
| Brightness | 350 | cd/m² | customizable |
| Interface | RGB | – | customizable |
| Connector | 40 | pins | customizable |
| Size | 10.1 |
| Resolution | 1280*800 |
| Outline Size | 229.26*148.7 |
| Active Area | 216.964 *145.6 |
| Driver IC | GT928 |
| Brightness | 350 |
| Interface | RGB |
| Viewing Angle | IPS |
