AT-T090BWH-05P
AT-T090BWH-05P
Product name: 9inch TFT LCD display
Model No.: AT-T090BWH-05P
Display Type: 9.0“TFT,TRANSMISSIVE
Viewing Direction: 12:00 o’clock
Interface: RGB
LCM Controller: HX8264/HX8664
Operating temperature: -20~+70℃
Brightness(cd/m²): 250cd/m²
Touch Screen: With touch screen
Share to:

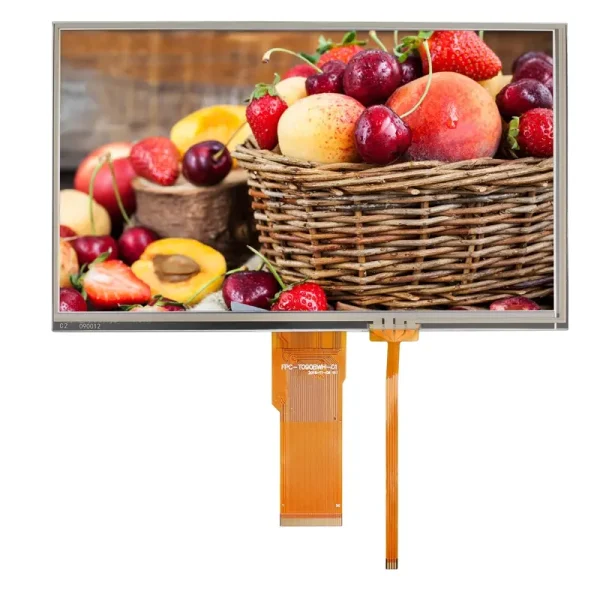

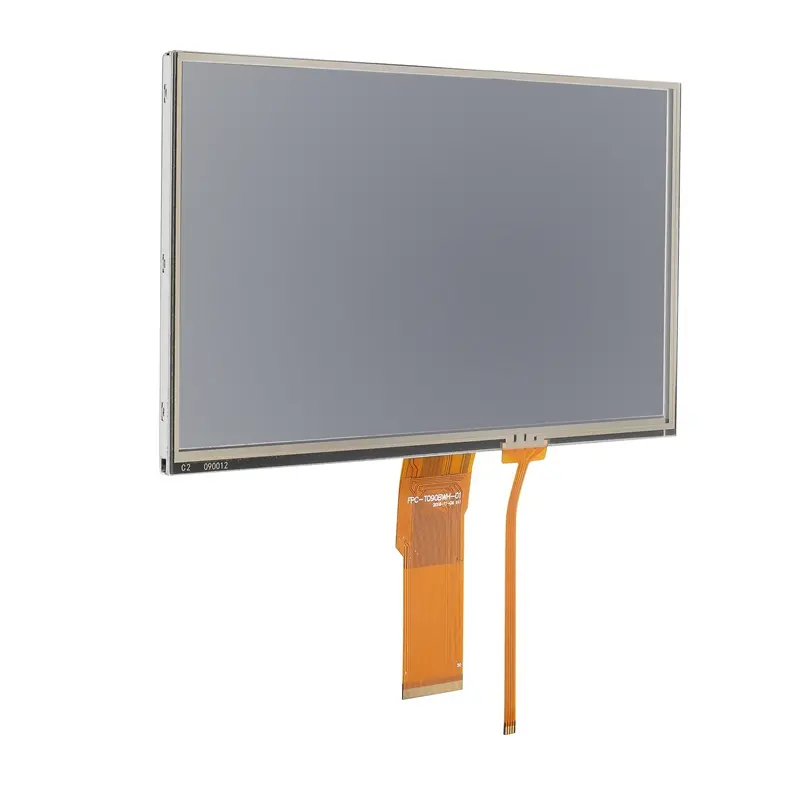

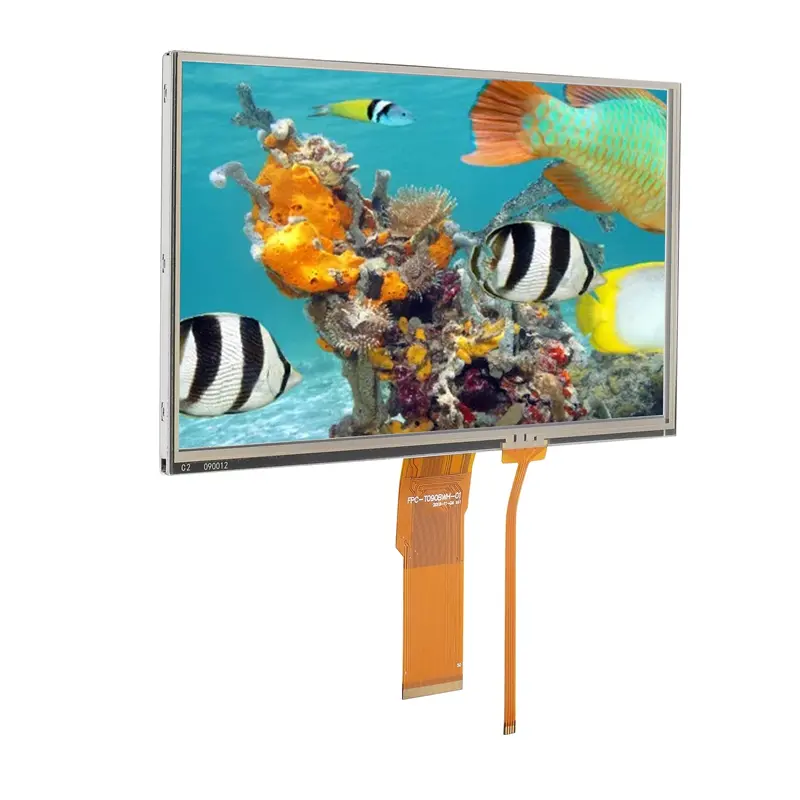

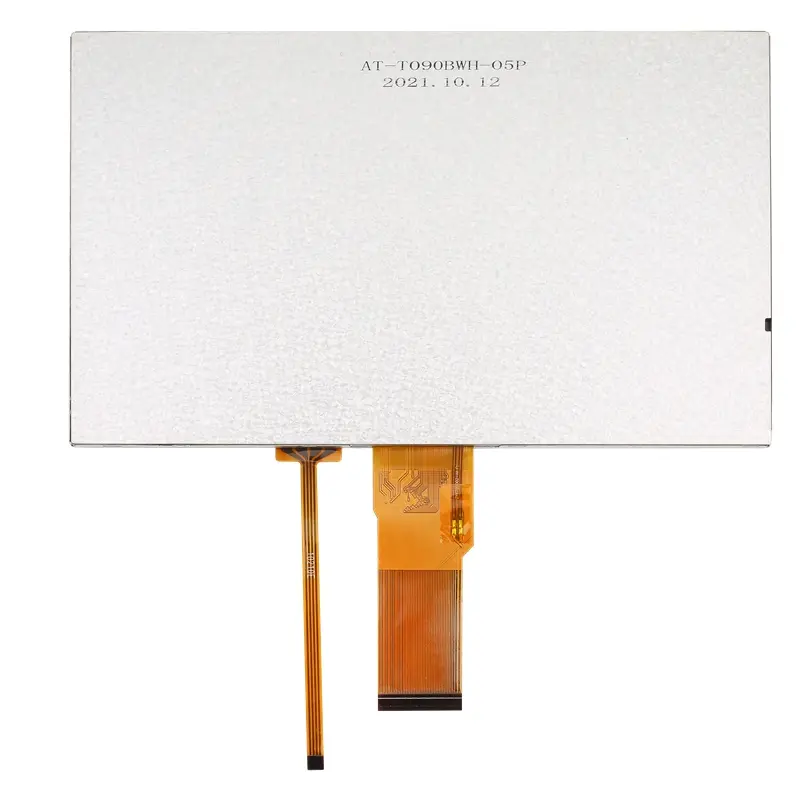

AT-T090BWH-05P is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light and RTP unit. The 9.0″ display area contains 800 x (RGB) x 480 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | 12:00 | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |
| Module size | 210.7X126.5X7.0 | mm | |
| Active Area(W×H) | 198(W)X111.7(H) | mm | |
| Number of Dots | 800*480 | dots | |
| LCM Controller | HX8264/HX8664 | – | |
| Backlight | 33LEDs (white) | pcs | customizable |
| Brightness | 250 | cd/m² | customizable |
| Interface | RGB | – | |
| Connector | 50 | pins | customizable |
| Size | 9 |
| Resolution | 800*480 |
| Outline Size | 210.7*126.5 |
| Active Area | 198*111.7 |
| Driver IC | HX8264 |
| Brightness | 250 |
| Interface | RGB |
| Viewing Angle | 12:00 O’clock |
