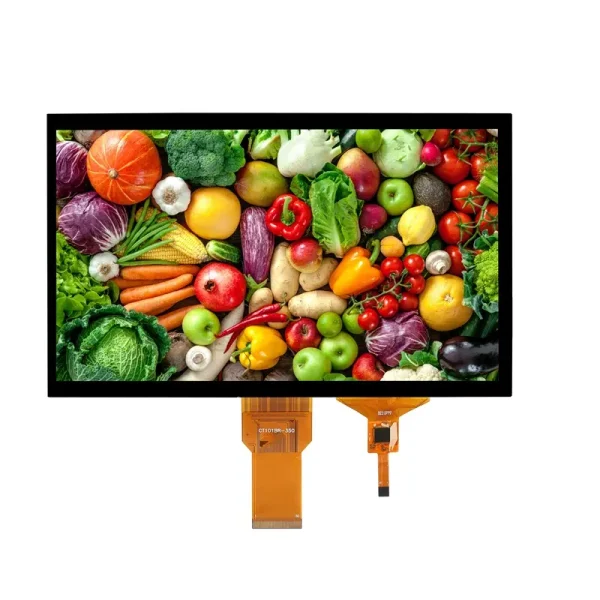

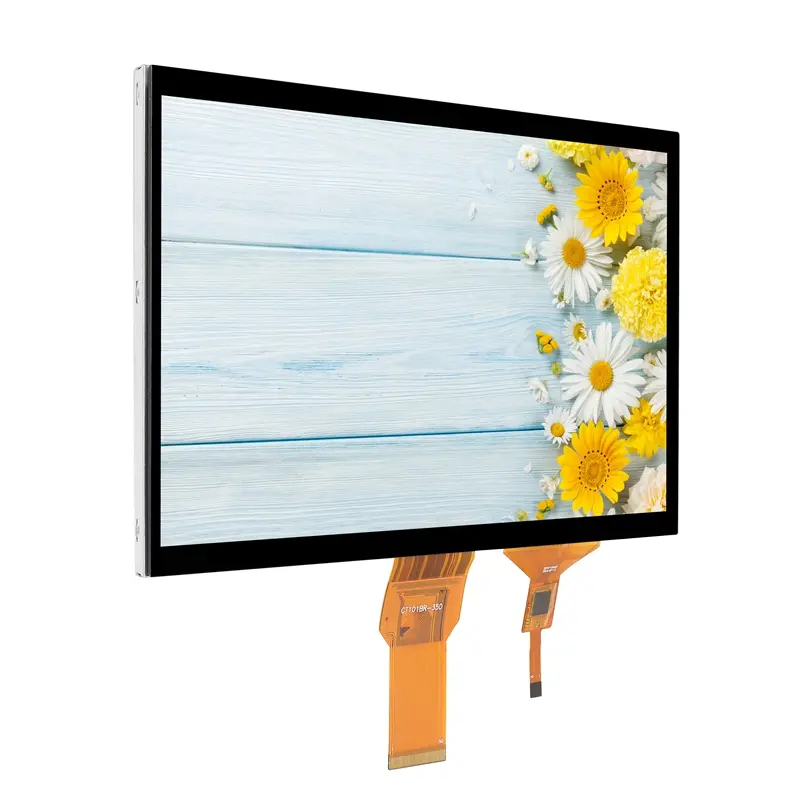

Product name: 10.1 inch TFT LCD Display
Model No.: AT101BRTS-B350CP
Display Type: TFT
Viewing Direction: ALL
Interface: RGB
LCM Controller: EK79001HJ2
Operating temperature: -20~70
Brightness(cd/m²); 350
Touch Screen: /
Share to:

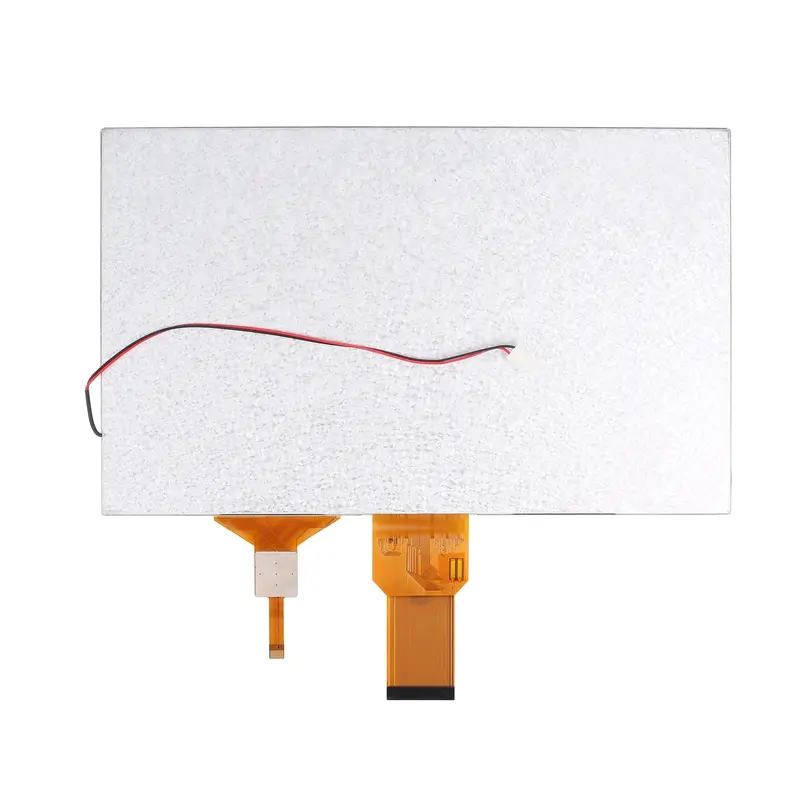

AT101BRTS-B350CP is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight. The 10.1″ display area contains 1024 x 600 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7 | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~70 | ℃ | |
| Storage temperature | -30~80 | ℃ | |

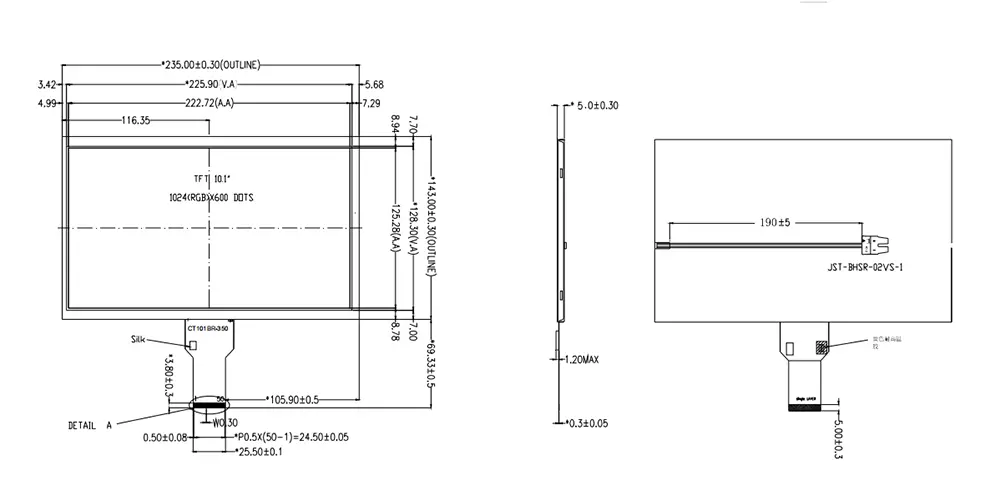

| Module size | 235×143×5.0 | mm | |
| Active Area(W×H) | 222.72（H)×125.28（V) | mm | |
| Number of Dots | 1024×600 | dots | |
| LCM Controller | EK79001HJ2 | – | |
| Backlight | LED | pcs | customizable |
| Brightness | 350 | cd/m² | customizable |
| Interface | RGB | – | customizable |
| Connector | 50 | pins | customizable |
| Size | 10.1 |
| Resolution | 1024*600 |
| Outline Size | 235*143 |
| Active Area | 222.72*125.28 |
| Driver IC | EK79001HJ2 |
| Brightness | 350 |
| Interface | RGB |
| Viewing Angle | IPS |
