AT-T080QXH-02
AT-T080QXH-02
Product name: 8inch TFT Transmissive
Model No.: AT-T080QXH-02
Display Type: TFT, IPS
Viewing Direction: All
Interface: LVDS
LCM Controller: /
Operating temperature: -10~+50℃
Brightness(cd/m²): 250cd/m²
Touch Screen: Without touch screen
Share to:

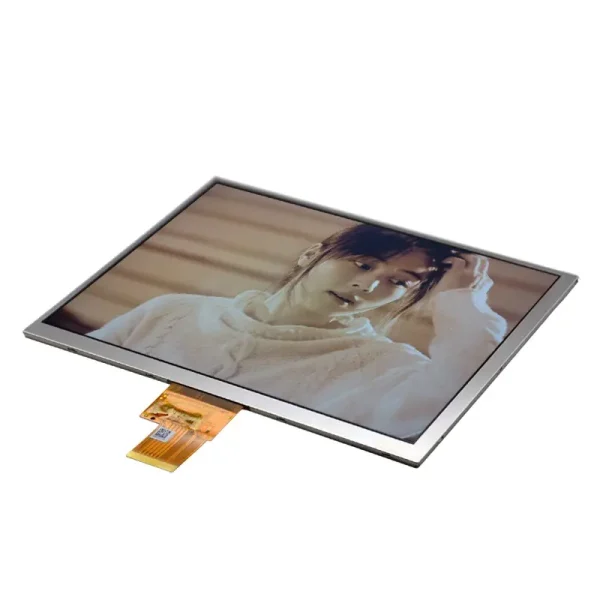

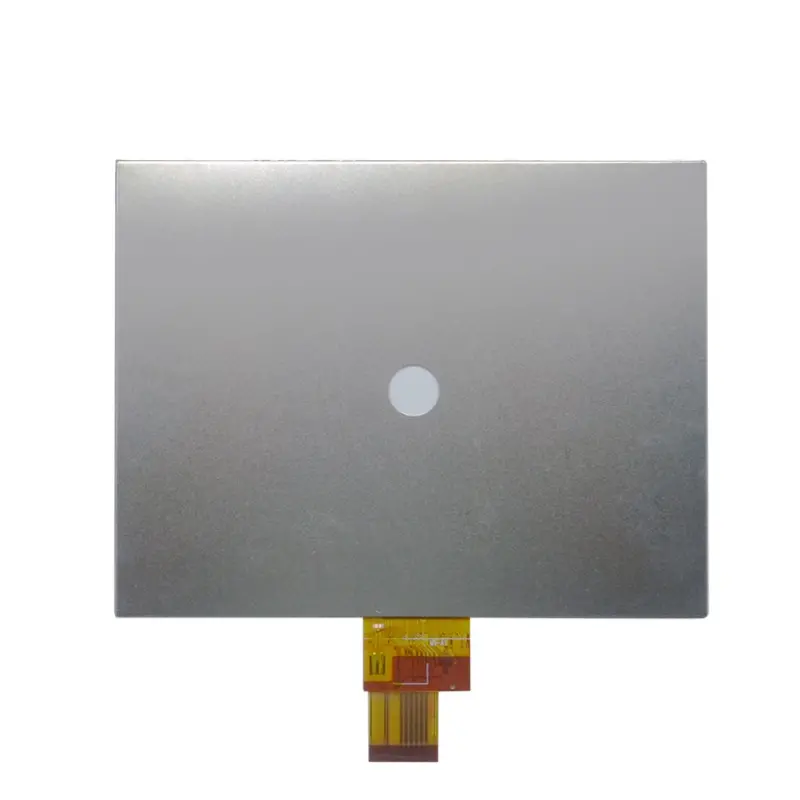

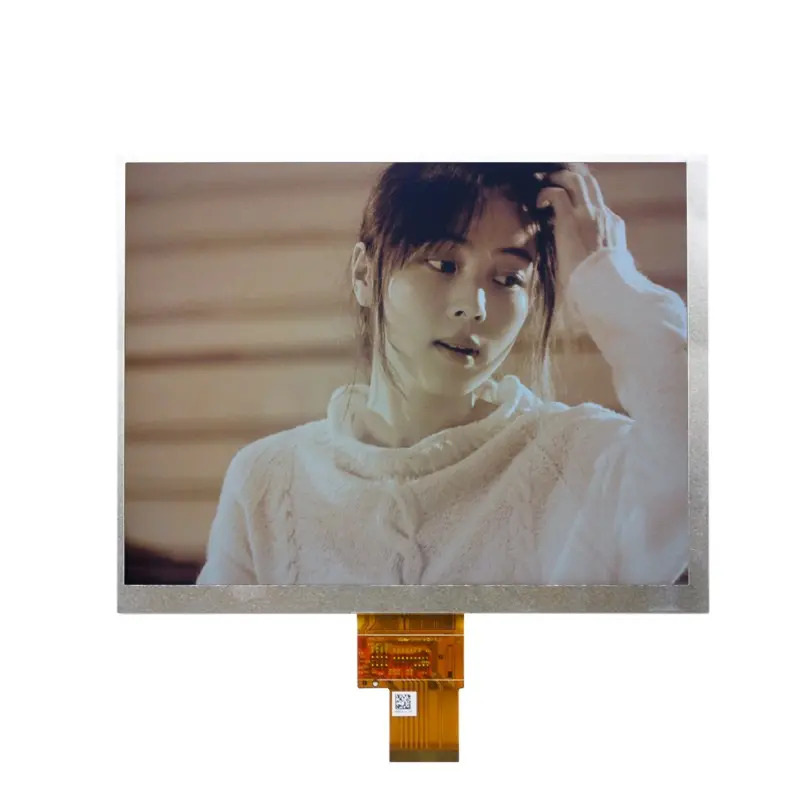

AT-T080QXH-02 is a TFT-LCD module. It is composed of a TFT-LCD panel,
driver IC, FPC, a backlight unit. The 8.0″ display area contains 1024 x 768 pixels and can display up to 16.7M colors. This product accords with RoHS environmental
criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -10~+50 | ℃ | |
| Storage temperature | -20~+60 | ℃ | |
| Module size | 174.3X135.5X2.6 | mm | |
| Active Area(W×H) | 162.05X121.54 | mm | |
| Number of Dots | 1024×768 | dots | |
| LCM Controller | – | ||
| Backlight | 33 | pcs | customizable |
| Brightness | 250 | cd/m² | customizable |
| Interface | LVDS | – | |
| Connector | 40 | pins | customizable |
| Size | 8 |
| Resolution | 1024*768 |
| Outline Size | 174.0*136.0 |
| Active Area | 162.05*121.54 |
| Driver IC | N/A |
| Brightness | 250 |
| Interface | LVDS |
| Viewing Angle | IPS |
