Product name: 8.0 inch TFT LCD Display
Model No.: AT080QLTS-01A450
Display Type: TFT
Viewing Direction: 6:00 o’clock
Interface: RGB
LCM Controller: EK79001H
Operating temperature: -10~60
Brightness(cd/m²): 450
Touch Screen: /
Share to:

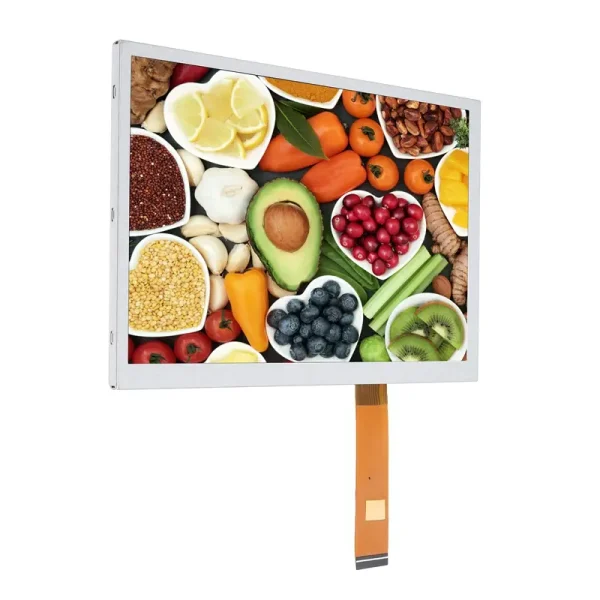

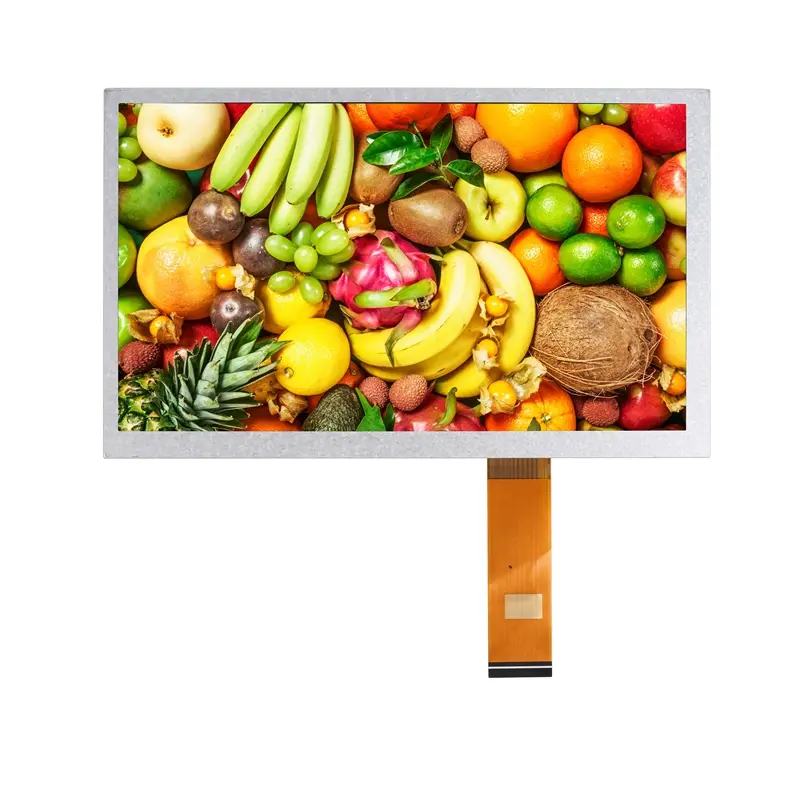

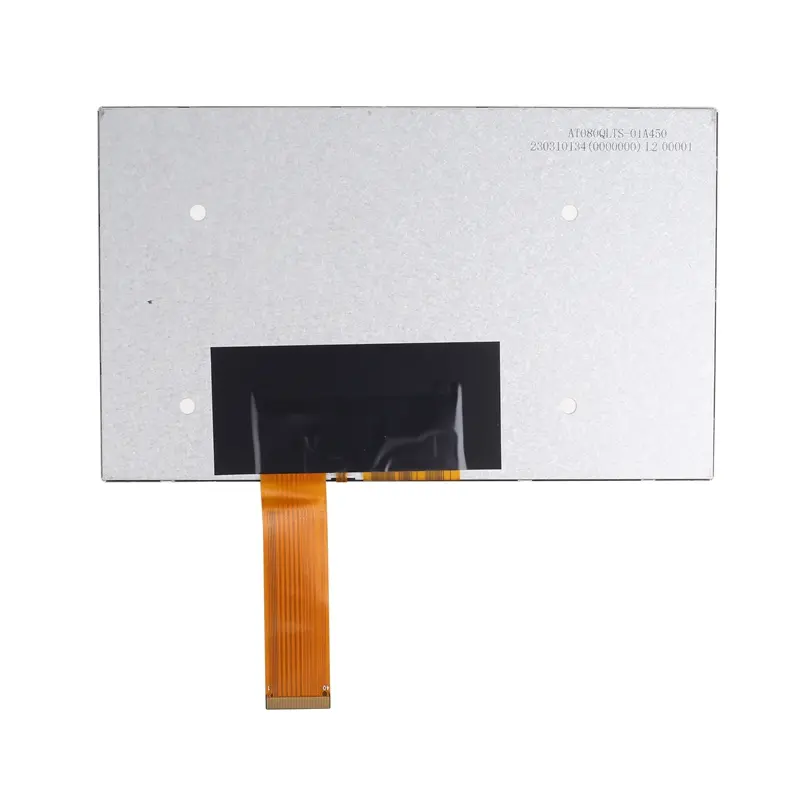

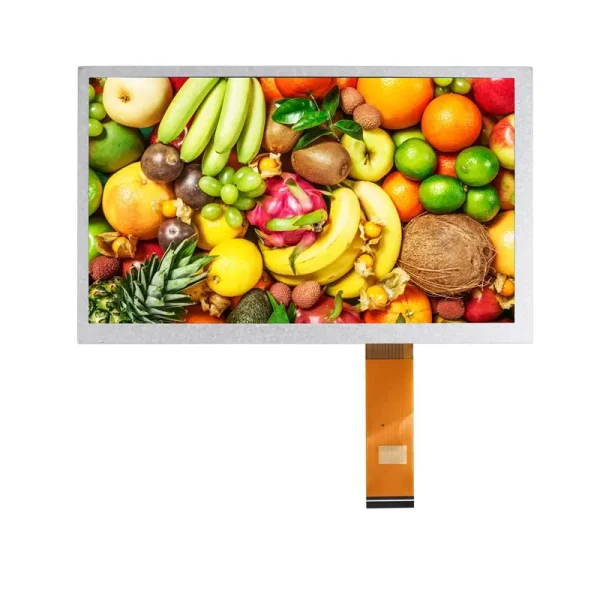

AT080QLTS-01A450 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight. The 8.0″ display area contains 1024 x 600 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7 | ||
| Viewing Direction | 6:00 | O’Clock | |
| Operating temperature | -10~60 | ℃ | |
| Storage temperature | -20~70 | ℃ | |

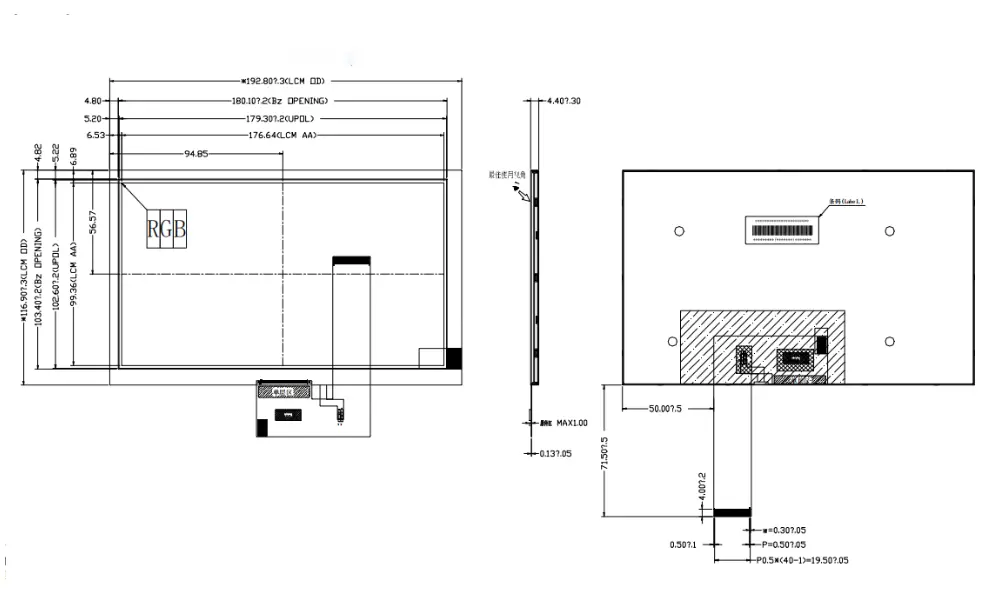

| Module size | 192.8×116.9×4.4 | mm | |
| Active Area(W×H) | 176.64（H)×99.36（V) | mm | |
| Number of Dots | 1024×600 | dots | |
| LCM Controller | EK79001H | – | |
| Backlight | LED | pcs | customizable |
| Brightness | 450 | cd/m² | customizable |
| Interface | LVDS | – | customizable |
| Connector | 40 | pins | customizable |
| Size | 8 |
| Resolution | 1024*600 |
| Outline Size | 192.8*116.9 |
| Active Area | 176.64*99.36 |
| Driver IC | EK79001H |
| Brightness | 450 |
| Interface | LVDS |
| Viewing Angle | IPS |
