AT096HSIF-01A350
AT096HSIF-01A350
Product name: 0.96inch TFT LCD display
Model No.: AT096HSIF-01A350
Display Type: 0.96“TFT
Viewing Direction: All
Interface： SPI
LCM Controller： ST7735S
Operating temperature： 70~-20
Brightness(cd/m²)： 350
Touch Screen： /
Share to:

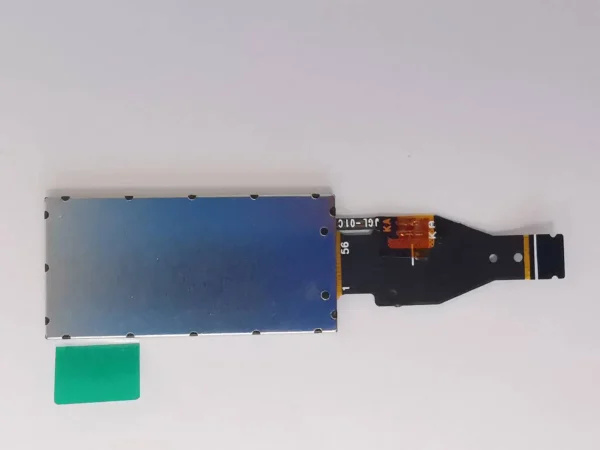

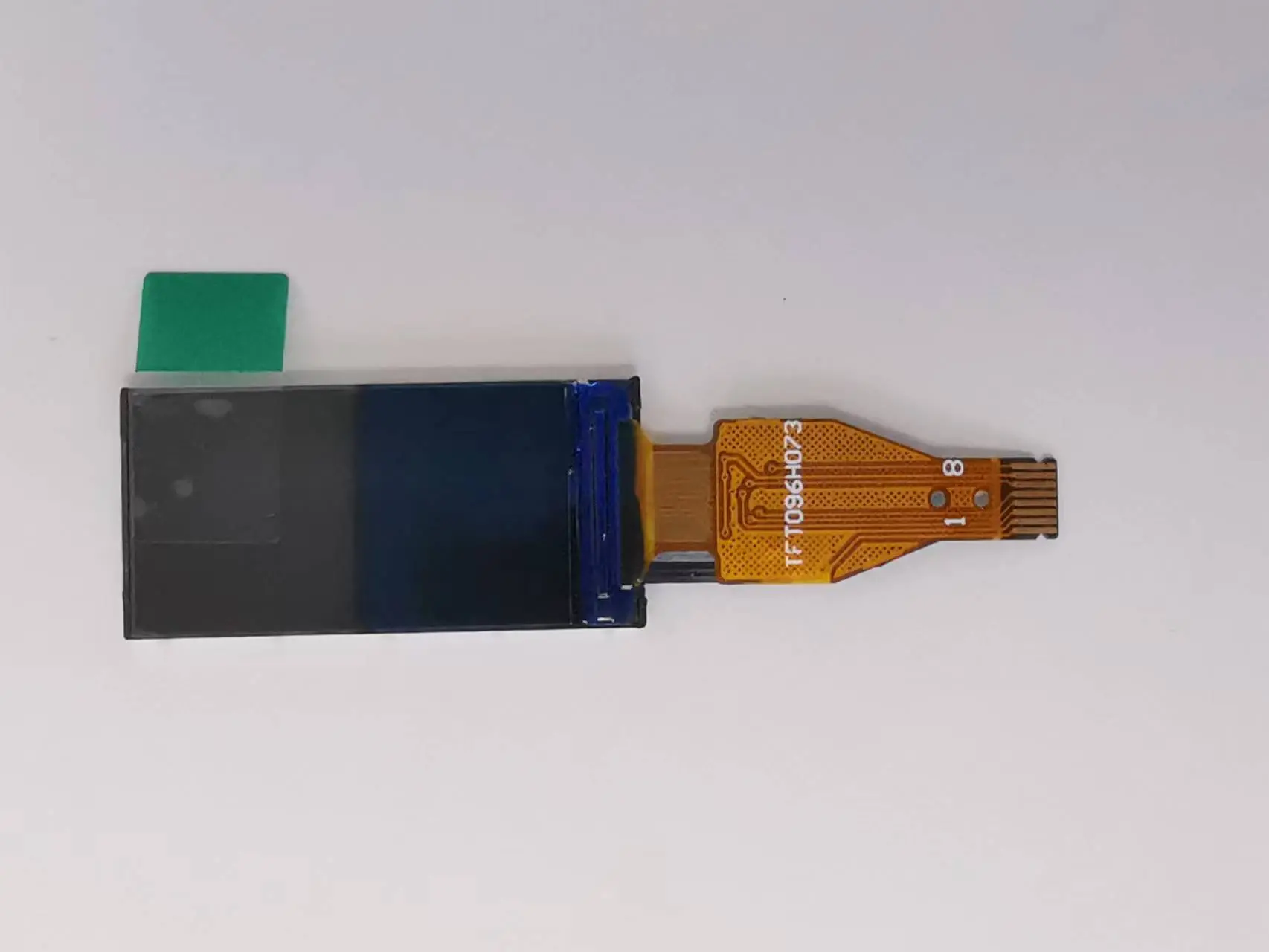

AT096HSIF-01A350 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit. The 0.96″ display area contains 80 x (RGB) x160 pixels and can display up to 262K colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 262K | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | 70~-20 | ℃ | |
| Storage temperature | 80~-30 | ℃ | |
| Module size | 13.5 | mm | |
| Active Area(W×H) | 10.8×21.696 | mm | |
| Number of Dots | 80×160 | dots | |
| LCM Controller | ST7735S | – | |
| Backlight | LED | pcs | customizable |
| Brightness | 350 | cd/m² | customizable |
| Interface | SPI | – | |
| Connector | 8 | pins | customizable |
| Size | 0.9 |
| Resolution | 80*160 |

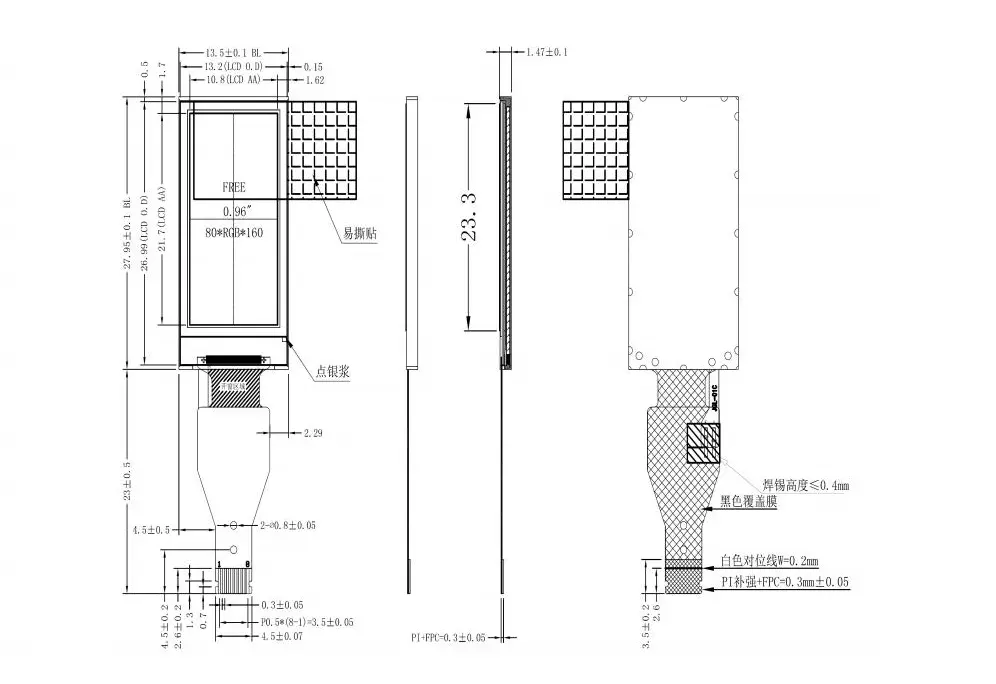

| Outline Size | 13.5*27.95 |
| Active Area | 10.8 *21.7 |
| Driver IC | ST7735S |
| Brightness | 350 |
| Interface | SPI |
| Viewing Angle | IPS |
