AT070BLIC-01A450CP
AT070BLIC-01A450CP
Product name: 7.0 inch TFT LCD Display
Model No.: AT070BLIC-01A450CP
Display Type: TFT
Viewing Direction: All
Interface: LVDS
LCM Controller: HX8282+HX8696
Operating temperature: -20-70℃
Brightness(cd/m²): 450
Touch Screen: With CTP
Share to:

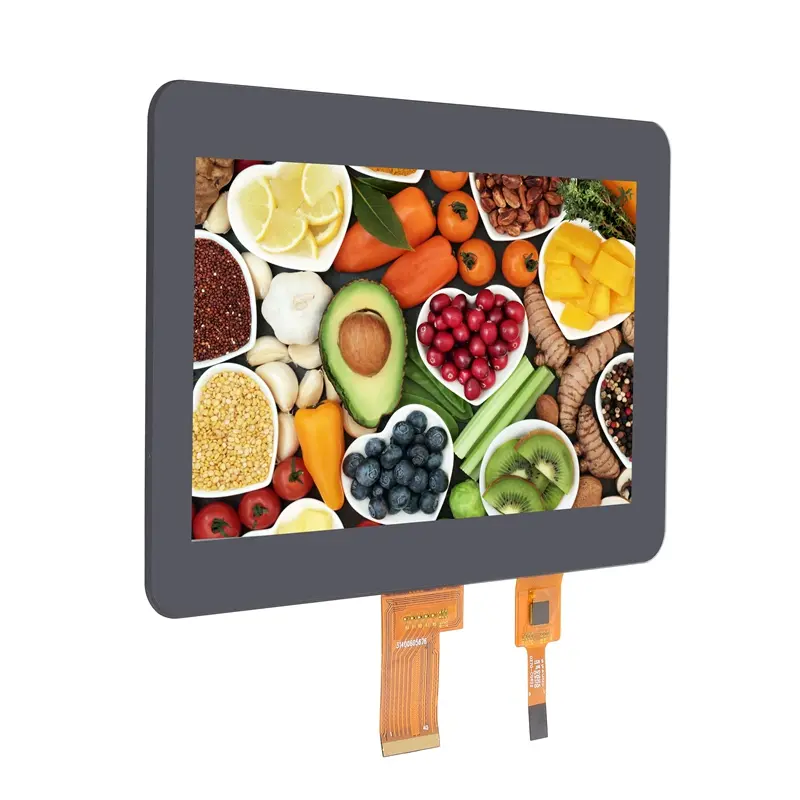

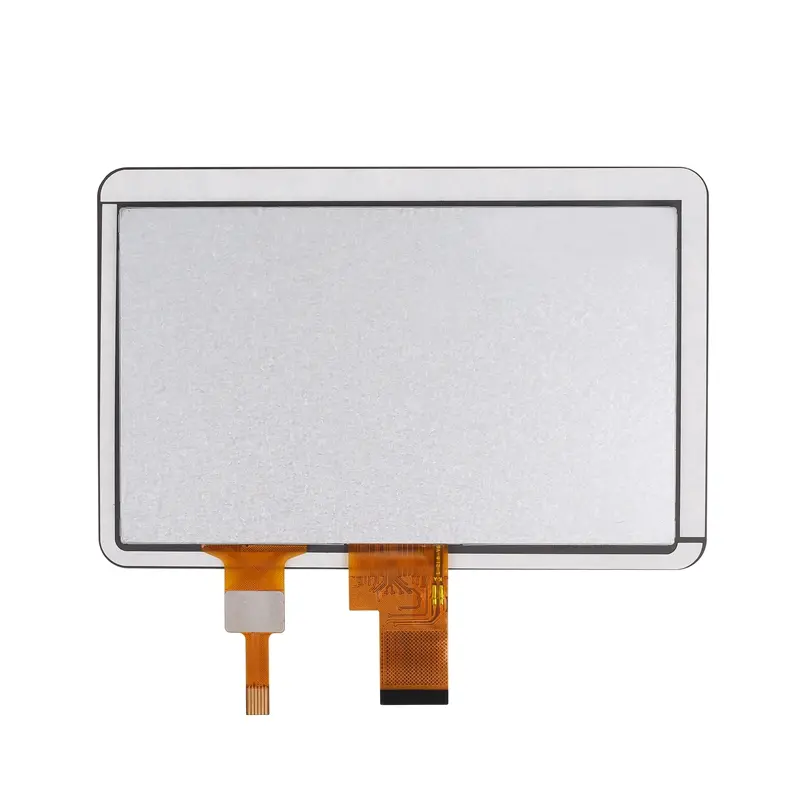

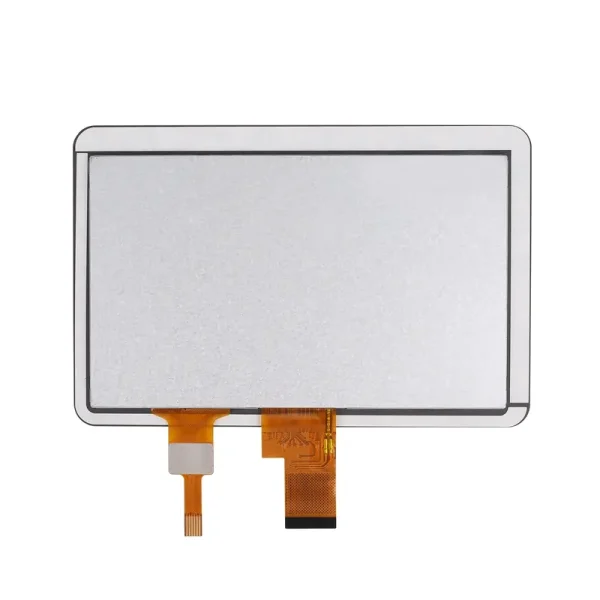

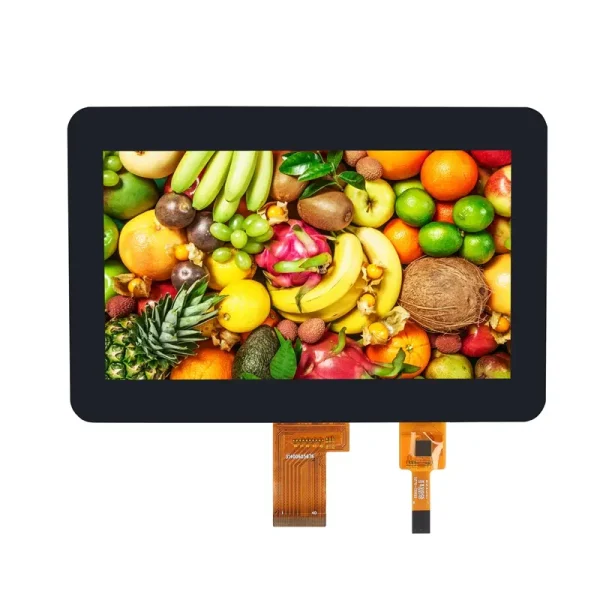

AT070BLIC-01A450CP is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight. The 7.0″ display area contains 1024 x 600 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7 | ||
| Viewing Direction | All | O’Clock | |
| Operating temperature | -20-70℃ | ℃ | |
| Storage temperature | -30-80℃ | ℃ | |

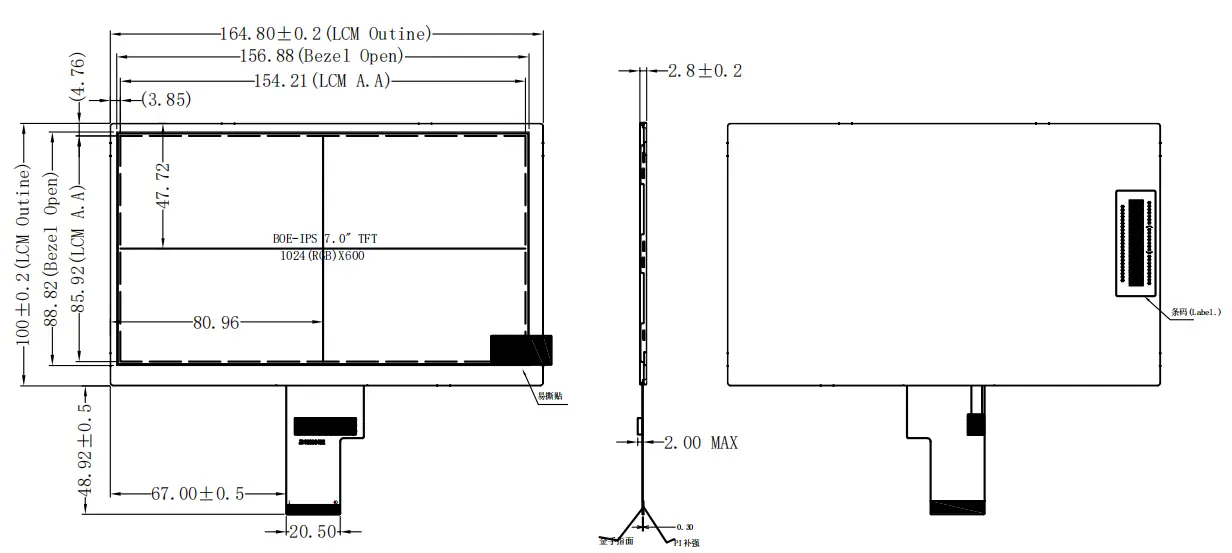

| Module size | 181.85×119.8×4.95 | mm | |
| Active Area(W×H) | 154.21（H)×85.92（V) | mm | |
| Number of Dots | 1024×600 | dots | |
| LCM Controller | HX8282+HX8696 | – | |
| Backlight | LED*21 | pcs | customizable |
| Brightness | 450 | cd/m² | customizable |
| Interface | LVDS | – | customizable |
| Connector | 40 | pins | customizable |
| Size | 7 |
| Resolution | 1024*600 |
| Outline Size | 181.86*119.8 |
| Active Area | 154.21 *85.92 |
| Driver IC | HX8282 |
| Brightness | 450 |
| Interface | LVDS |
| Viewing Angle | IPS |
