AT070QRTC-01A650
AT070QRTC-01A650
Product name: 7 inch TFT LCD Display
Model No.: AT070QRTC-01A650
Display Type: TFT
Viewing Direction: ALL
Interface: RGB
LCM Controller: /
Operating temperature: -30~80
Brightness(cd/m²): 650
Touch Screen: /
Share to:

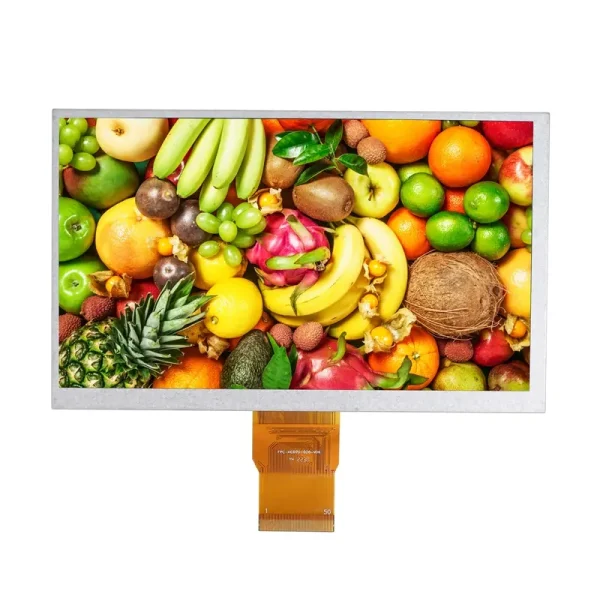

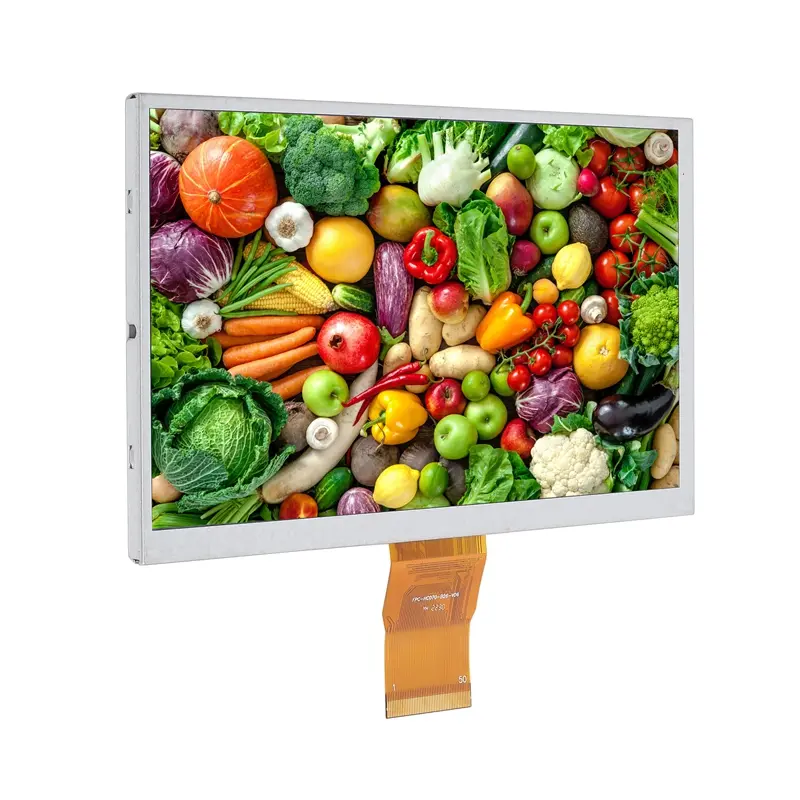

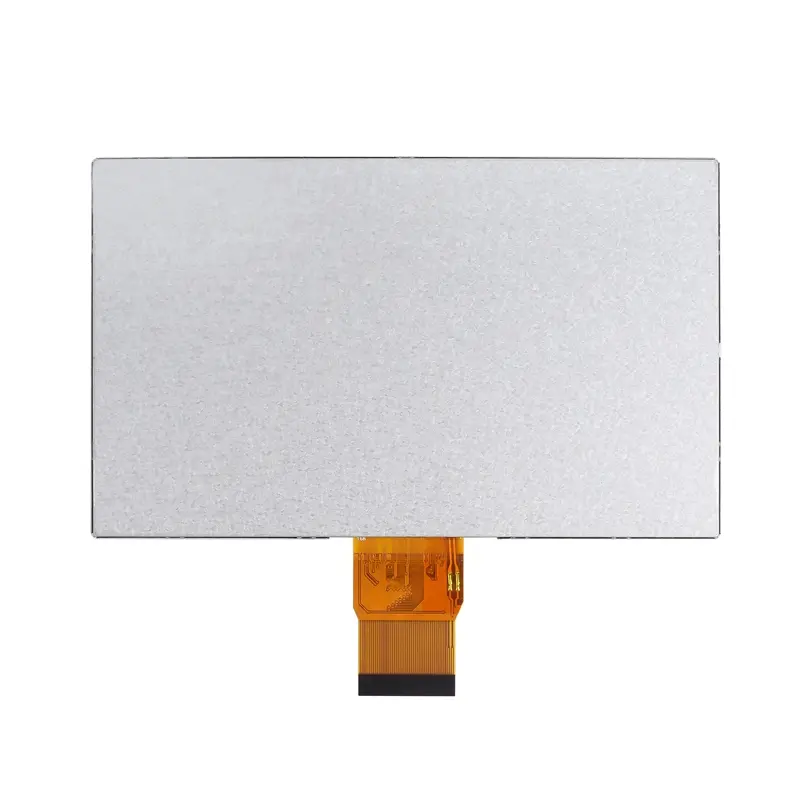

AT070QRTC-01A650 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight. The 7.0″ display area contains 1024（RGB) x 600 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7 | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -30~80 | ℃ | |
| Storage temperature | -30~80 | ℃ | |

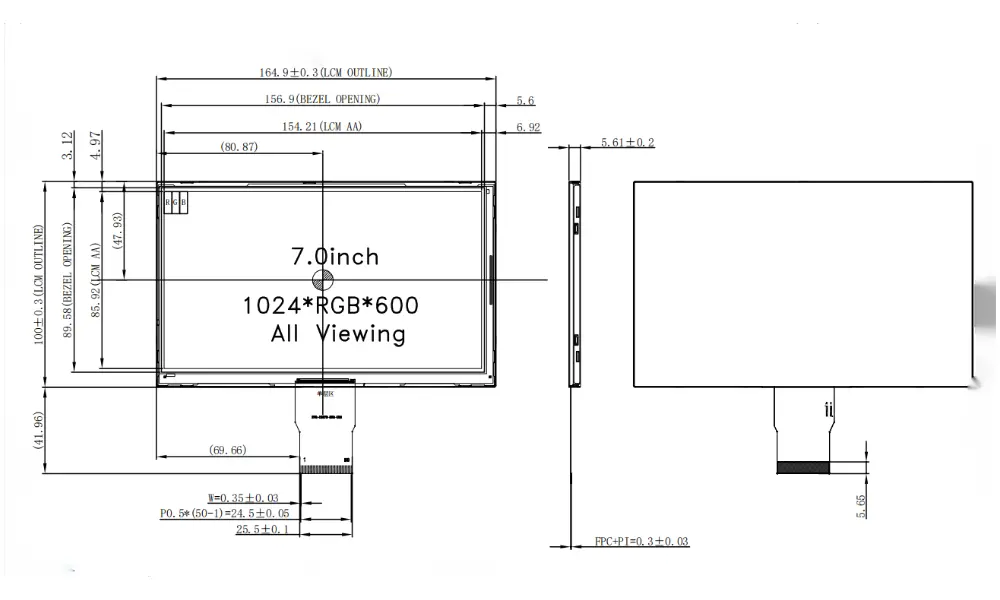

| Module size | 164.9×100×5.61 | mm | |
| Active Area(W×H) | 154.21（H)×285.92（V) | mm | |
| Number of Dots | 1024×600 | dots | |
| LCM Controller | / | – | |
| Backlight | LED | pcs | customizable |
| Brightness | 650 | cd/m² | customizable |
| Interface | RGB | – | customizable |
| Connector | 50 | pins | customizable |
| Size | 7 |
| Resolution | 1024*600 |
| Outline Size | 164.9*100 |
| Active Area | 154.21 *285.92 |
| Driver IC | / |
| Brightness | 650 |
| Interface | RGB |
| Viewing Angle | IPS |
