Product name: 2.1inch TFT LCD display
Model No.: AT-T021BRIF-01A600
Display Type TFT, IPS
Viewing Direction ALL
Interface RGB18bit+SPI
LCM Controller ST7701S
Operating temperature -20~+70℃
Brightness(cd/m²) 250cd/m²
Touch Screen Without touch screen
Share to:
AT-T021BRIF-01A600 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,and a back light. The 2.1″ display are a contains 480X480 pixels and can display up to 262K colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 262K | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |

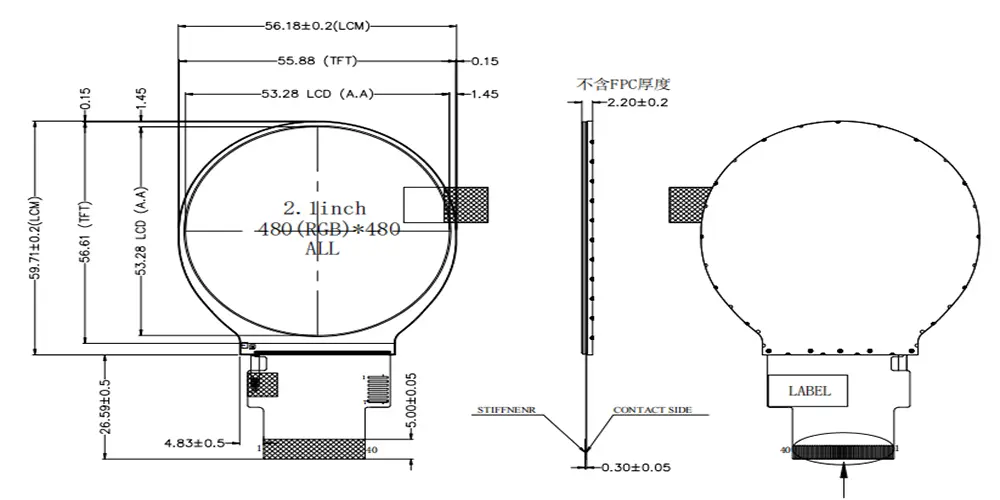

| Module size | 56.18X59.71X2.20 | mm | |
| Active Area(W×H) | 53.28(W)X53.28(H) | mm | |
| Number of Dots | 480X480 | dots | |
| LCM Controller | ST7701S | – | |
| Backlight | 4P-LEDs (white) | pcs | customizable |
| Brightness | 250 | cd/m² | customizable |
| Interface | RGB18bit+SPI | – | |
| Connector | 40 | pins | customizable |
| Size | 2.1 |
| Resolution | 480*480 |
| Outline Size | 56.18*59.71 |
| Active Area | 53.28*53.28 |
| Driver IC | ST7701S |
| Brightness | 600 |
| Interface | RGB/SPI |
| Viewing Angle | IPS |
| Remark | Round TFT |
