AT055QMIH-A400
AT055QMIH-A400
Product name: 5.5inch TFT LCD display
Model No.: AT055QMIH-A400
Display Type: 5.5“TFT
Viewing Direction: ALL
Interface: MIPI
LCM Controller: HX8399C
Operating temperature: 70~-20
Brightness(cd/m²): 400
Touch Screen: /
Share to:

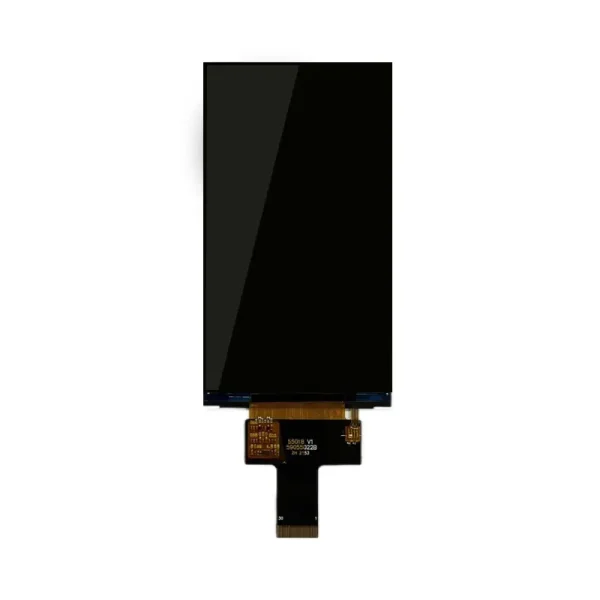

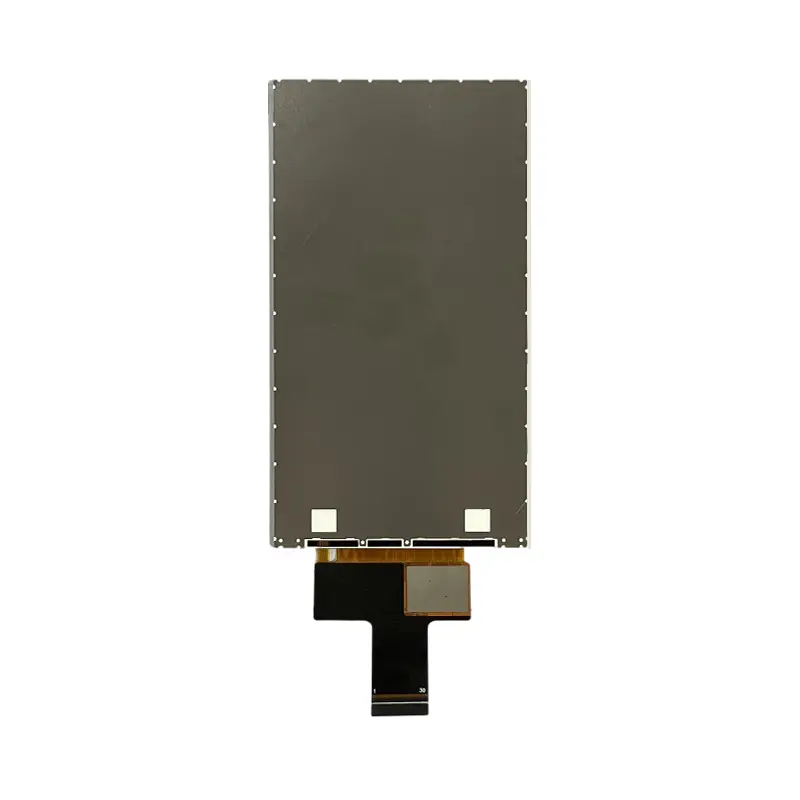

AT055QMIH-A400 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit. The 5.5″ display area contains 1080 x1920 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | 70~-20 | ℃ | |
| Storage temperature | 80~-30 | ℃ | |
| Module size | 70.34 | mm | |
| Active Area(W×H) | 68.94×120.96 | mm | |
| Number of Dots | 1080×1920 | dots | |
| LCM Controller | HX8399C | – | |
| Backlight | LED | pcs | customizable |
| Brightness | 400 | cd/m² | customizable |
| Interface | MIPI | – | |
| Connector | 40 | pins | customizable |
| Size | 5.5 |
| Resolution | 1080*1920 |

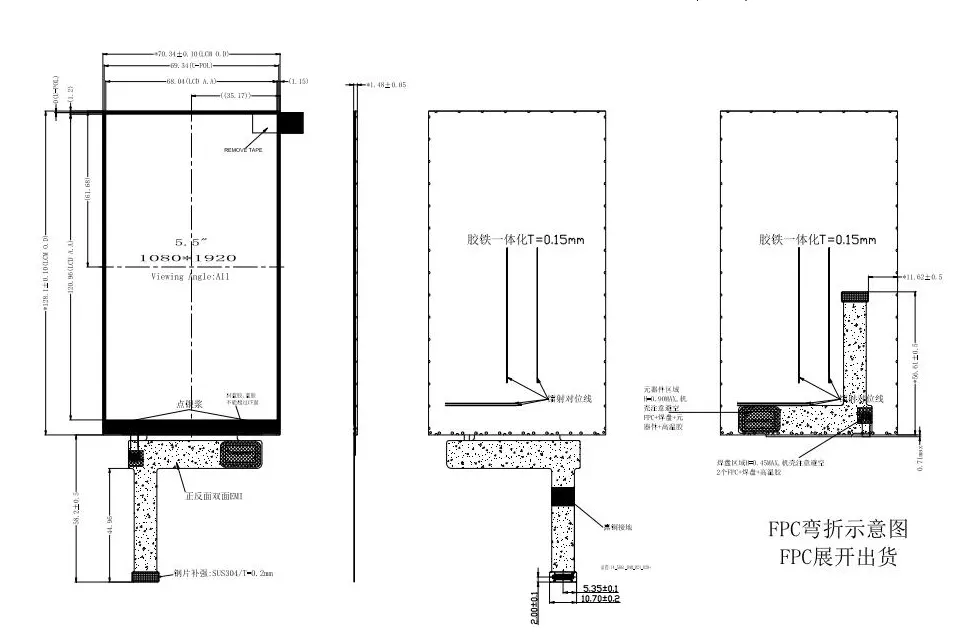

| Outline Size | 70.34*128.1 |
| Active Area | 68.04 *120.96 |
| Driver IC | HX8399C |
| Brightness | 400 |
| Interface | MIPI |
| Viewing Angle | IPS |
