AT020LRIK-01A350
AT020LRIK-01A350
Product name: 2.0inch TFT LCD display
Model No.: AT020LRIK-01A350
Display Type TFT, IPS
Viewing Direction ALL
Interface RGB/MCU
LCM Controller ST7789V
Operating temperature -20~+70℃
Brightness(cd/m²) 345cd/m²
Touch Screen Without touch screen
Share to:

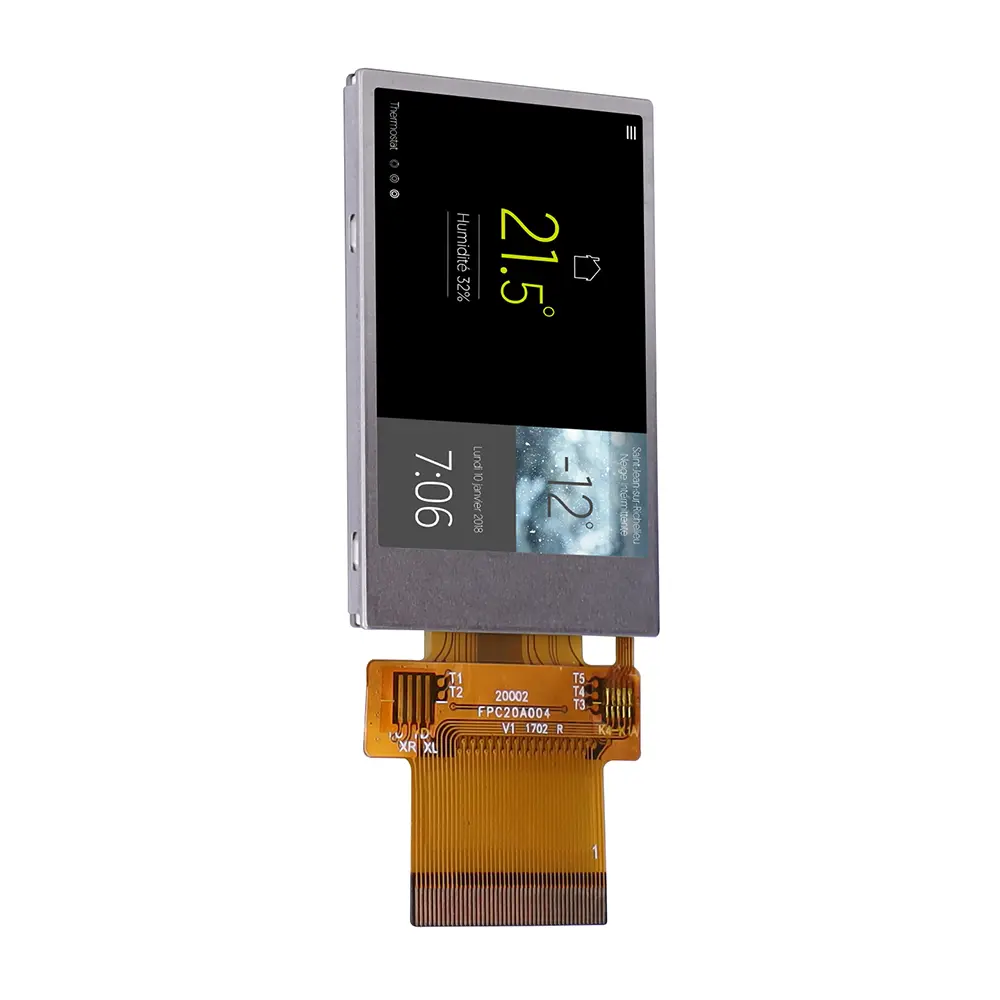

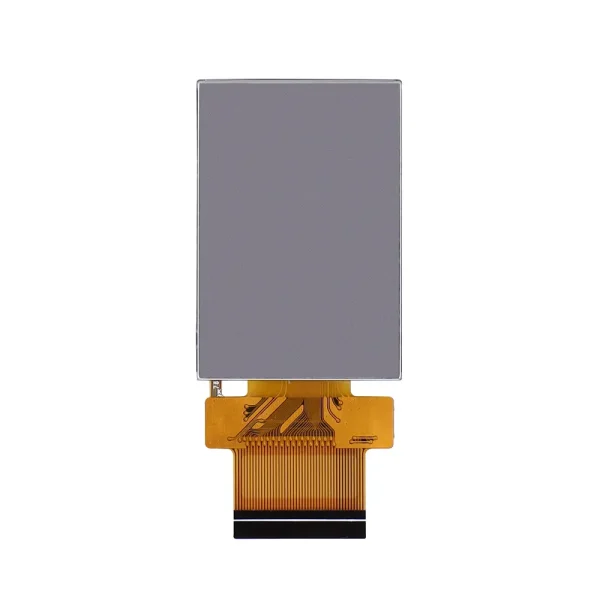

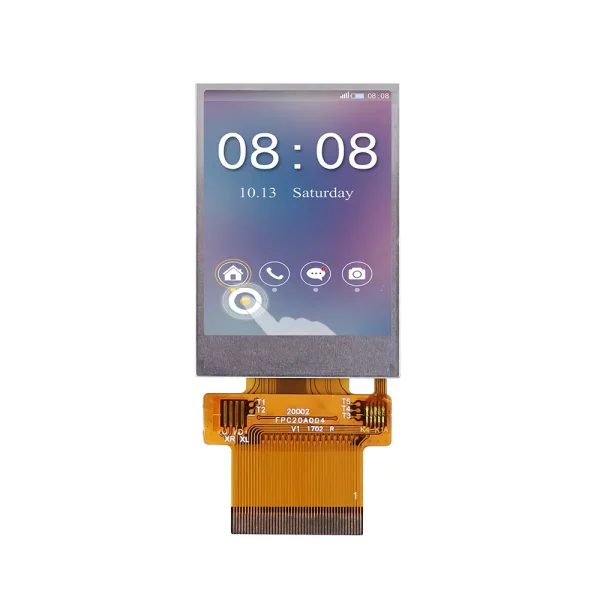

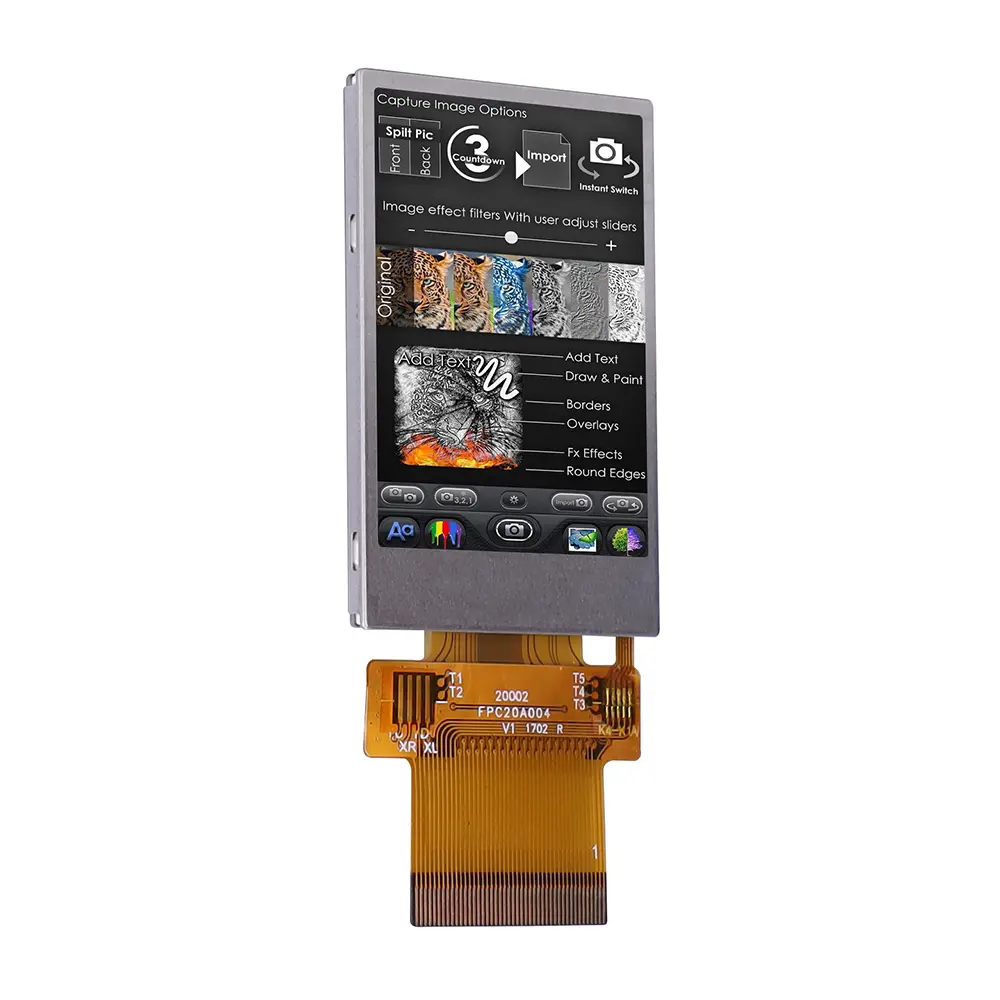

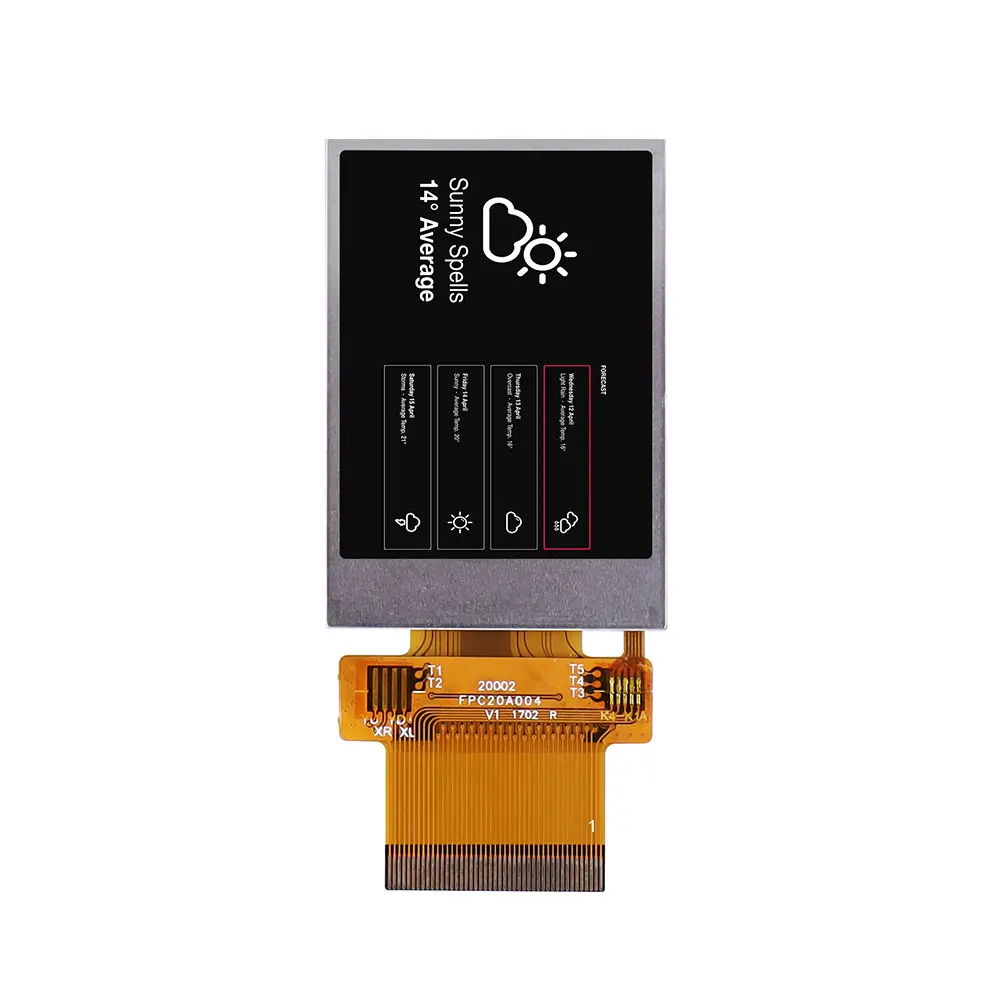

AT020LRIK-01A350 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,and a back light. The 2.0″ display are a contains 240X320 pixels and can display up to 262K colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 262K | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |

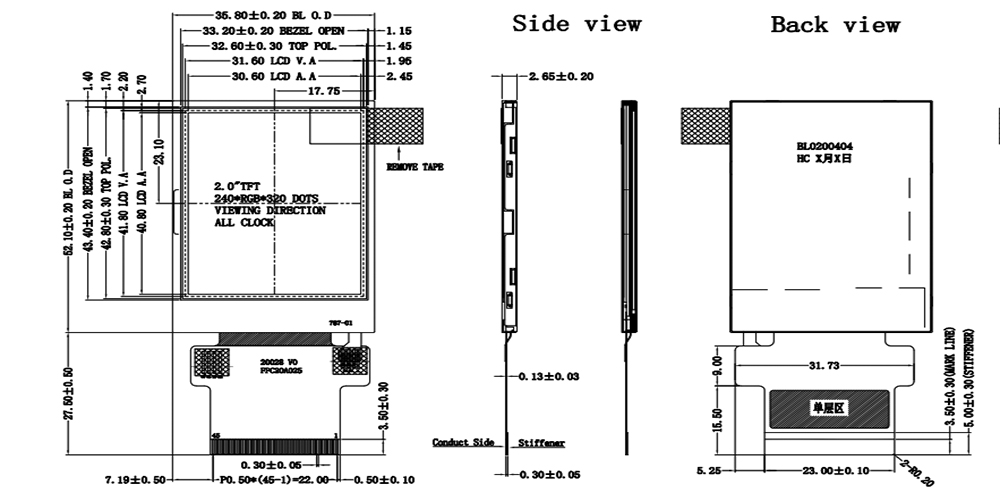

| Module size | 35.80X52.10X2.65 | mm | |
| Active Area(W×H) | 30.60(W)X40.80(H) | mm | |
| Number of Dots | 240X320 | dots | |
| LCM Controller | ST7789V | – | |
| Backlight | 4P-LEDs (white) | pcs | customizable |
| Brightness | 345 | cd/m² | customizable |
| Interface | RGB/MCU | – | |
| Connector | 45 | pins | customizable |
| Size | 2 |
| Resolution | 240*320 |
| Outline Size | 35.8*52.1 |
| Active Area | 30.6*40.8 |
| Driver IC | ST7789V |
| Brightness | 350 |
| Interface | RGB/MCU/SPI |
| Viewing Angle | Wide Viewing |
| Remark | Transflective |
