AT043HRIJ03A450CP
AT043HRIJ03A450CP
Product name: 4.3 inch TFT LCD Display
Model No.: AT043HRIJ03A450CP
Display Type: TFT
Viewing Direction: ALL
Interface: RGB
LCM Controller: SC7283
Operating temperature: -20~70
Brightness(cd/m²): 450
Touch Screen: /
Share to:

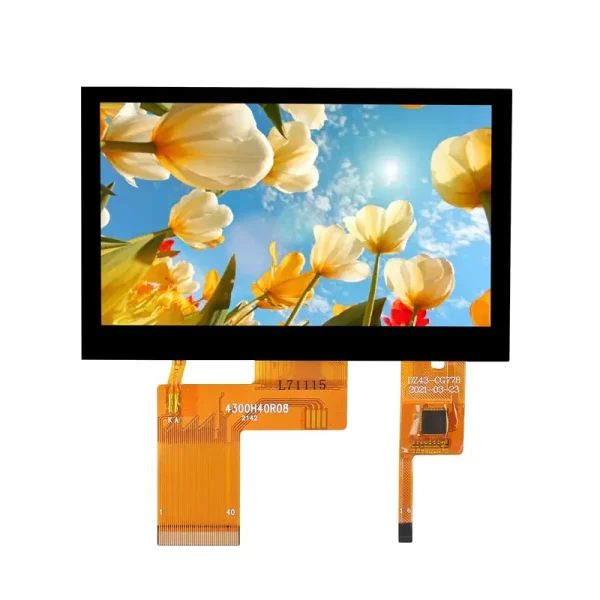

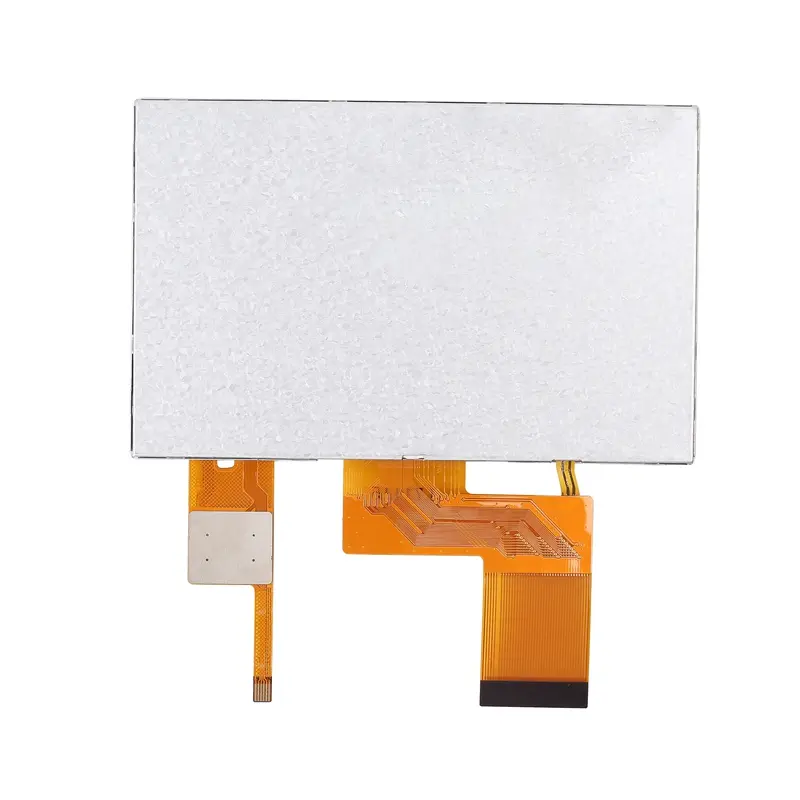

AT043HRIJ03A450CP is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight. The 4.3″ display area contains 480x 272 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7 | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~70 | ℃ | |
| Storage temperature | -30~80 | ℃ | |

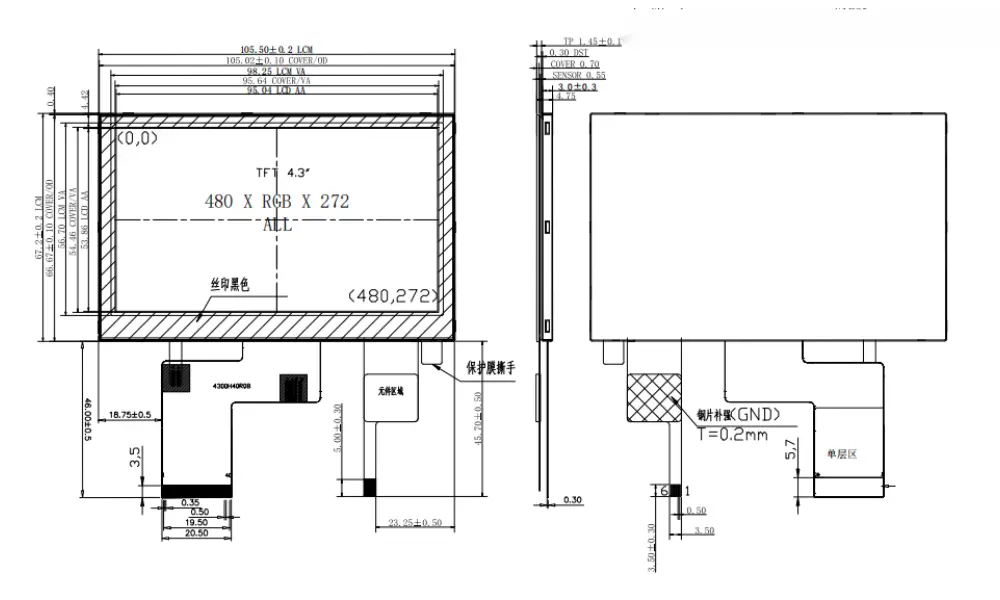

| Module size | 105.5×67.2×4.75 | mm | |
| Active Area(W×H) | 95.04（H)×53.86（V) | mm | |
| Number of Dots | 480×272 | dots | |
| LCM Controller | SC7283 | – | |
| Backlight | LED | pcs | customizable |
| Brightness | 450 | cd/m² | customizable |
| Interface | RGB | – | customizable |
| Connector | 40 | pins | customizable |
| Size | 4.3 |
| Resolution | 480*272 |
| Outline Size | 105.5*67.2 |
| Active Area | 95.04 *53.86 |
| Driver IC | SC7283 |
| Brightness | 450 |
| Interface | RGB |
| Viewing Angle | IPS |
