AT-PM066S-01X
AT-PM066S-01X
Product name: 0.66inch PMOLED
Model No.: AT-PM066S-01X
Display COLOR: Monochrome (White)
Viewing Direction: All
Interface: 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C
Controller: SSD1315
Operating temperature: -40~+85℃
Brightness(cd/m²): 100cd/m²
Touch Screen: With/without touch screen
Share to:

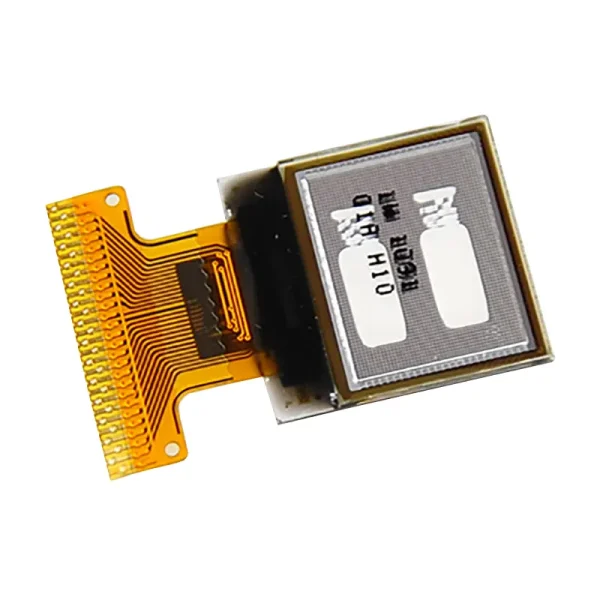

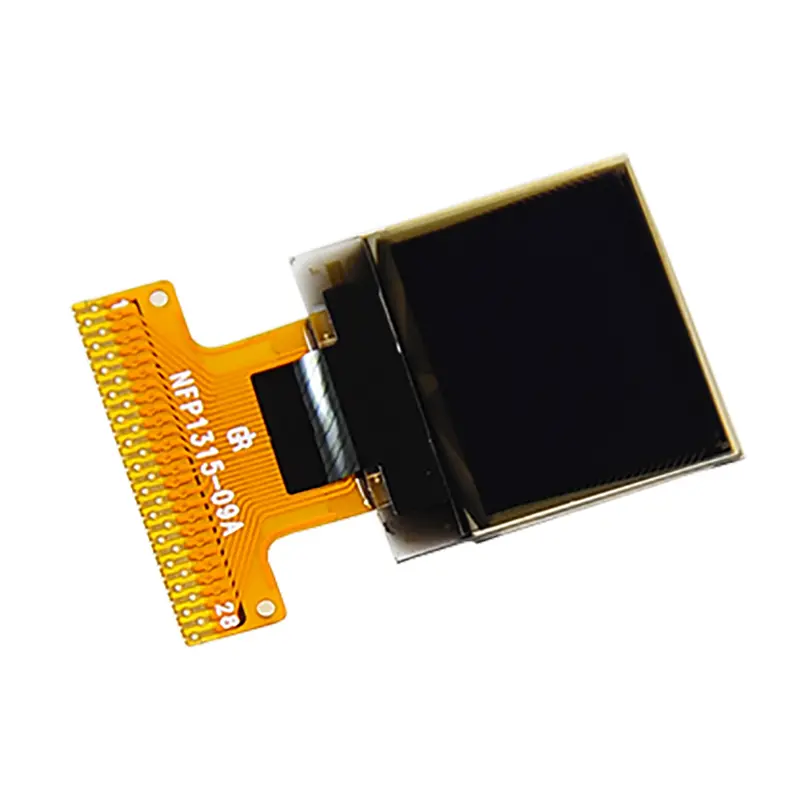

AT-PM066S-01X is a OLED module. It is composed of a OLED panel, driver IC and FPC unit,this product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| OLED Type | PM | – | |
| Display color | Monochrome (White) | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -40~+85℃ | ℃ | |
| Storage temperature | -40~+85℃ | ℃ | |

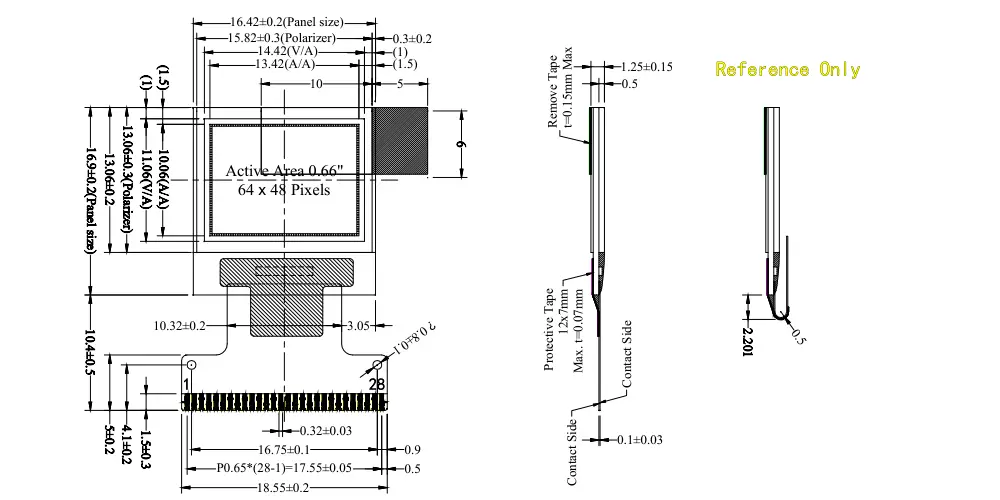

| Module size | 16.42X16.9X1.25 | mm | |
| Active Area(W×H) | 13.42(W)X10.06(H) | mm | |
| Number of Dots | 64X48 | dots | |
| Controller | SSD1315 | – | |
| Brightness | 100 | cd/m² | |
| Interface | 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C | – | |
| Connector | 28 | pins | customizable |
| Size | 0.66 |
| Resolution | 64×48 |
| A.A.(mm) | 13.42×10.06 |
| Outline (mm) | 16.42×16.9 |
| Interface | Parallel/IC/SPI |
| IC | SSD1315 |
| COLOR | W |
