Product name: 2.42inch PMOLED
Model No.: AT-PM242C-01R
Display COLOR: YELLOW (or WHITE)
Viewing Direction: All
Interface: MCU
Controller: SPD0301
Operating temperature: -40~+70℃
Brightness(cd/m²): 70cd/m²
Touch Screen: without touch screen
Share to:

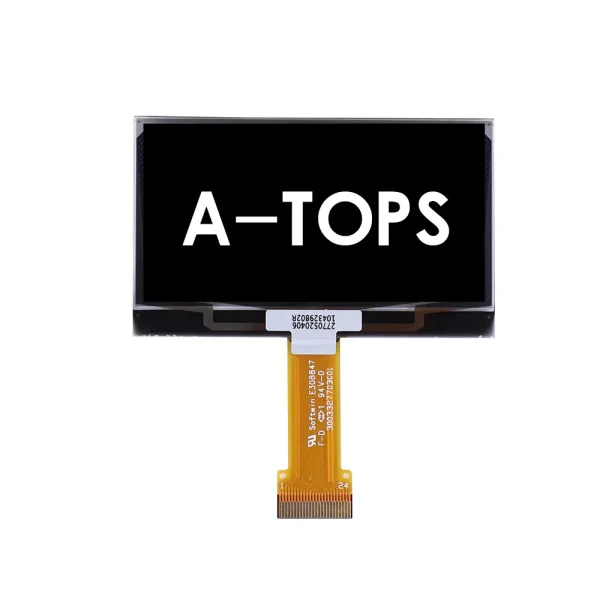

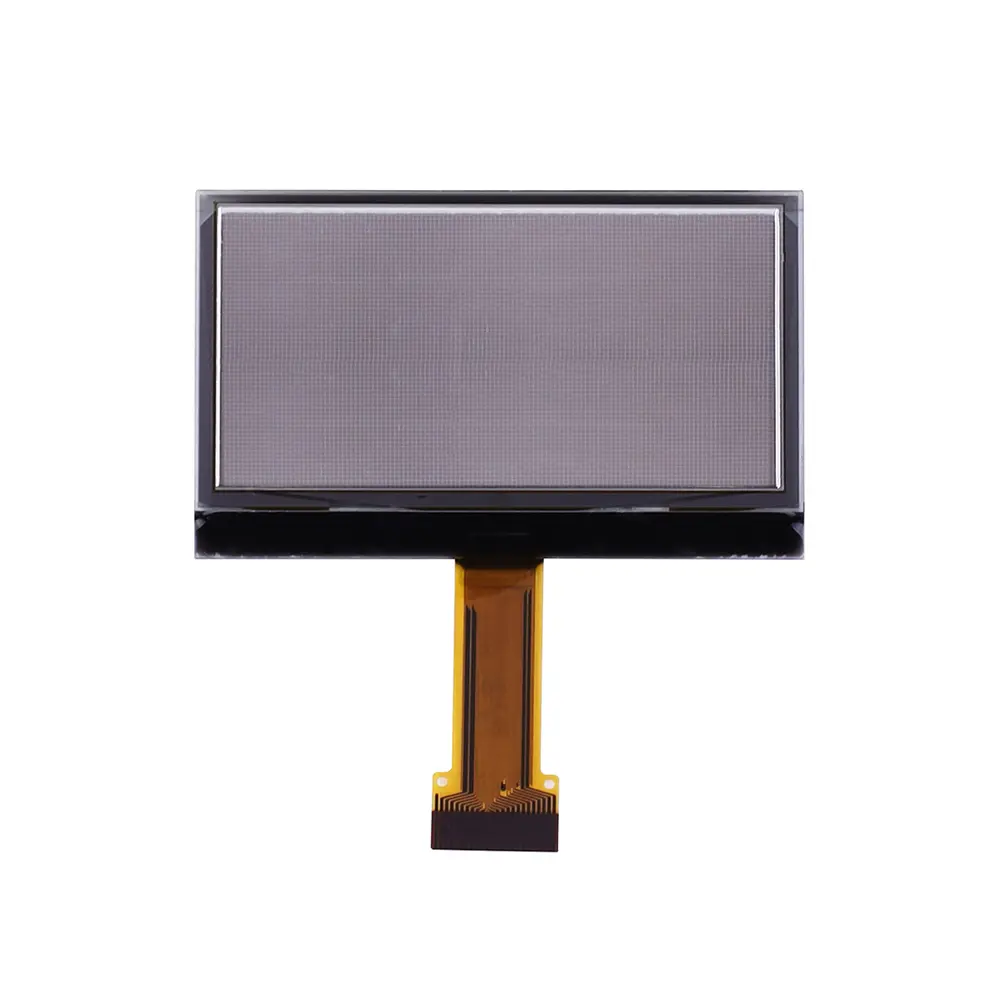

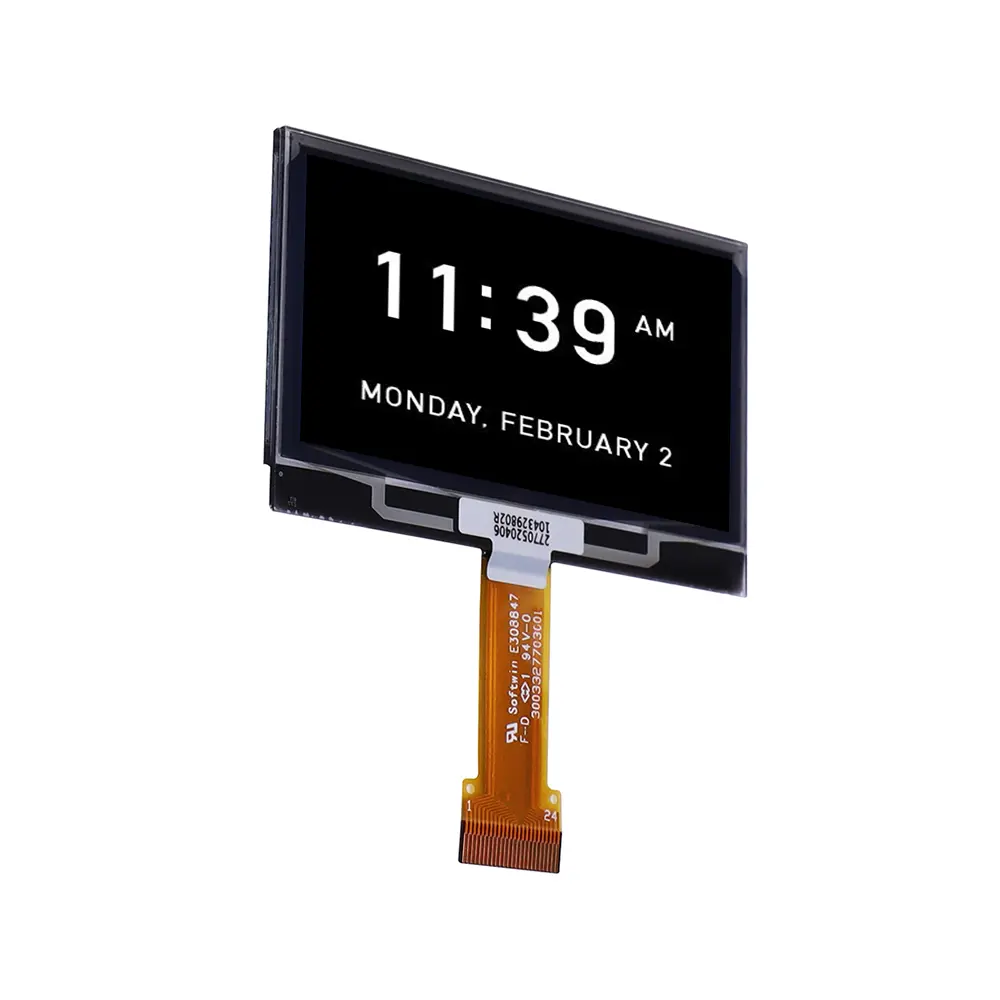

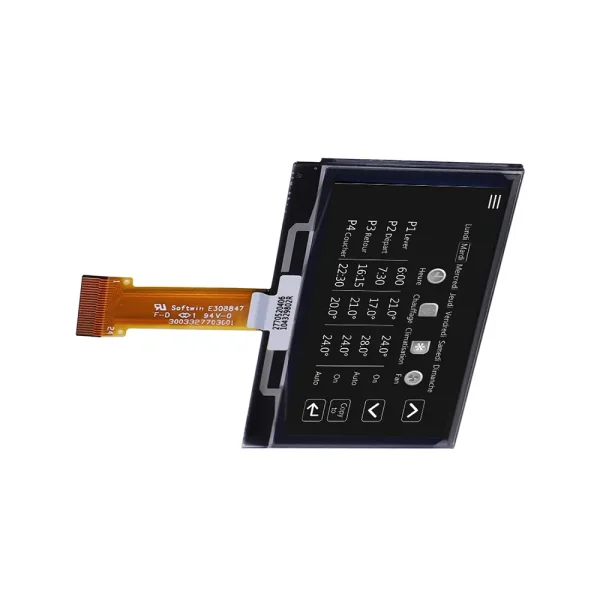

AT-PM242C-01R is a OLED module. It is composed of a OLED panel, driver IC and FPC unit,this product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| OLED Type | PM | – | |
| Display color | YELLOW (or WHITE) | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -40~+70℃ | ℃ | |
| Storage temperature | -40~+85℃ | ℃ | |

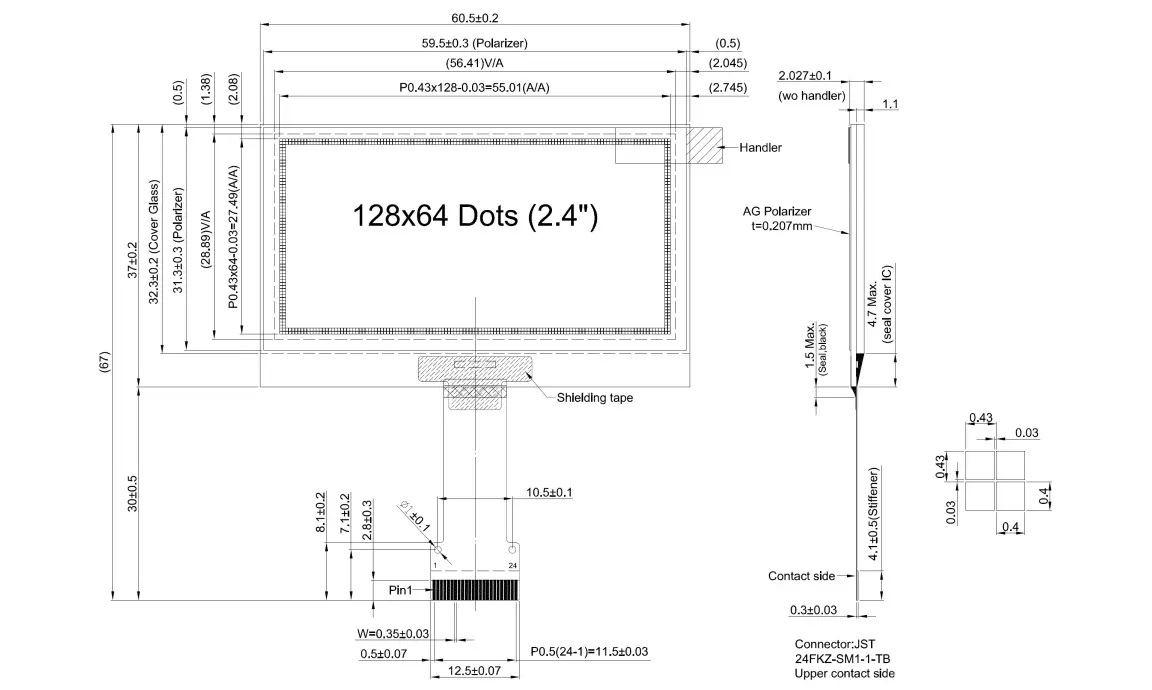

| Module size | 60.5(W)x67(H)x2.027(T) | mm | |
| Active Area(W×H) | 55.01(W)x27.49(H) | mm | |
| Number of Dots | 128 x 64 | dots | |
| Controller | SPD0301 | – | |
| Brightness | 70 | cd/m² | |
| Interface | MCU | – | |
| Connector | 24 | pins | customizable |
| Size | 2.42 |
| Resolution | 128×Y64 |
| A.A.(mm) | 55.01×27.29 |
| Outline (mm) | 60.5×37 |
| Interface | MCU |
| COLOR | Y |
| IC | SPD0301 |
