Product name: 1.37 inch PMOLED
Model No.: AT-PM137S-01X
Display COLOR: 262K/65K
Viewing Direction: 160 °
Interface: MCU/SPI
Controller: SSD1351Z
Operating temperature: -40~+70℃
Brightness(cd/m²): 80 cd/m²
Touch Screen: With/without touch screen
Share to:

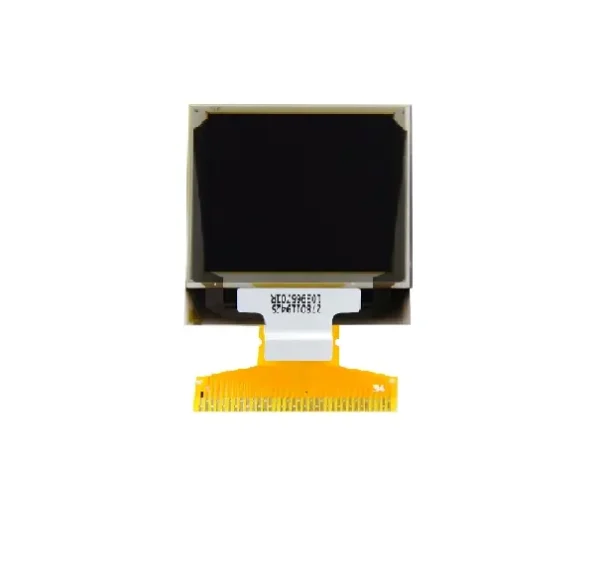

AT-PM137S-01X is a OLED module. It is composed of a OLED panel, driver IC and FPC unit,this product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| OLED Type | PM | – | |
| Display color | 262K/65K | ||
| Viewing Direction | 160° | O’Clock | |
| Operating temperature | -40 ~ 70 | ℃ | |
| Storage temperature | -40 ~ 85 | ℃ | |

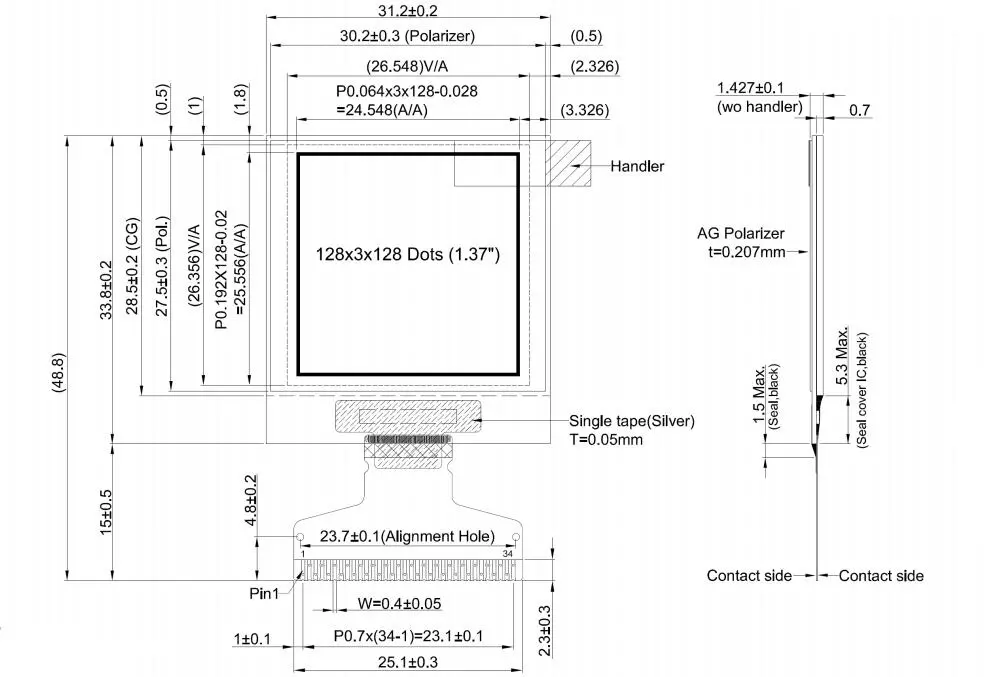

| Module size | 31.2X33.8X1.22 | mm | |
| Active Area(W×H) | 24.548(W)X25.556(H) | mm | |
| Number of Dots | 128*128 | dots | |
| Controller | SSD1351Z | – | |
| Brightness | 80 | cd/m² | |
| Interface | MCU/SPI | – | |
| Connector | 34 | pins | customizable |
| Size | 1.37 |
| Resolution | 128×128 |
| COLOR | Full Color |
| A.A.(mm) | 24.548×25.556 |
| Outline (mm) | 31.2×33.8 |
| Interface | Parallel / SPI |
| IC | SSD1351 |
