Product name: 1.12 inch PMOLED
Model No.: AT-PM112C-01R
Display COLOR: 262K &65K
Viewing Direction: 160°
Interface: MCU
Controller: SSD1351Z
Operating temperature: -40~+70℃
Brightness(cd/m²): 100cd/m²
Touch Screen: With/without touch screen
Share to:

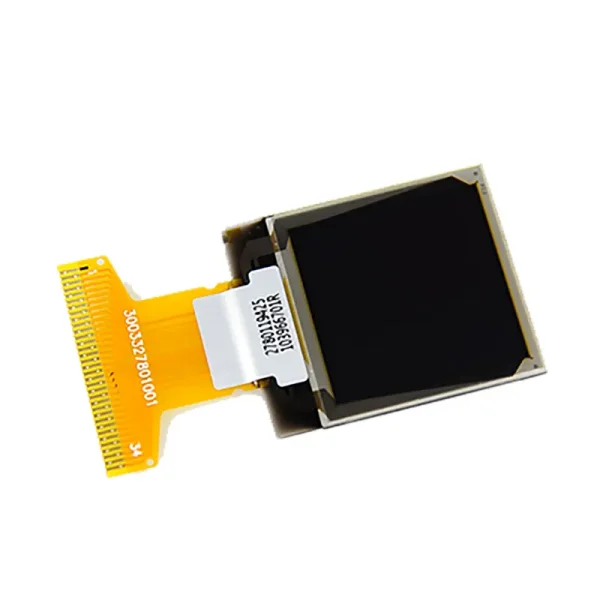

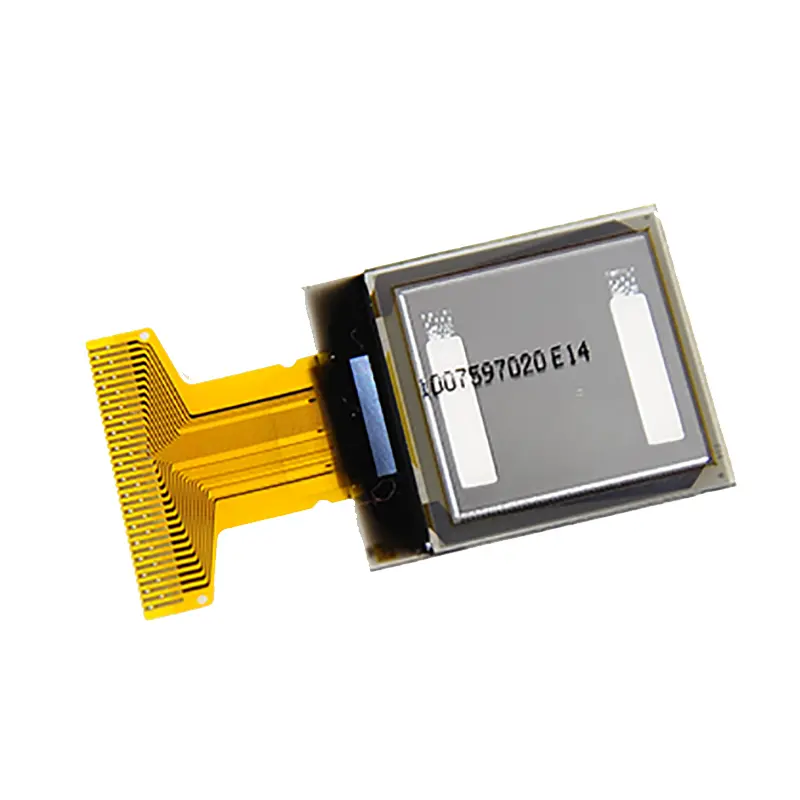

AT-PM112C-01R is a OLED module. It is composed of a OLED panel, driver IC and FPC unit,this product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| OLED Type | PM | – | |
| Display color | 262K &65K | ||
| Viewing Direction | 160 | O’Clock | |
| Operating temperature | -40 ~ 70 | ℃ | |
| Storage temperature | -40 ~ 85 | ℃ | |

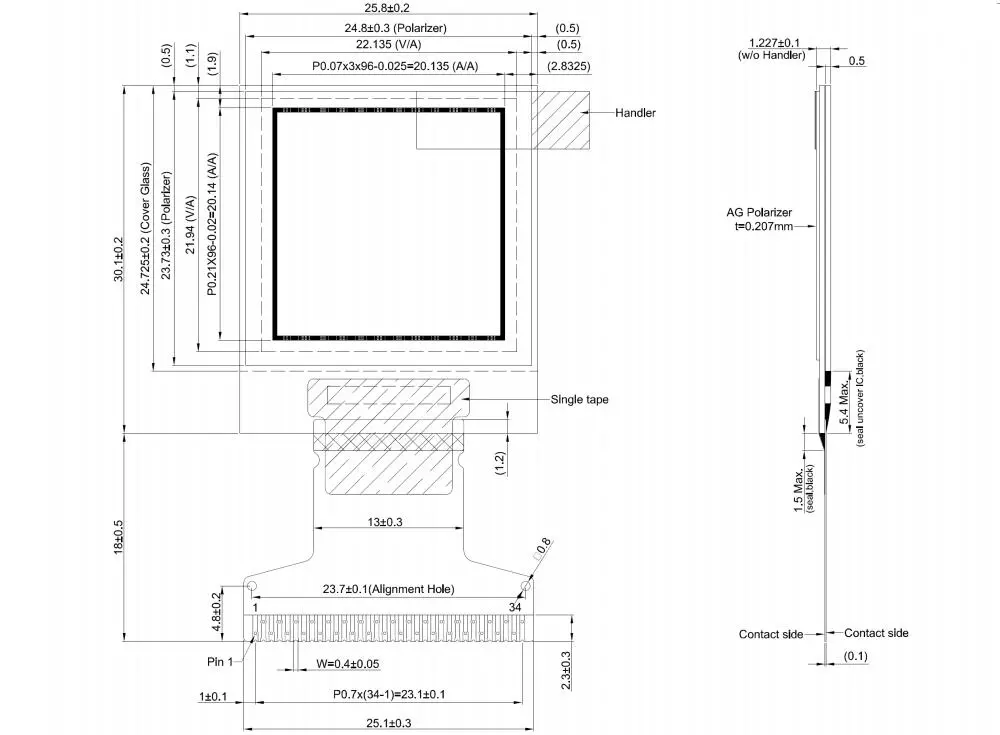

| Module size | 25.8X48.1X1.227 | mm | |
| Active Area(W×H) | 20.135(W)X20.14(H) | mm | |
| Number of Dots | 96*96 | dots | |
| Controller | SSD1351Z | – | |
| Brightness | 100 | cd/m² | |
| Interface | MCU/SPI | – | |
| Connector | 34 | pins | customizable |
| Size | 1.12 |
| Resolution | 96×96 |
| COLOR | Full Color |
| A.A.(mm) | 20.135×20.14 |
| Outline (mm) | 25.8×30.1 |
| Interface | MCU |
| IC | SSD1351 |
