AT-AM178M-01E
AT-AM178M-01E
Product name: 1.78inch AMOLED
Model No.: AT-AM178M-01E
Display COLOR： 16.7M
Viewing Direction： All
Interface： MIPI/SPI
Controller： RM69090/TMA525C
Operating temperature： -20~+70℃
Brightness(cd/m²)： 350cd/m²
Touch Screen： With touch screen
Share to:

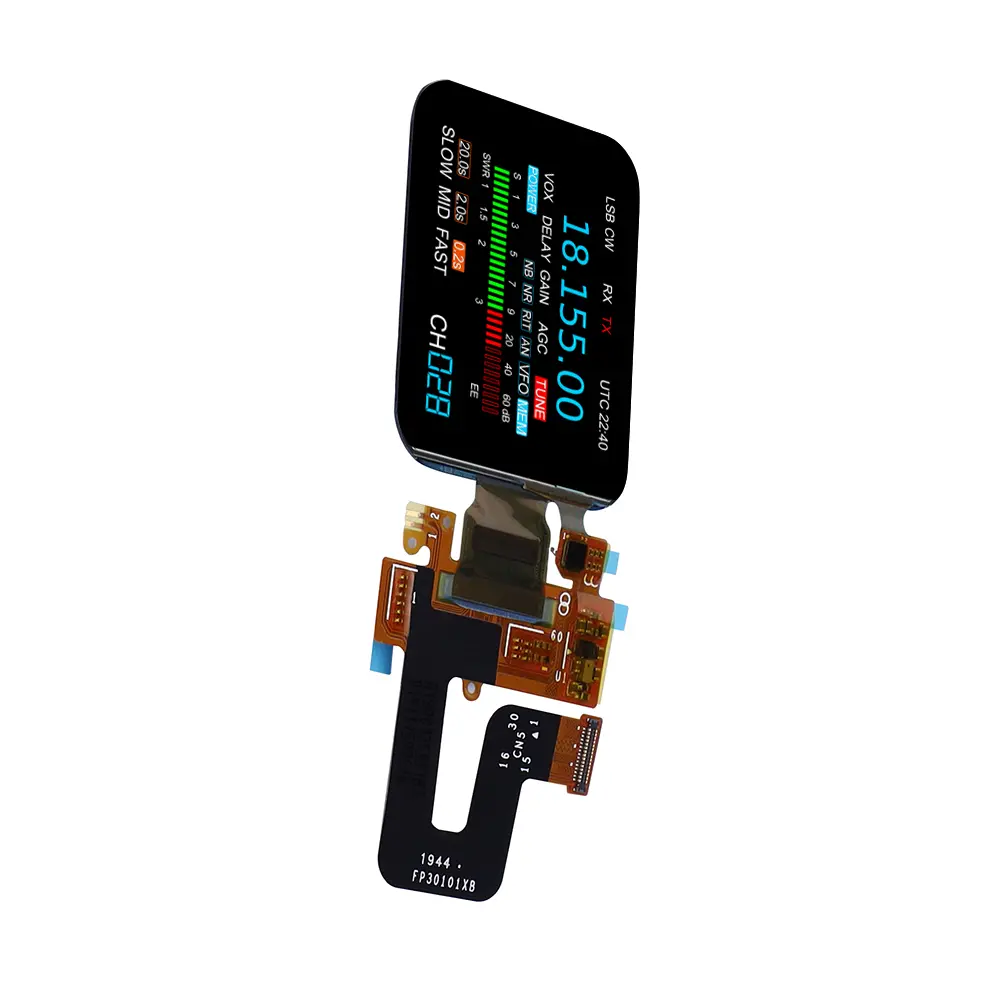

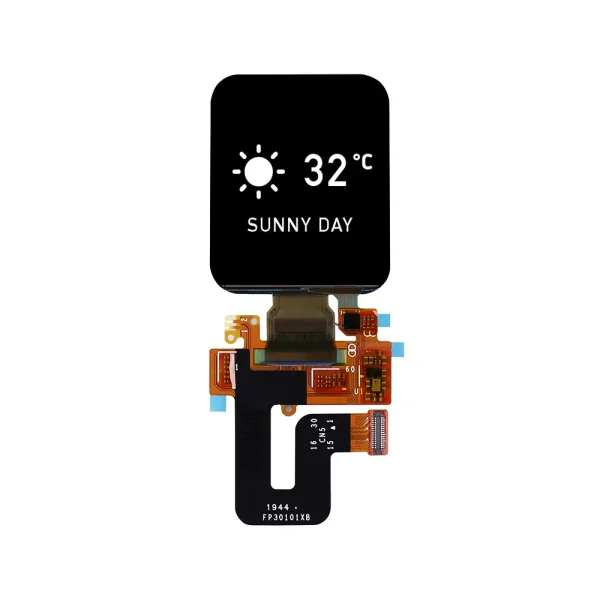

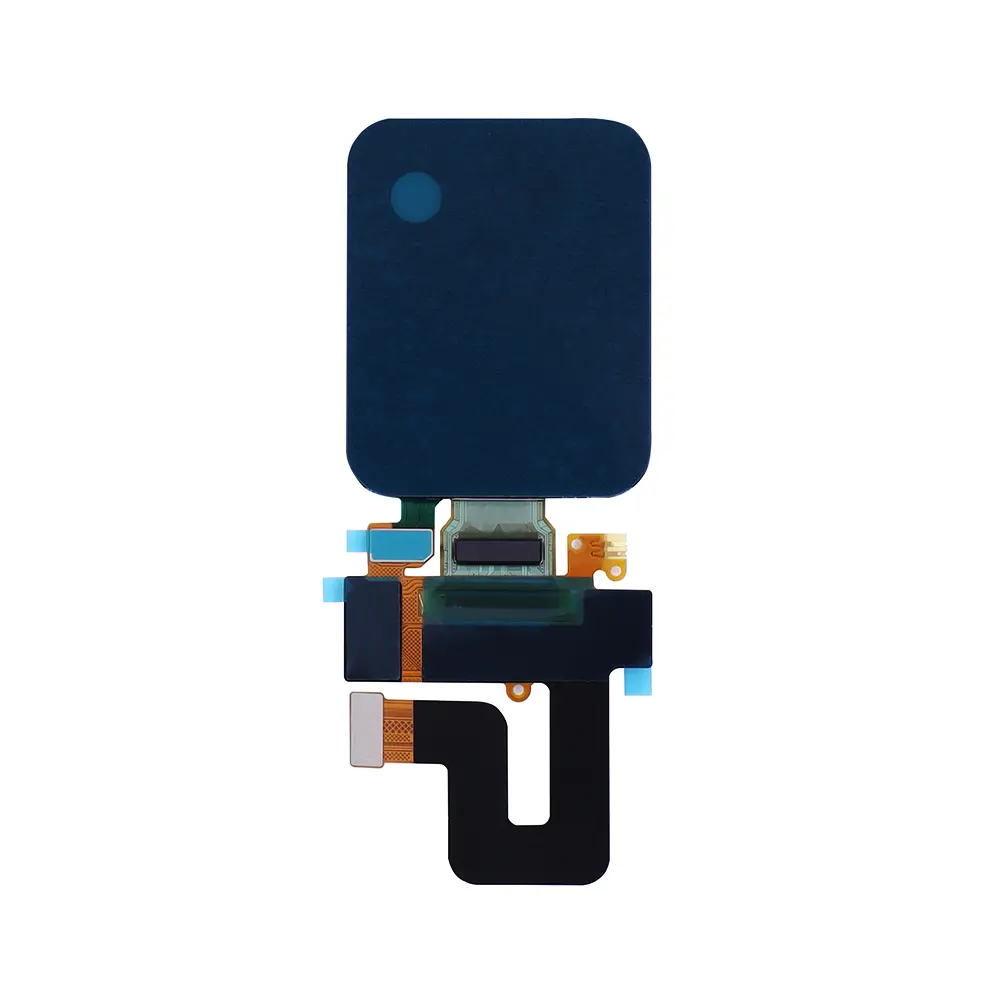

AT-AM178M-01E is a OLED module. It is composed of a OLED panel, driver IC and FPC unit,this product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| OLED Type | AMOLED | – | |
| Display color | 16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -40~+80 | ℃ | |

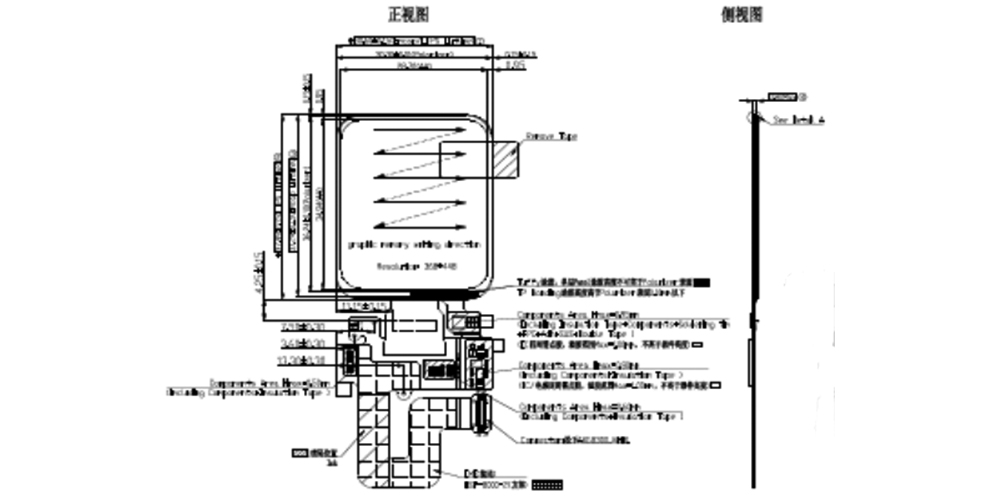

| Module size | 30.6*37.99 | mm | |
| Active Area(W×H) | 28.7*34.94 | mm | |
| Number of Dots | 368*448 | dots | |
| Controller | RM69090/TMA525C | – | |
| Brightness | 350 | cd/m² | |
| Interface | MIPI/SPI | – | |
| Connector | 34 | pins | customizable |
| Size | 1.78 |
| Resolution | 368×448 |
| COLOR | Full Color |
| A.A.(mm) | 28.7×34.94 |
| Outline (mm) | 30.6×37.99 |
| Interface | MIPI |
| IC | RM69090 |
