AT-PM096S-03X
AT-PM096S-03X
Product name: 0.96inch PMOLED
Model No.: AT-PM096S-03X
Display COLOR： Monochrome (White)
Viewing Direction： All
Interface： 4-wire SPI, I2C
Controller： CH1115
Operating temperature： -40~+85℃
Brightness(cd/m²)： 120cd/m²
Touch Screen： With/without touch screen
Share to:

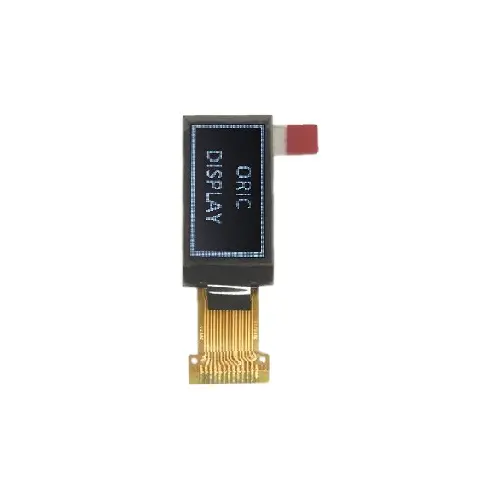

AT-PM096S-03X is a OLED module. It is composed of a OLED panel, driver IC and FPC unit,this product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| OLED Type | PM | – | |
| Display color | Monochrome (White) | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -40~+85℃ | ℃ | |
| Storage temperature | -40~+85℃ | ℃ | |

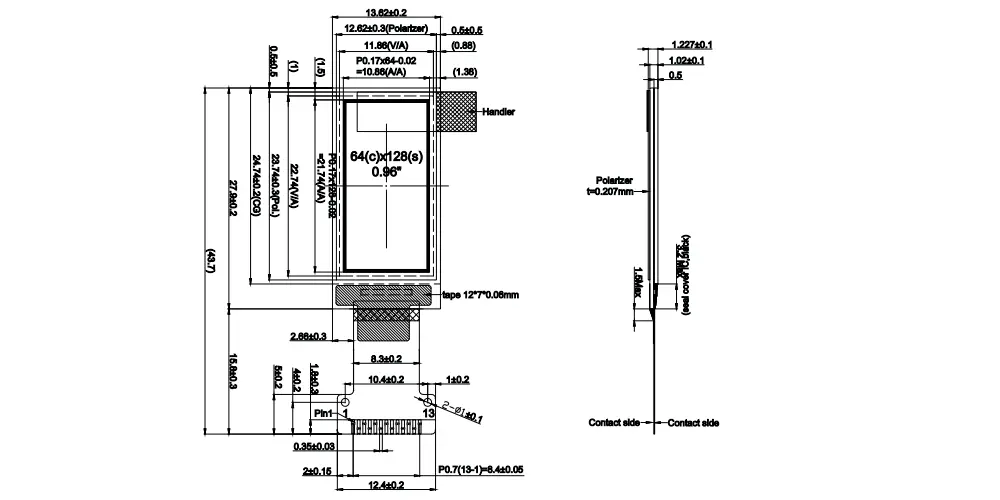

| Module size | 13.62X27.9X1.227 | mm | |
| Active Area(W×H) | 10.86(W)X21.74(H) | mm | |
| Number of Dots | 64X128 | dots | |
| Controller | CH1115 | – | |
| Brightness | 120 | cd/m² | |
| Interface | 4-wire SPI, I2C | – | |
| Connector | 13 | pins | customizable |
| Size | 0.96 |
| Resolution | 64×128 |
| A.A.(mm) | 10.86×21.74 |
| Outline (mm) | 13.62×27.9 |
| Interface | SPI |
| COLOR | W |
| IC | CH1115 |
